16

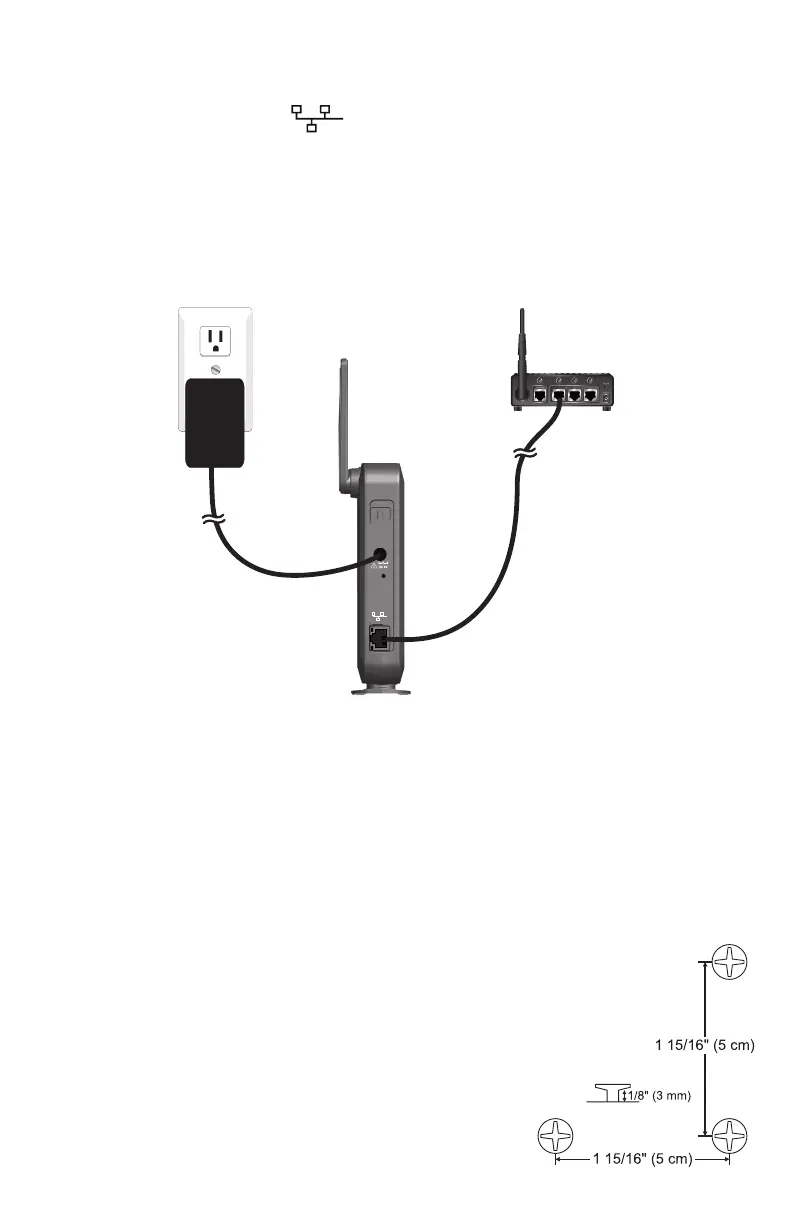

To install the base station:
1. Plug one end of the Ethernet cable into the Ethernet port on the rear of the
base station (marked by ), and plug the other end of the cable into your
network router or switch.
2. If the base station is not using power from a PoE-capable network router or
switch:
a. Connect a compatible VTech power adapter to the power jack.
b. Plug the power adapter into an electrical outlet that is not controlled by a
wall switch.
Use only
Supplied
Adapter
RESET
IMPORTANT INFORMATION
1. Use only a compatible VTech power adapter with this product. To order a
power adapter, visit our website at
businessphones.vtech.com or call 1 (888) 370-2006.
2. The power adapter is intended to be correctly oriented in a vertical or oor
mount position. The prongs are not designed to hold the plug in place if it is
plugged into a ceiling, under-the-table or cabinet outlet.
To mount the base station on a wall:
1. Install two mounting screws on the wall. Choose
screws with heads larger than 5 mm (3/16 inch)
in diameter (1 cm / 7/16 inch diameter maximum).
The screw centers should be 5 cm (1 15/16 inches)
apart vertically or horizontally.
2. Tighten screws until only 3 mm (1/8 inch) of the
screws are exposed.
