You can also enjoy high-denition programming by subscribing to a high-denition
cable service or a high-denition satellite service. For the optimum picture quality,
be sure to connect this device to your TV via the HDMI or component video (with
audio) input on the back of your LED TV.
HDMI Connection
75-ohm coaxial cable
Rear of TV
VHF/UHF/CABLE input
Connect the Power Cord
HDMI
HDMI1
HDMI2
RF IN
VGA IN
PC AUDIO IN
MINI AV OUT
Optional HDMI cable ( not included )
TV REAR PANEL
Digital set top box, gaming
console,or Blu-ray w / HDMI
interface

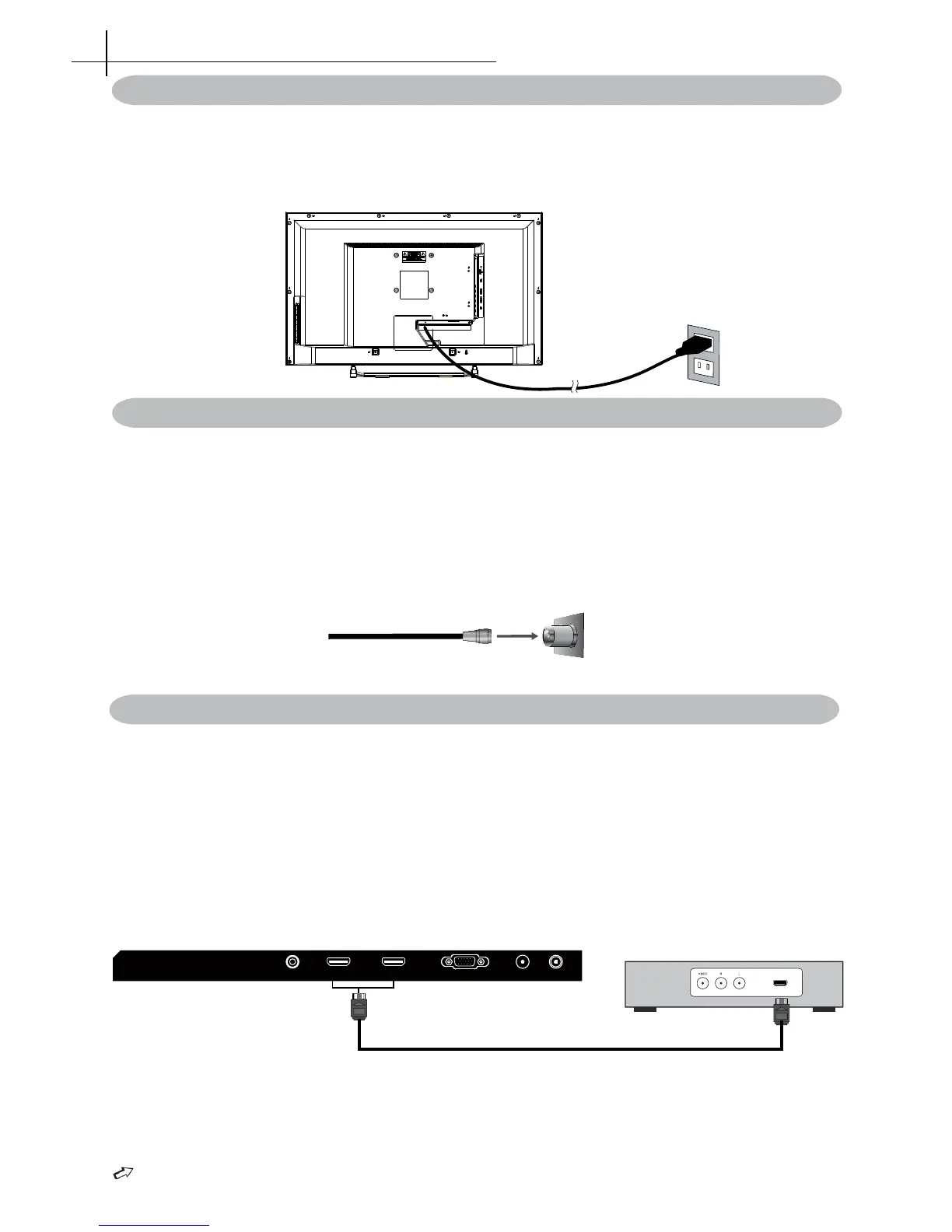

Connect Device Via HDMI interface
Cable or VHF/UHF
Typical wall antenna jack is used in apartment buildings, connect the antenna
cable, as shown in
below diagram (Please use the correct type of antenna cable).
We strongly recommend that you connect the antenna/cable input using a 75-ohm
coaxial cable (not supplied) to ensure the best picture quality.
Conect to Antenna or Cable
How to connect with power cord
Plug the power cord into the power outlet. Ensuring that the cord is tightly
connected at both ends.
It is strongly recommended for best broadcast reception, to use digital
cable, satellite, or a high quality roof top antenna.
Connect External Devices
5
To Next Page
