VWR RV2.5+ - Dimensions

VWR Rotary Vane Pump ver 1.3 23.11.2020
7.30 Dimensions

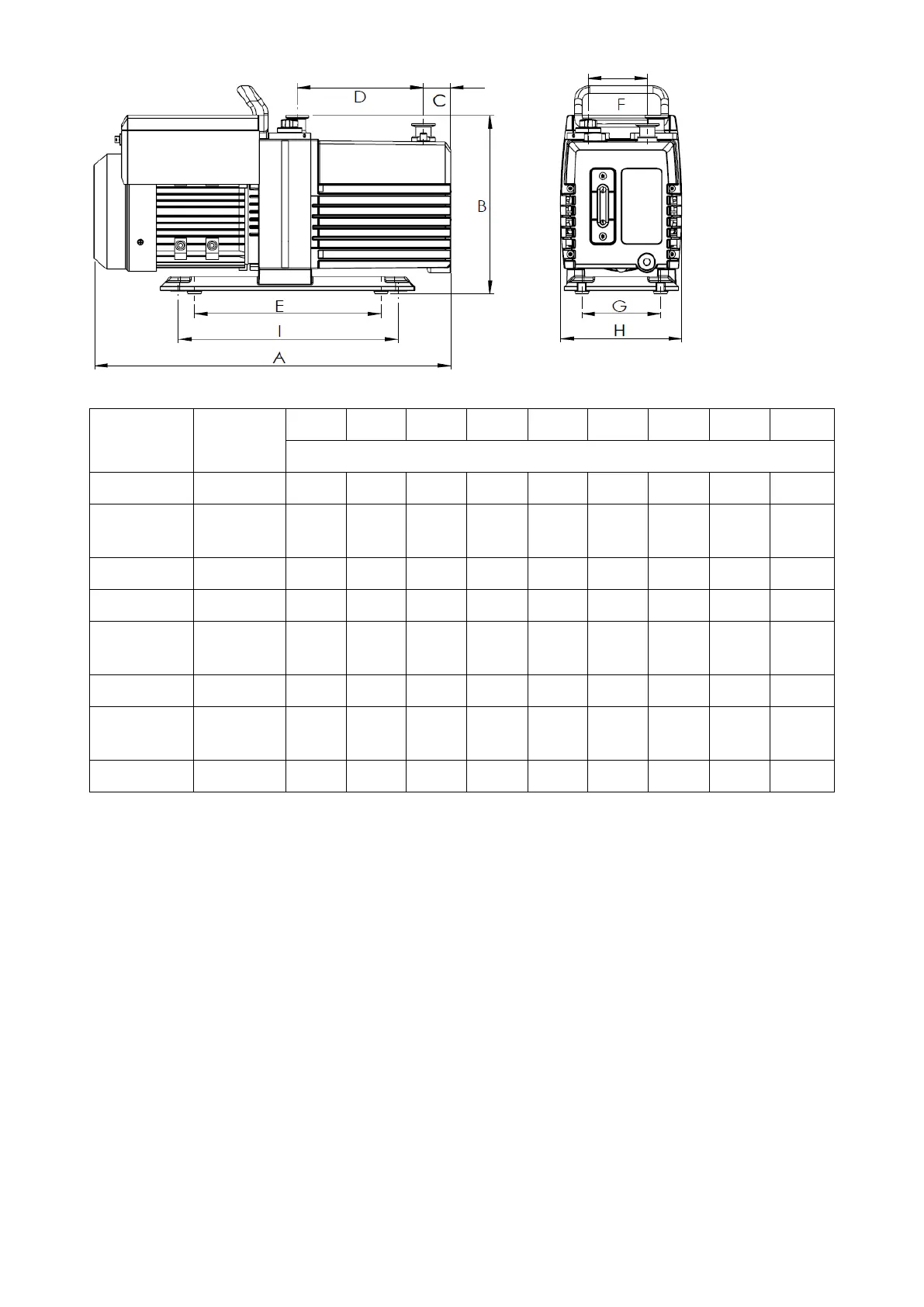

Fig. 5: Dimensions
Pump
models
Order no.
A
B
C
D
E
F
G
H
I
(in mm)
VWR RV2.5+
181-0571
384
183
30
135.5
184
60.5
90
138
224
VWR RV2.5+
with ACC
181-0572
384
183
30
135.5
184
60.5
90
138
224
VWR RV3+
181-0492
463
230
35.5
163.5
242
88.5
102
157
284
VWR RV6+
181-0493
463
230
35.5
163.5
242
88.5
102
157
284
VWR RV6+
with ACC
181-0504
463
230
35.5
163.5
242
88.5
102
157
284
VWR RV8+
181-0494
463
230
35.5
163.5
242
88.5
102
157
284
VWR RV8+
with ACC
181-0494
463
230
35.5
163.5
242
88.5
102
157
284
VWR RV18+
181-0573
569
281
50
225
286
118
150
206
330
