VWR RV2.5+ - Condenser Inlet

VWR Rotary Vane Pump ver 1.3 23.11.2020
12.20 Condenser Inlet
Technical
Data
Parameter
Data
Connecting flange
DN 16 KF
Condenser – basic body
Aluminium
Collector or condensate vessel
Borosilicate glass
Seals
FKM
Max. filling volume
380 ml
Order no. Condenser Inlet
181-7003
Area of
Application
The Condenser Inlet prevents condensates from the vacuum systems
penetrating into the rotary vane pump.
The horizontal arrangement of the separator alongside the pump prevents
fluids running back from the collector or condensate vessel into the pump.
Maintenance
Maintenance of the Condenser Inlet is limited to simply emptying the
collecting vessel.
Assembly –
Condenser
Inlet at Rotary
Vane Pump

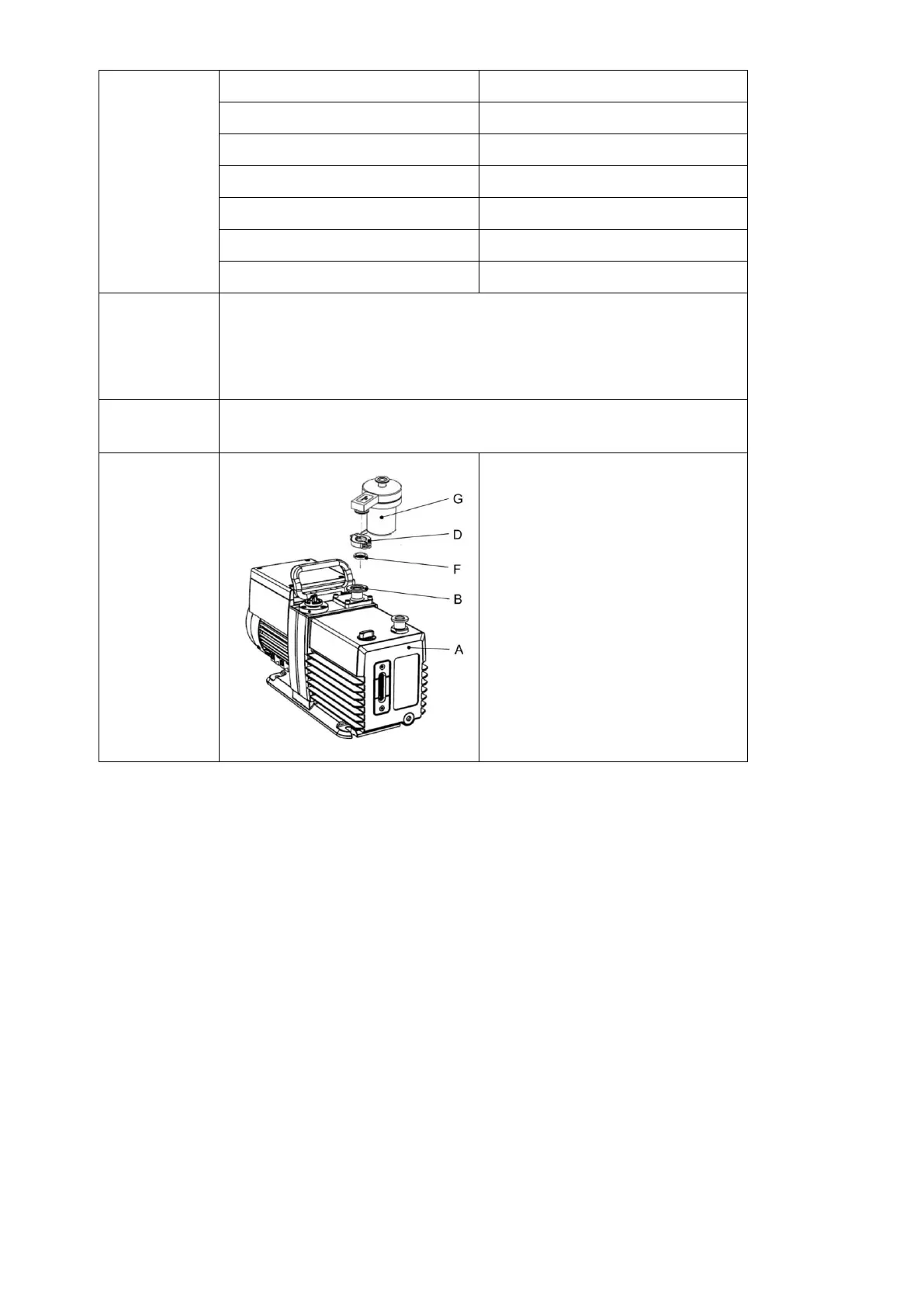

The Condenser Inlet (G) is flanged
using a normal clamping ring (D), a
centering ring with wire fabric and
an O-ring (F) are directly flange-
mounted onto the suction port (B) of
the rotary vane pump (A).
(connecting elements in DN 16 KF -
see data for ordering – 8.30 Oil Mist
Separator Exhaust)
