VWR RV2.5+ - Page 31

VWR Rotary Vane Pump ver 1.3 23.11.2020

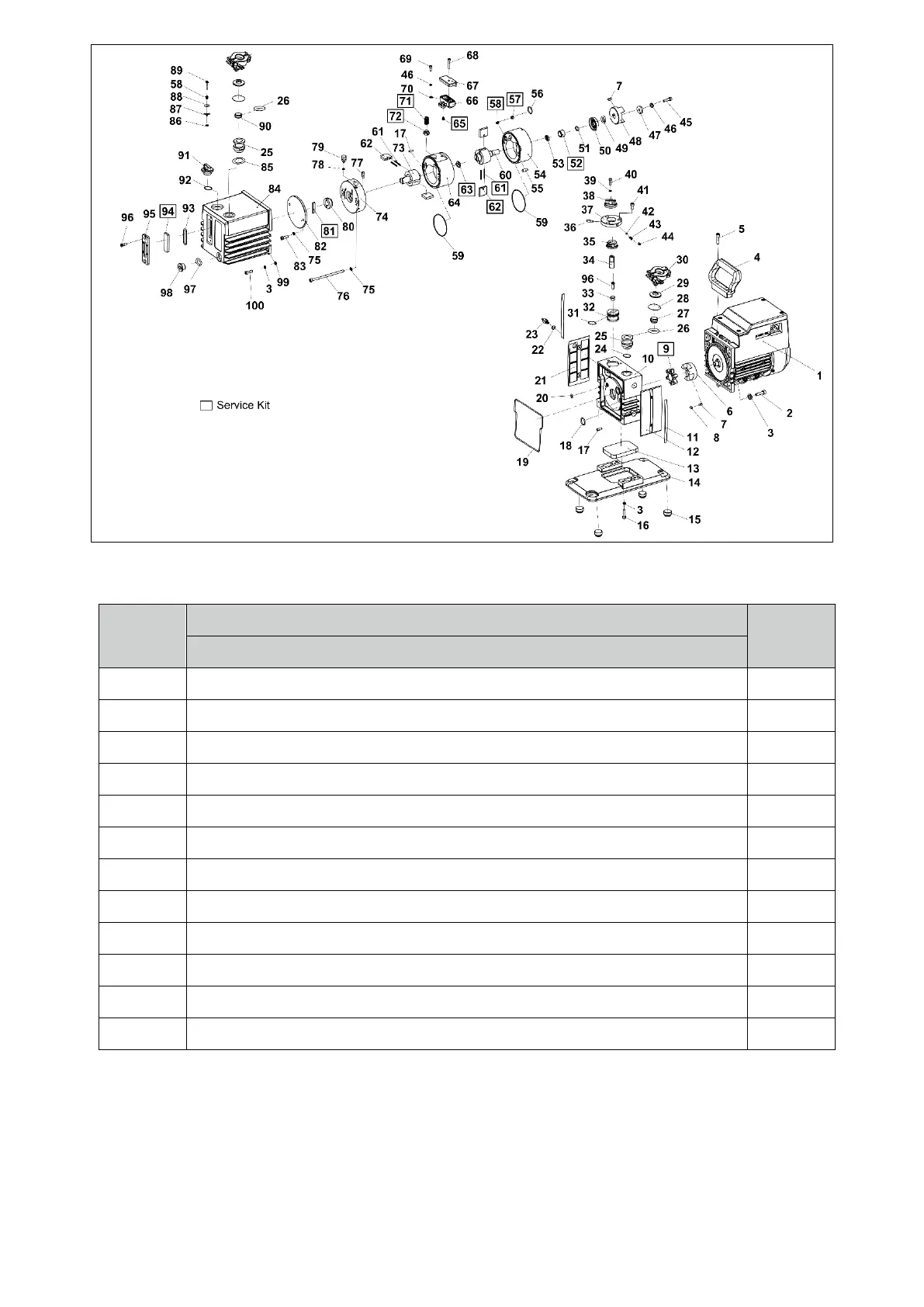

Fig. 10: Explosion view - Rotary vane pump with service kit – positions (RV2.5+)
Service kit item list for RV2.5:
Item no.
Description
Qty.
Consisting of:
9
Coupling
1
52
Bush
1
57
Gas Ballast Valve Head
1
58
Spring
1
61
Vane Spring
4
62
Fore Vane
2
63
Shaft Coupling
1
65
Screw
1
71
Spring
1
72
Gas Ballast Valve Head
1
81
Oil Pump Vane
1
94
Glass
1
