33373-001 Version A
Removal
1. With rear panel removed or with rear panel still installed, remove the 4 5/16
th
’s nuts from fan
assembly.
2. Slide the fan itself off of the four screws holding them in there place.
Installation
Follow removal process in reverse order.
3.16 Manifold Base Assembly
(P/N 16348)

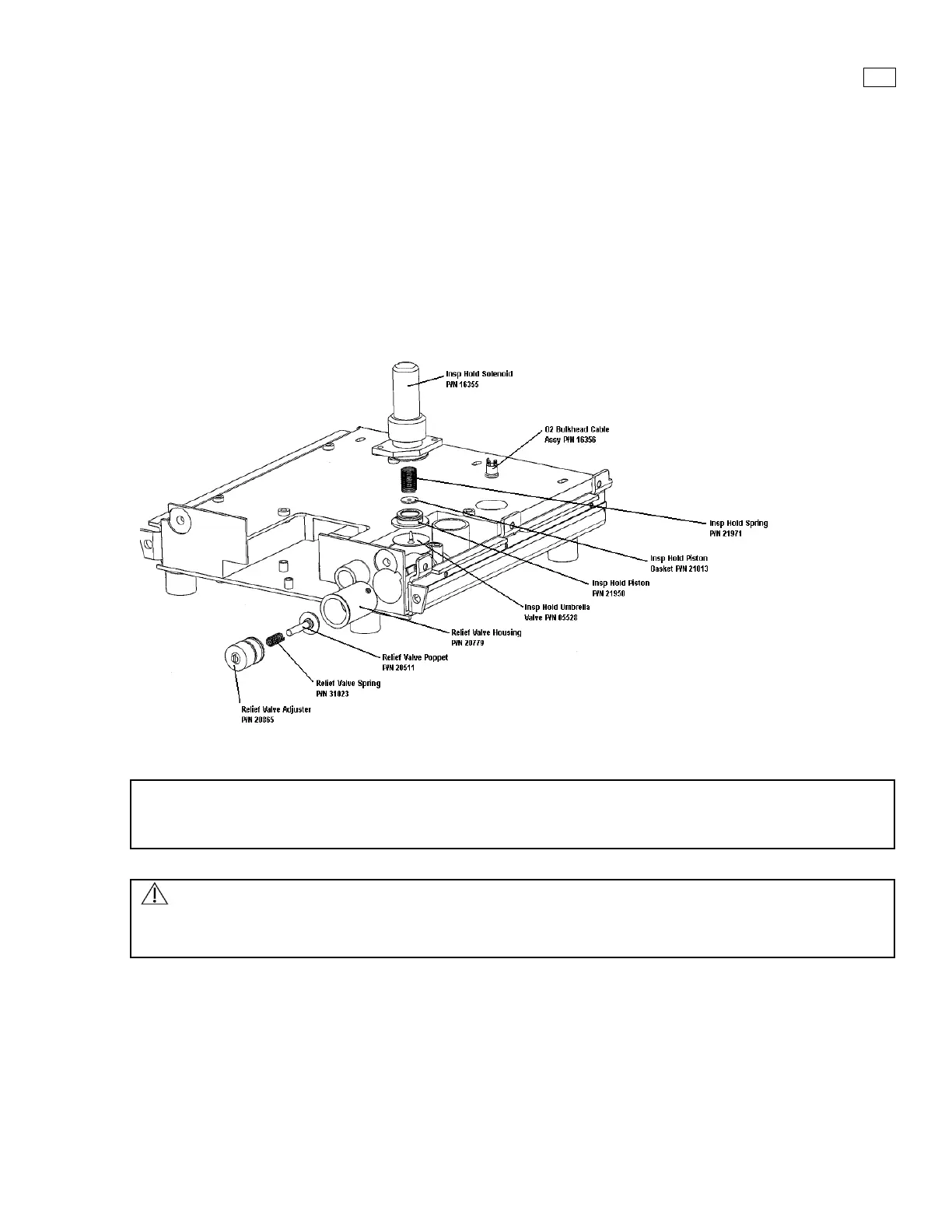

Figure 3-17. Manifold Base Assembly
NOTE
This manifold base is a complete assembly and can only be ordered as P/N 16348. It will come
from the factory completely tested with components as pictured.
CAUTION
Further disassembly of the manifold base is not recommended. If further disassembly is performed
there is no guarantee from Vyaire that the manifold will function properly
