Vyaire VELA - Calibration and Test Kit

6-2
Chapter 6: Calibration Procedure
33373-001 Version A
6.2 Calibration and Test Kit
NOTE
Before calibrating the internal transducers, run the performance test to confirm that calibration is
required. If the ventilator passes the performance tests calibration is not necessary.
6.2.1 Power Up Service Verification Tests
1. Remove the top cover and battery tray.
2. Locate DIP Switch pack at SW900 on top right of the Main PCBA.
3. Place switch #1 in on position and power vent on (Figure 6-3).
4. On the touch screen, press the Main Icon and note the drop down box appears.

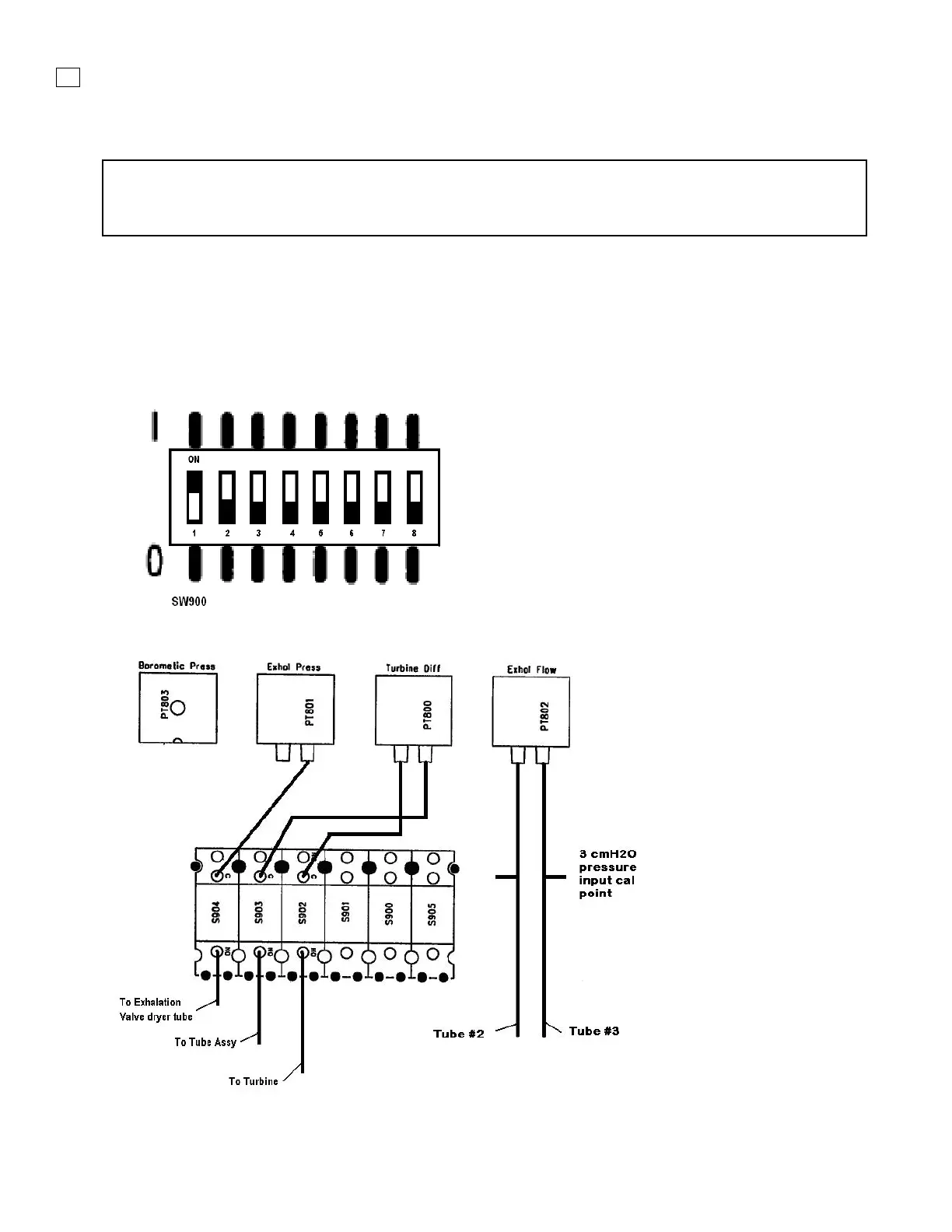

Figure 6-3. DIP Switch Pack (as pictured on PCB)
Figure 6-4. Transducer Configurations as Mounted on Main PCB
