W6 N 2000 Exklusive - Rear View

Rear view
Getting to know the machine
18
Manual • Sewing machine W6 N 2000 Exklusive W6 N 2000 Exklusive • 27/04/2018 • 1.0 • GBR
3.2 Rear view

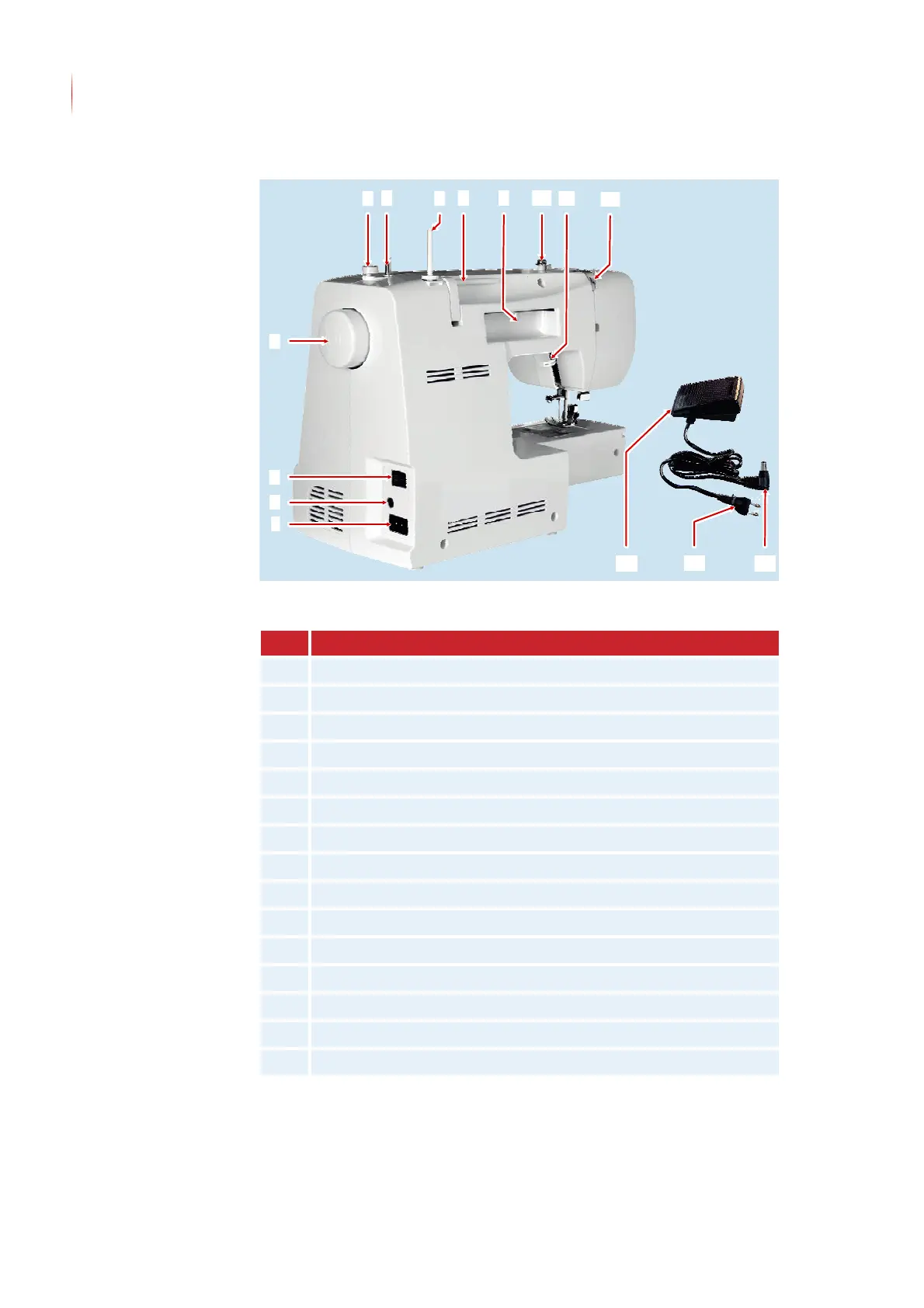

Components of the machine - Rear view
Parts of the machine
No. Designation
1 Mains and foot controller jack
2 Foot controller jack
3 On and off switch
4 Hand wheel
5 Bobbin winder stopper
6 Bobbin winder spindle (for winding lower thread only)
7 Spool pin, vertical
8 Spool pin, horizontal
9 Indented carrying handle
10 Thread guide to wind a W6 plastic bobbin
11 Presser foot lifter
12 Thread guide for sewing
13 Foot controller
14 Plug for foot controller
15 Foot controller plug
13 14 15
4
3
2
1
5 6 8 10
11
12
7
9
