3.3 View of the presser foot, automatic needle
threader and needle plate

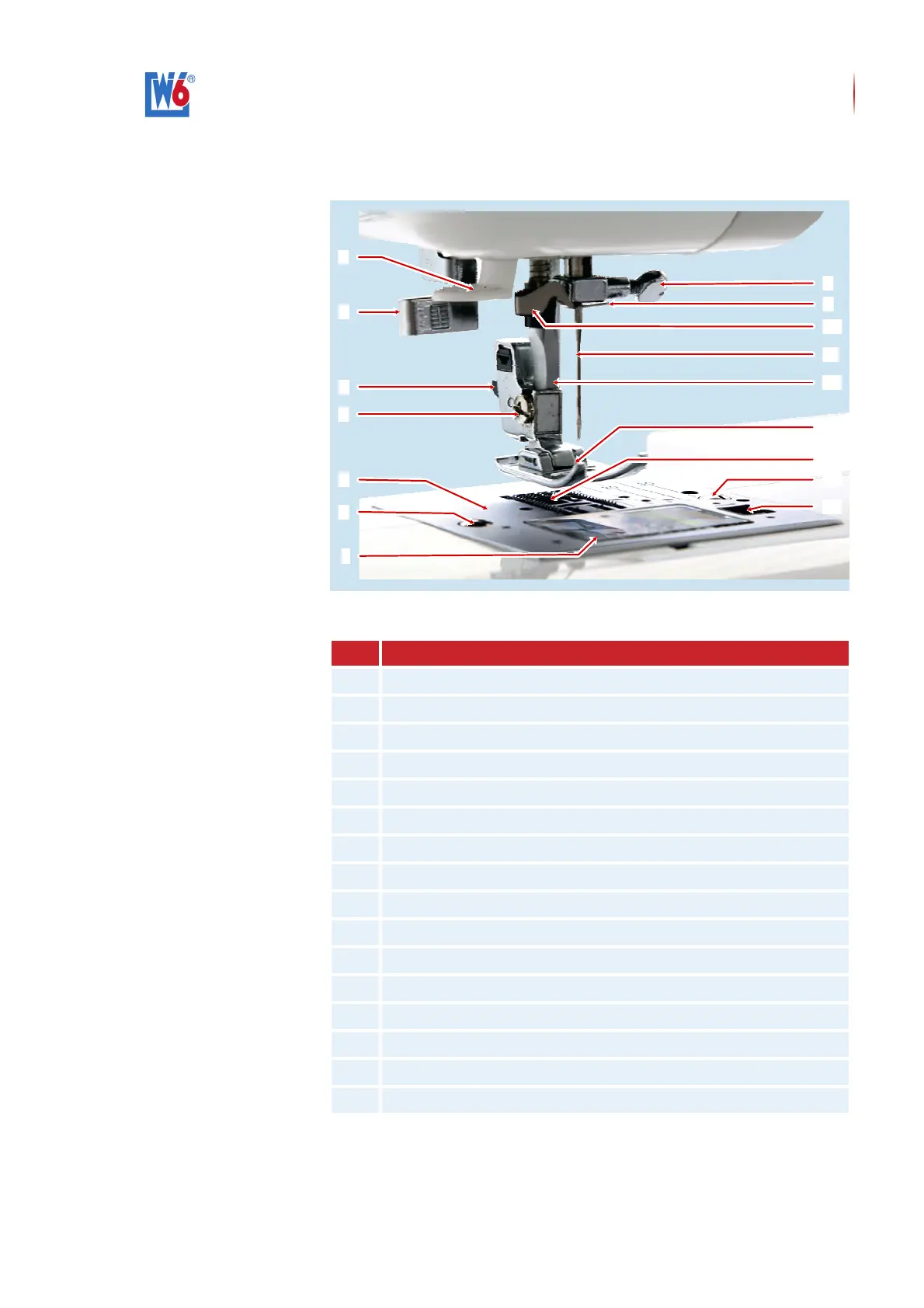

Components of the machine - Presser foot and needle plate
Parts of the machine
No. Designation
1 Transparent plastic bobbin cover
2 Screws for the needle plate
3 Needle plate
4 Presser foot clamp
5 Presser foot holder clamp (to change the presser foot)
6 Buttonhole sensor (always pull down if a buttonhole is to be sewn)
7 Lever for pulling down automatic needle threader
8 Needle clamp
9 Thread guide, bottom
10 Automatic needle threader
11 Sewing needle, installed
12 Presser foot holder
13 Presser foot
14 7-segment feed dogs
15 Screws for the needle plate
16 Opening mechanism for the bobbin cover (black)
