8 Appendix I
97
WABCO Maintenance Manual MM-0112 (Revised 07-18)
Figure 8.3
NOTE: Vehicle Ignition must be cycled and vehicle test driven over 4
mph (6.4 kph) to complete reset memorization.
Manual Reconfiguration
Refer to Table C and Figure 8.4 for information on manual
reconfiguration.
Table C:

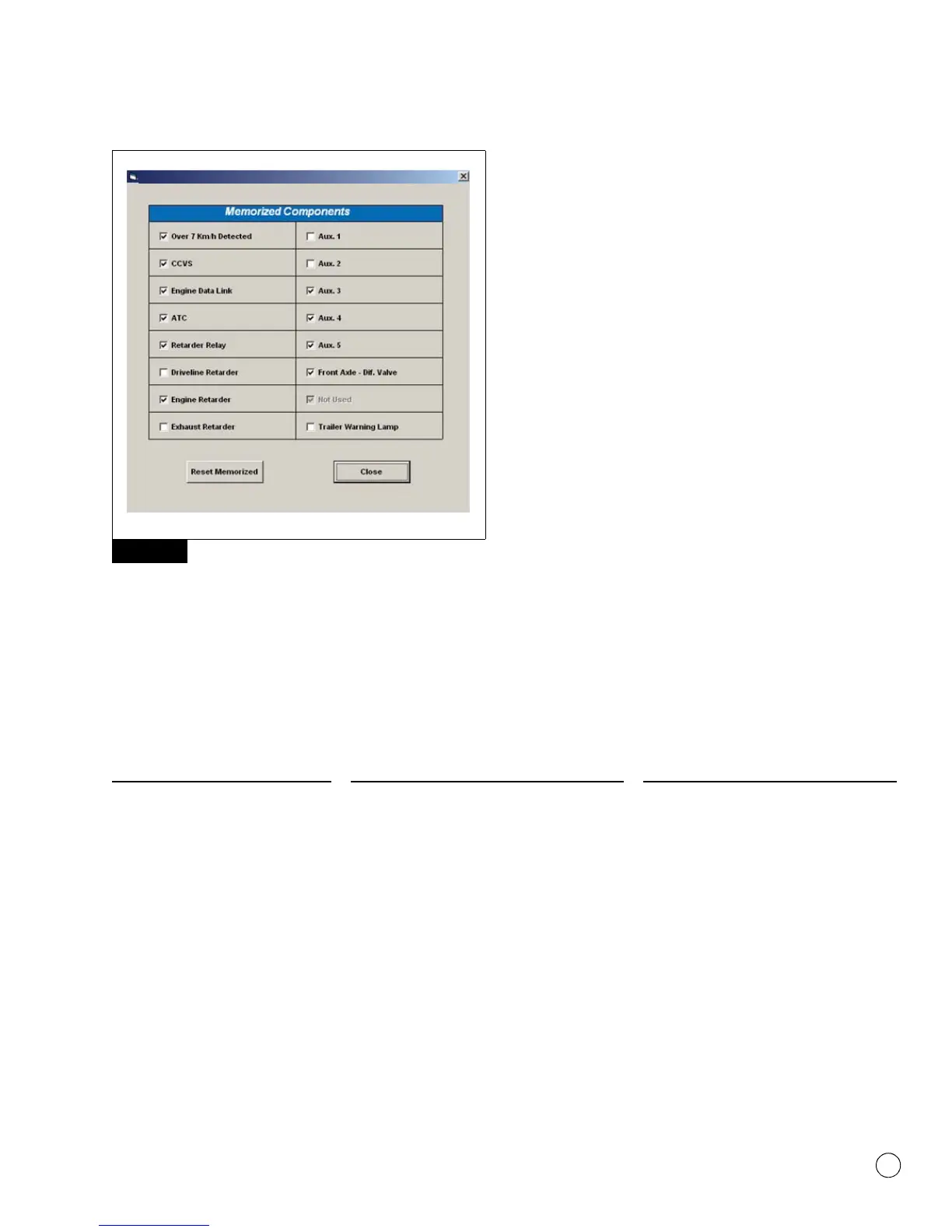

Figure 8.3
4010671a
WABCO Toolbox – Memorized Components
Action Result Reason
1. Turn the ignition ON.
2. Press and hold the blink switch
for at least three seconds.
NOTE: Do not hold this switch
longer than seven seconds.
The ABS lamp displays the ABS system
configuration code:
앫 One blink: 6S/6M 6X2
앫 Two blinks: 4S/4M
앫 Four blinks: 6S/4M
앫 Five blinks: 6S/6M 6 X4
NOTE: The ABS lamp may display eight quick
flashes before the system configuration code
begins.
Stored faults cleared, no active faults
present. Continue with reconfiguration.
NOTE: The reconfiguration procedure
cannot be conducted if there are active faults
present. These must be repaired before
proceeding with the reconfiguration.
