5.2.2 Separate valves for vehicles with a conventional braking system
OnvehiclesequippedwithLSVregulatorsbutwithoutanABSsystem,autonomousbrakingiseffectedinthesame
mannerasforvehiclesttedwithanABSbrakingsystem.Inthesystemdiagram(see4.2.1),onlythetwoABS
solenoidvalves(10)aremissing.
OnvehicleswithaconventionalbrakingsystemwithoutanLSVregulator,theoutputpressureisinsteadfedintothe
controlinputoftheconventionalrelayvalveviaatwo-wayvalve.

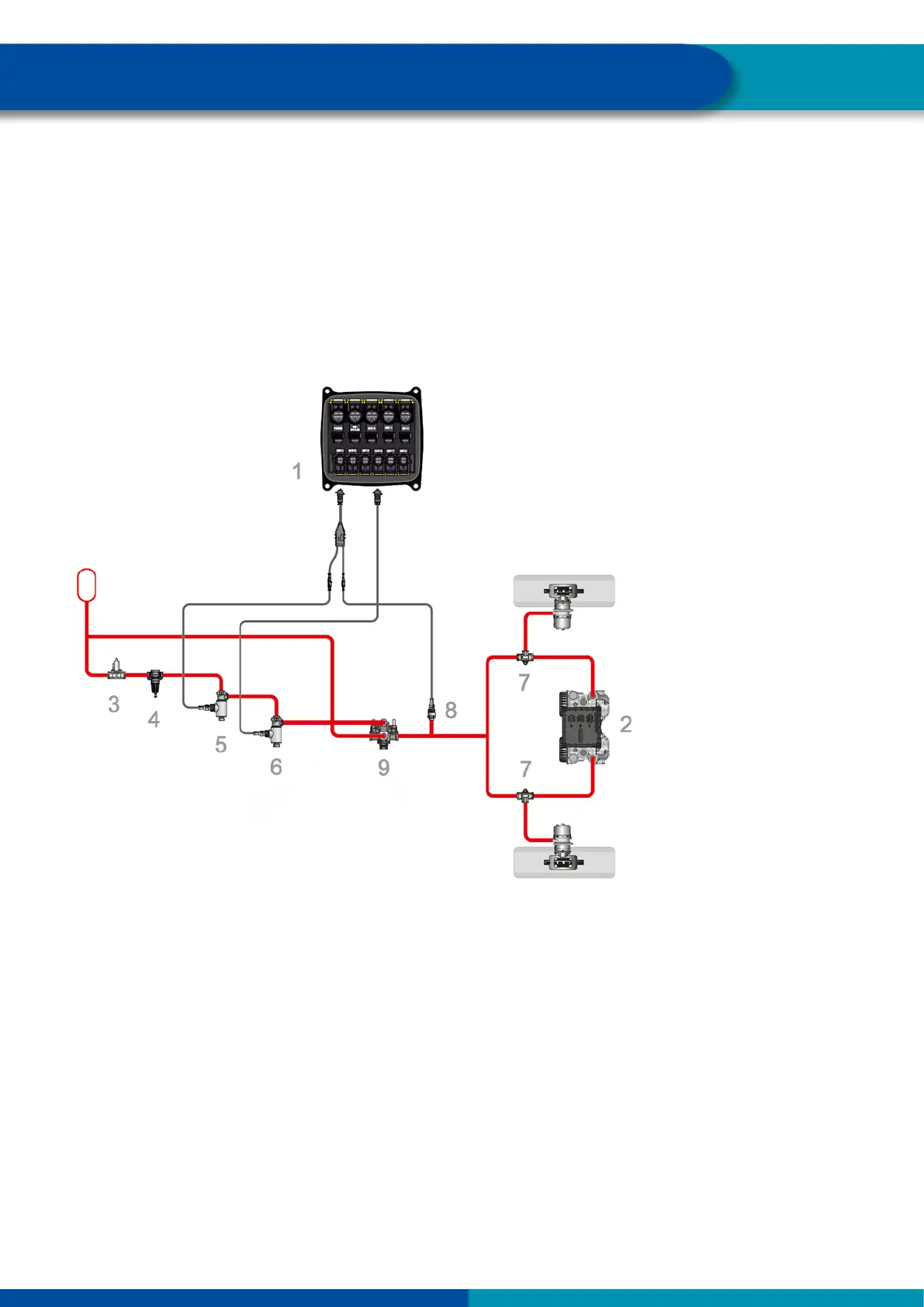

5.2.3 Separate valves for vehicles with an EBS braking system
Whenthedriveractuatesthebrakesignaltransmitter(notshownhere)onatowingvehiclewithanEBSbraking
system,thebrakingpressureisapplieddirectlytotheTristopcylindersfromtheoutputsoftheaxlemodulator(2)inthe
usual manner.
Required components: Overview
