WABCO TAILGUARD - Variant Connection Details

31
7.1 Variant: Only monitoring and warning

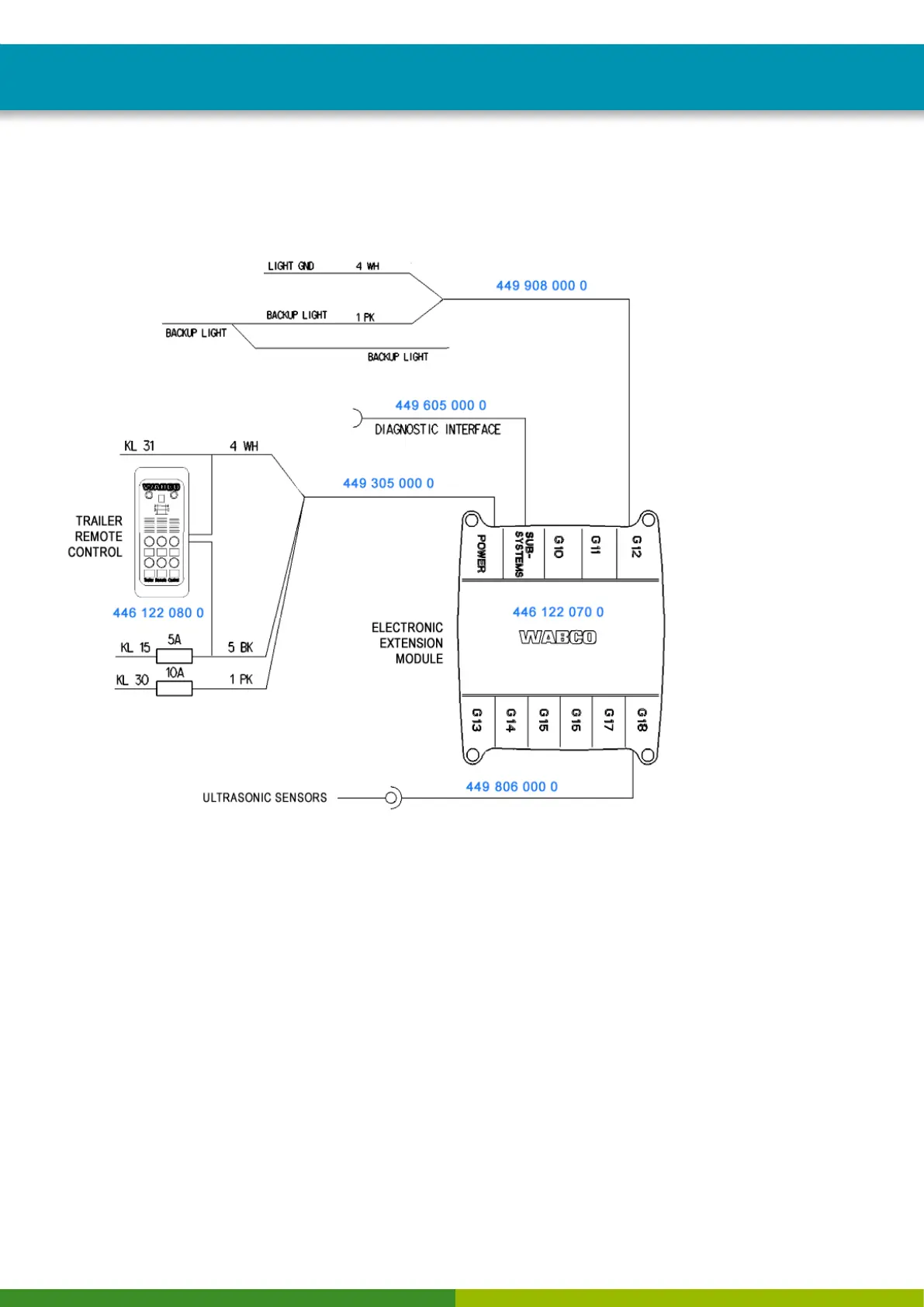

AsdescribedinSection5.1,boththeElectronicExtensionModuleandtheTrailerRemoteControlhavetobe
connectedtotherespectivevehiclecontactsintheelectronicscompartment.Hereisthedocumentationforeachof
theseconnections,togetherwiththeWABCOproductnumbers(blue)fortherequiredcomponents:
Theultrasonicsensorsareconnectedusingspecialsplitterandextensioncables.Thedocumentationfortherequired
cablesandtheproductnumberscanbefoundintheannexofthesystemdescriptionoftheTailGUARD™forTruck&
Bus,asshownforexampleinthecircuitdiagram8418023430,whichdescribesthisTailGUARD™variantinmore
depth.
ThisalsoshowshowotheroptionalcomponentscanbeconnectedtotheECU,namelyanotherbuzzer,anadditional
switchfordeactivatingthemonitoringoftheareabehindthevehicle,astatuslampforTailGUARD™,aswellasa
separatewarninglampforsignallingmalfunctionsoftheTailGUARD™system.
Connecting TailGUARD™ to the vehicle electrical system
