WABCO TAILGUARD - Interface and Compartment Connections

34
7.2.3 Interface connector
ThewiresofthecablescomingfromtheECUcanbedirectlyconnectedtotherespectivecontactsintheelectronics
compartment.
However,theinstallationwillbeconsiderablymoreexibleandclearerwhenusinganinterposedinterfaceconnector.

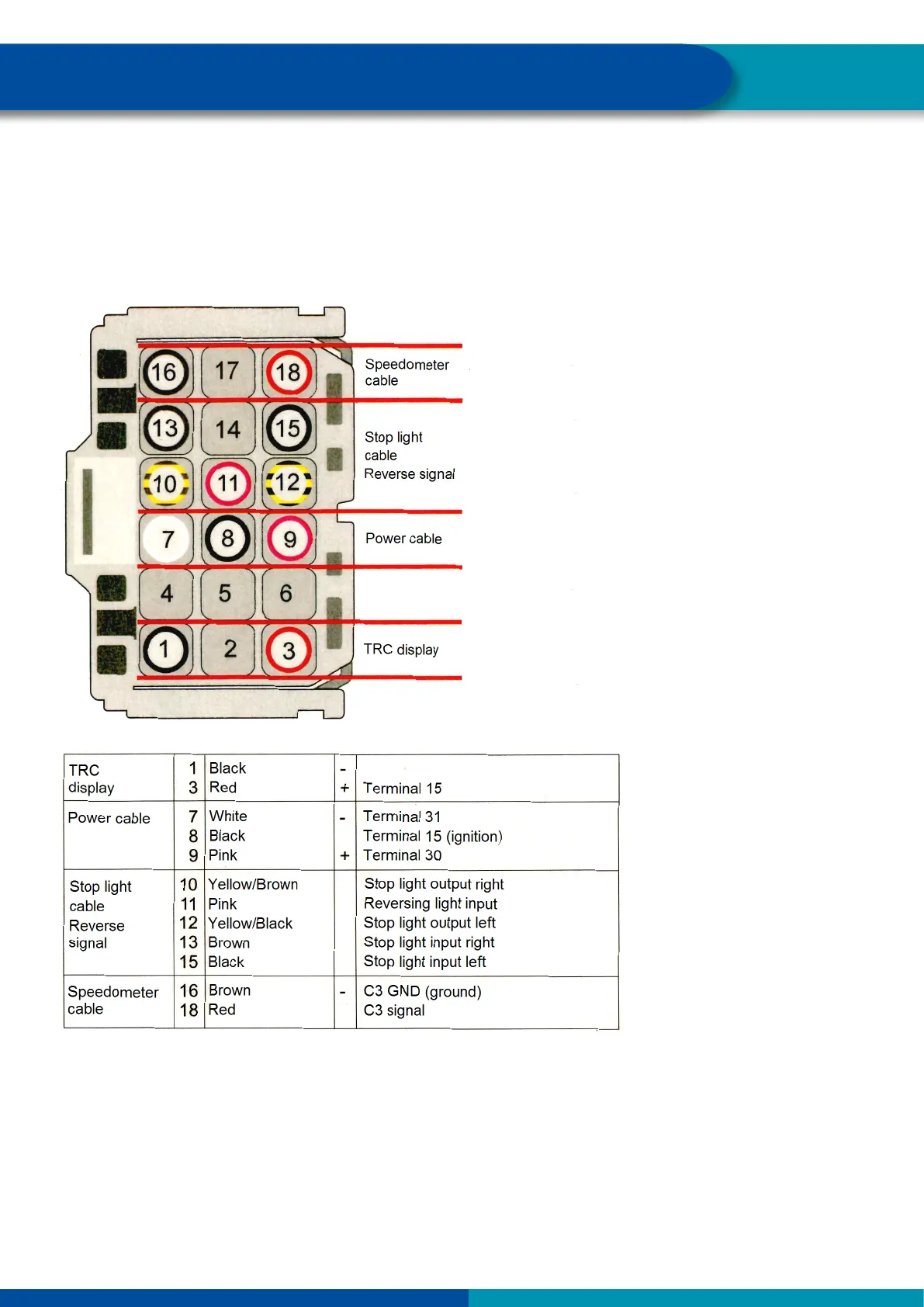

HereisanexampleforthepinassignmentofasuitableAMPplug:
Connecting TailGUARD™ to the vehicle electrical system
