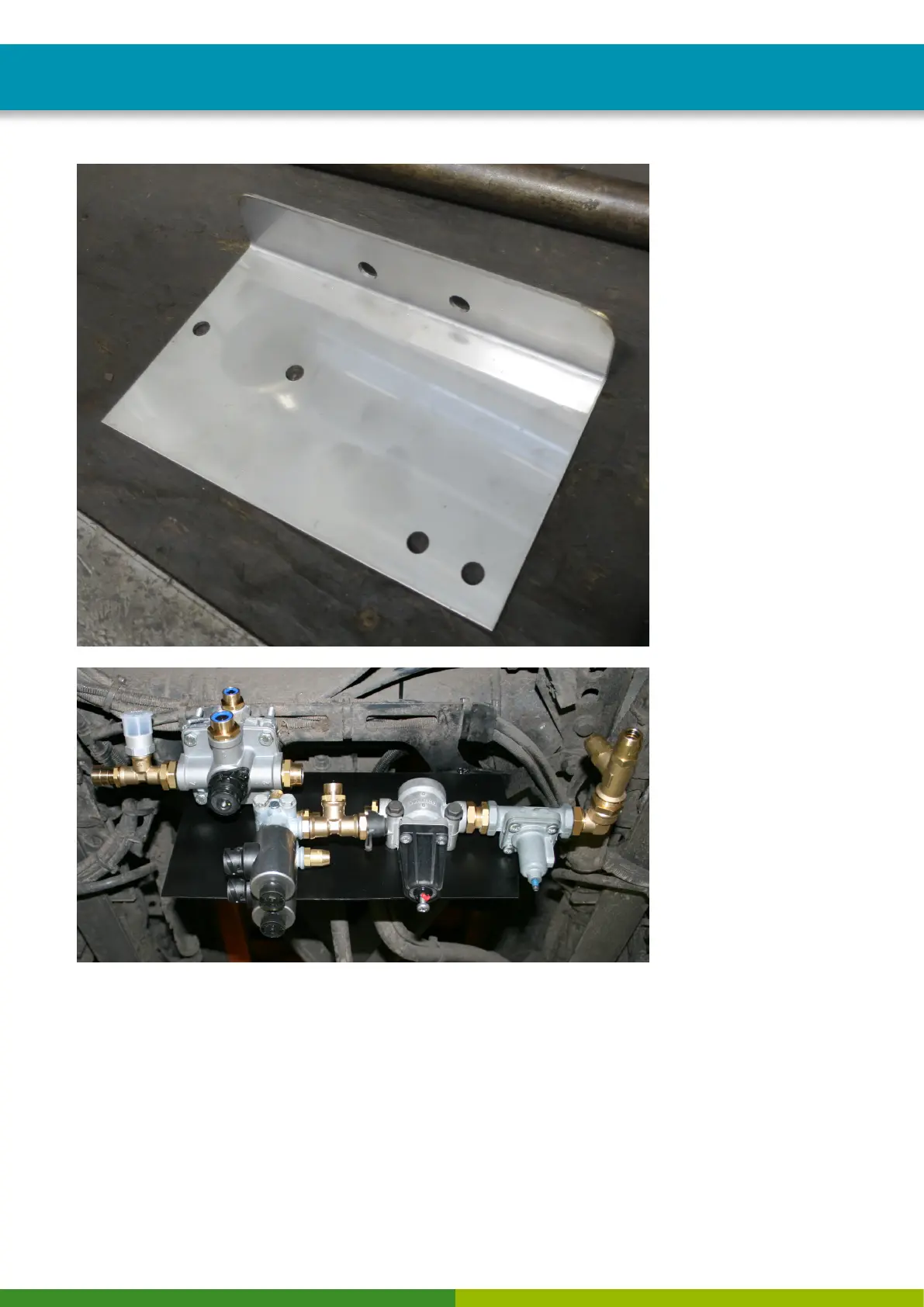

Installation of the separate valves
 Thetwosolenoidvalvesshouldbemounteduprightasshownhere.Theairbleedersoftheinstalledvalvesmust
pointtowardstheground.
 Theprescribednominalwidthsfortheconnectionsbetweenthepneumaticcomponentsmustbeadheredto.Some
connectinglinelengthsshouldalsonotexceedstipulatedmaximumlengths.Thisandfurtherinformationaboutthe
pneumaticpartofTailGUARD™canbefoundinSection7.7ofthesystemdescriptionforTailGUARD™forTruck&
Bus.
