CRT 36 Maintenance
4.6 Right-hand Control Arm Adjustment (Right or Left)
The arms should be set to be perfectly vertical. Should the arms come out of
adjustment, adjust as follows:
1. Loosen the jam nuts (d).
2. Drop the horizontal linkage (e) down to clear the bracket.
3. Shorten the linkage to move the control arms to the left.
4. Extend the linkage to move the control arms to the right.
5. After the control lever has been adjusted to the desired position, reassemble the
nut and the bolt (c) and tighten the jam nuts (d).
4.7 Mounting Float Pans

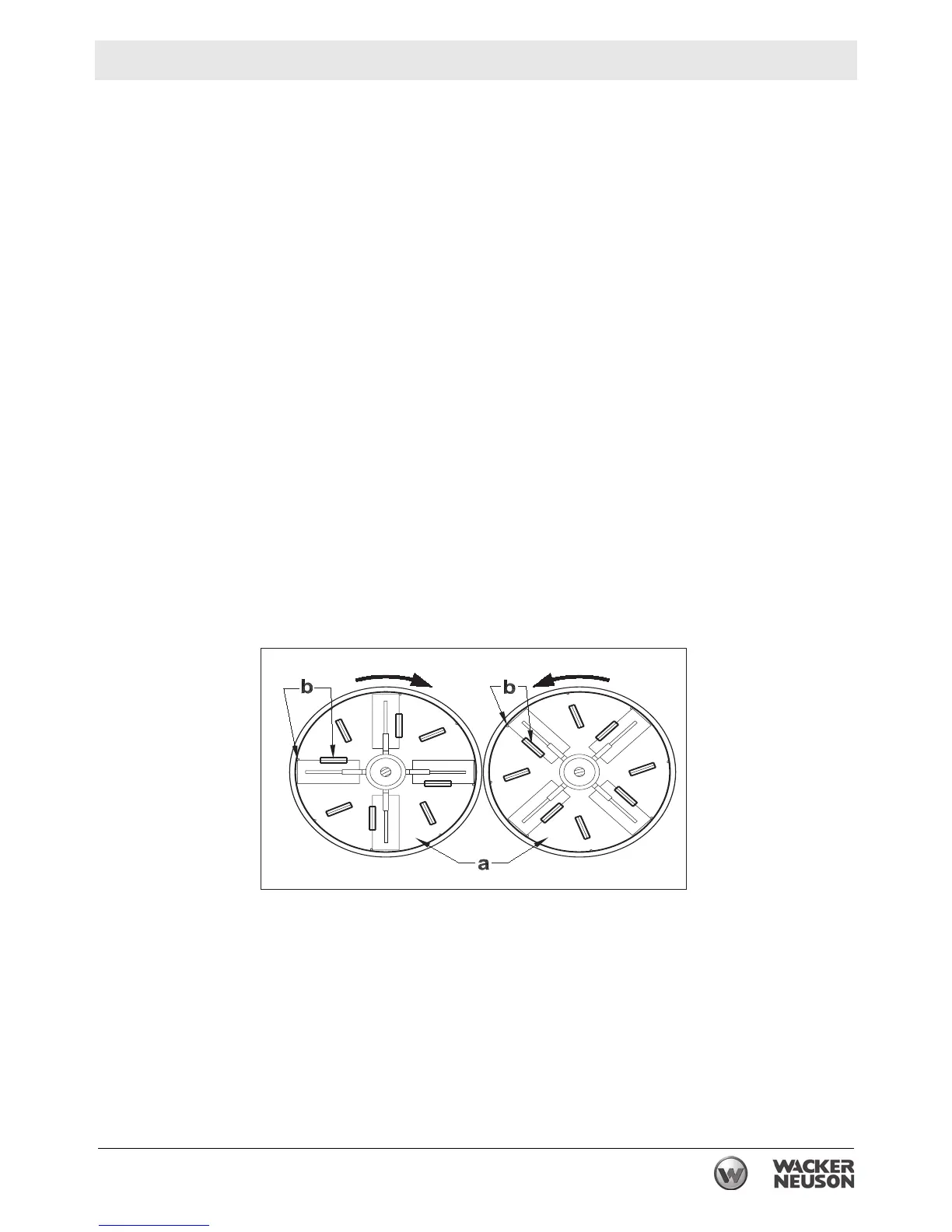

Certain applications may require the use of float pans. Optional float pans (a) are
available, and are used with the machines in the non-overlapping configuration
only.
To mount float pans:
Lift trowel off the ground with the engine off and position the pan against the
blades. Turn pan either to the right or left to engage clip angles (b) as shown.
Remember, the right-hand trowel blades turn counterclockwise; the left-hand
blades turn clockwise.
wc_gr000151
