9.1 Transporting the machine
1. Place the machine upright on a flat surface.
2. Switch off the engine.
3. Fasten suitable lifting tackle to the central suspension (2) provided.
4. Lift the machine evenly with the hoist.
5. Carefully set the machine down on a suitable transport vehicle.
6. Vertically set guide handle head and lock into place.
7. If you transport the vibrating plate compactor on the cargo area of a vehicle,
strap it down securely at the protective frame (3).

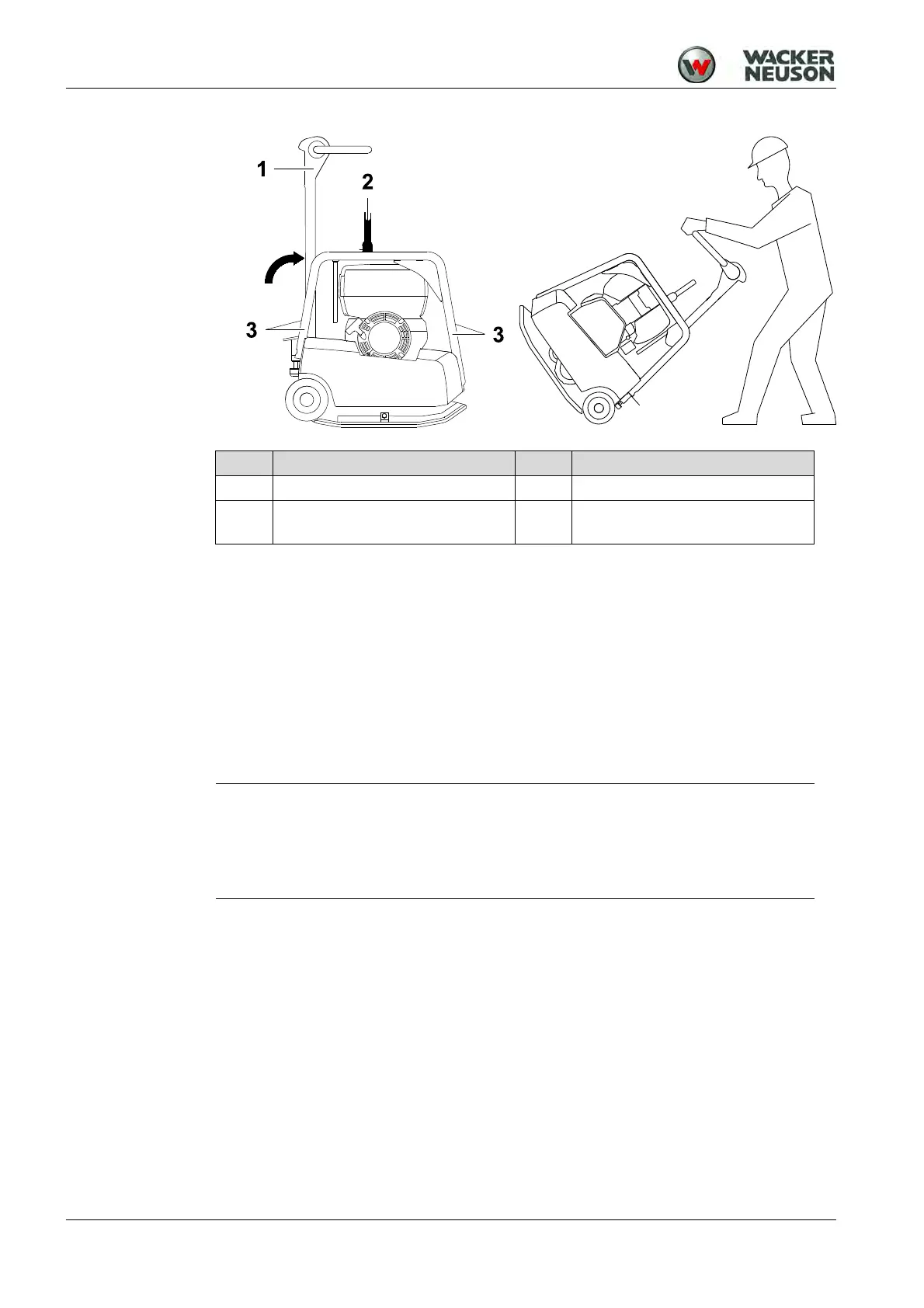

Item Designation Item Designation
1 Guide handle 3 Tie-down lugs (protective frame)
2 Central suspension (attachment
point)
NOTICE
If the engine is running, engine lubrication cannot be ensured in the transport
position. This can cause serious engine damage.
There is also a danger that oil may leak out of the engine crankcase breather.
When using the integrated driving mechanism, you must turn off the engine.
