7 Components and operator's controls
100_0202_cp_0004.fm 21
7 Components and operator's controls
7.1 Components
Center pole
The optimal working height of the center pole can be adjusted by adjusting the threaded spindle.
Central lifting point
The central lifting point is used to lift the machine. This is found in the center of gravity of the machine.

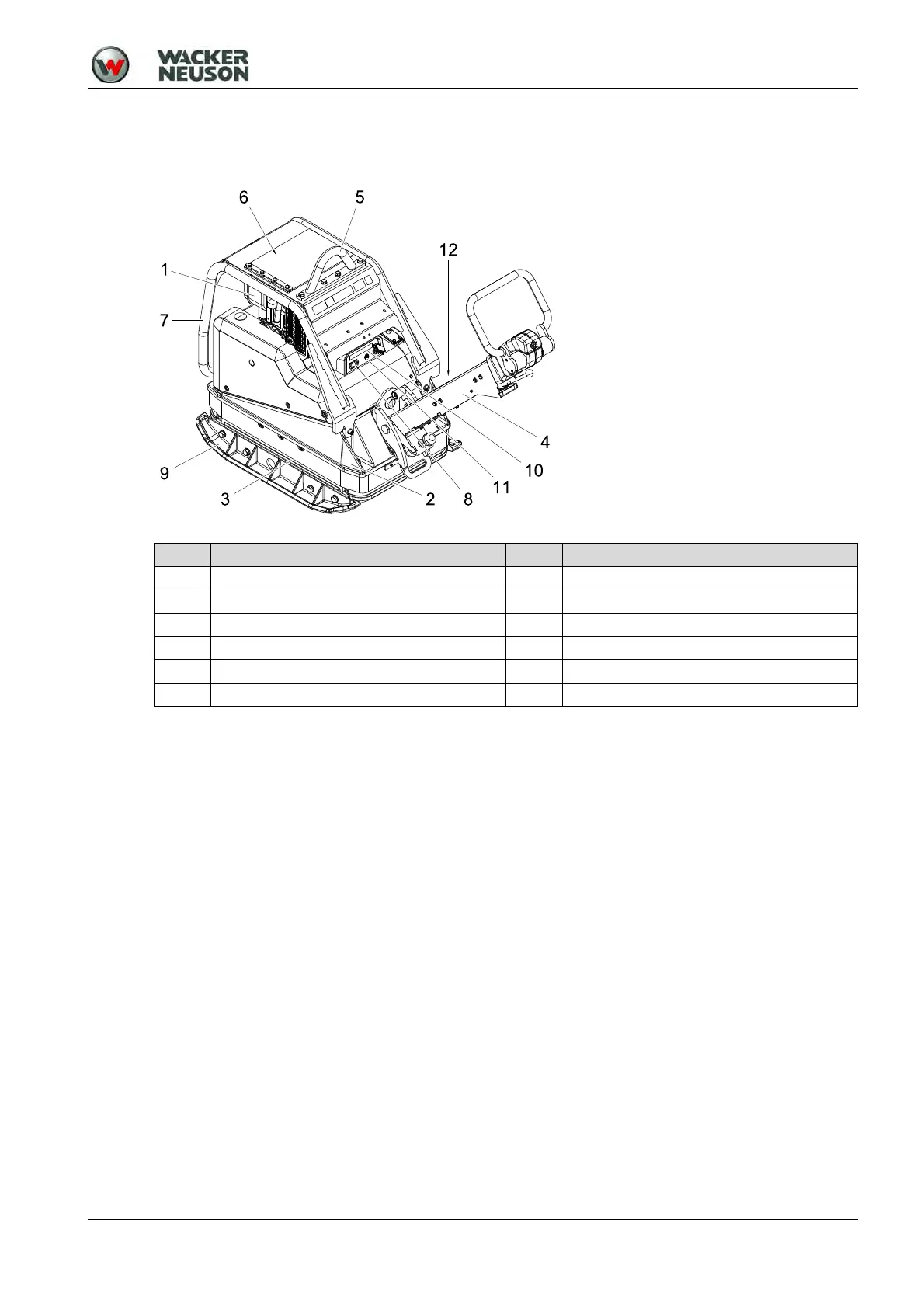

Item Designation Item Designation
1 Drive motor 7 Protective frame
2 Upper mass 8 Operating hour meter (optional)
3 Base plate 9 Extension plates
4 Center pole 10 Compatec – compaction display (optional):
5 Central lifting point 11 Control lamp operation
6 Fuel tank 12 Nameplate
