7.2 Operator's controls
Always keep the display and operator's controls on the machine clean, dry, and free of oil and grease.
Operator's controls, such as the ON/OFF switch, throttle control handles, etc. may not be locked,
manipulated or changed without permission.
Control handle
The control handle is used to continuously regulate the speed and travel direction.
Throttle lever
The speed of the drive motor can be varied remotely operated on the gas regulating lever.
Decompression lever
The decompression lever may only be actuated to start the machine.
Jump start pin
The jump start pin facilitates connecting the jumper cable when jump starting.
Handle center pole lock
The handle center pole lock is used to release the center pole so that it can be returned to working
position.
Threaded spindle
The threaded spindle is used to set the optimal working height of the center pole.

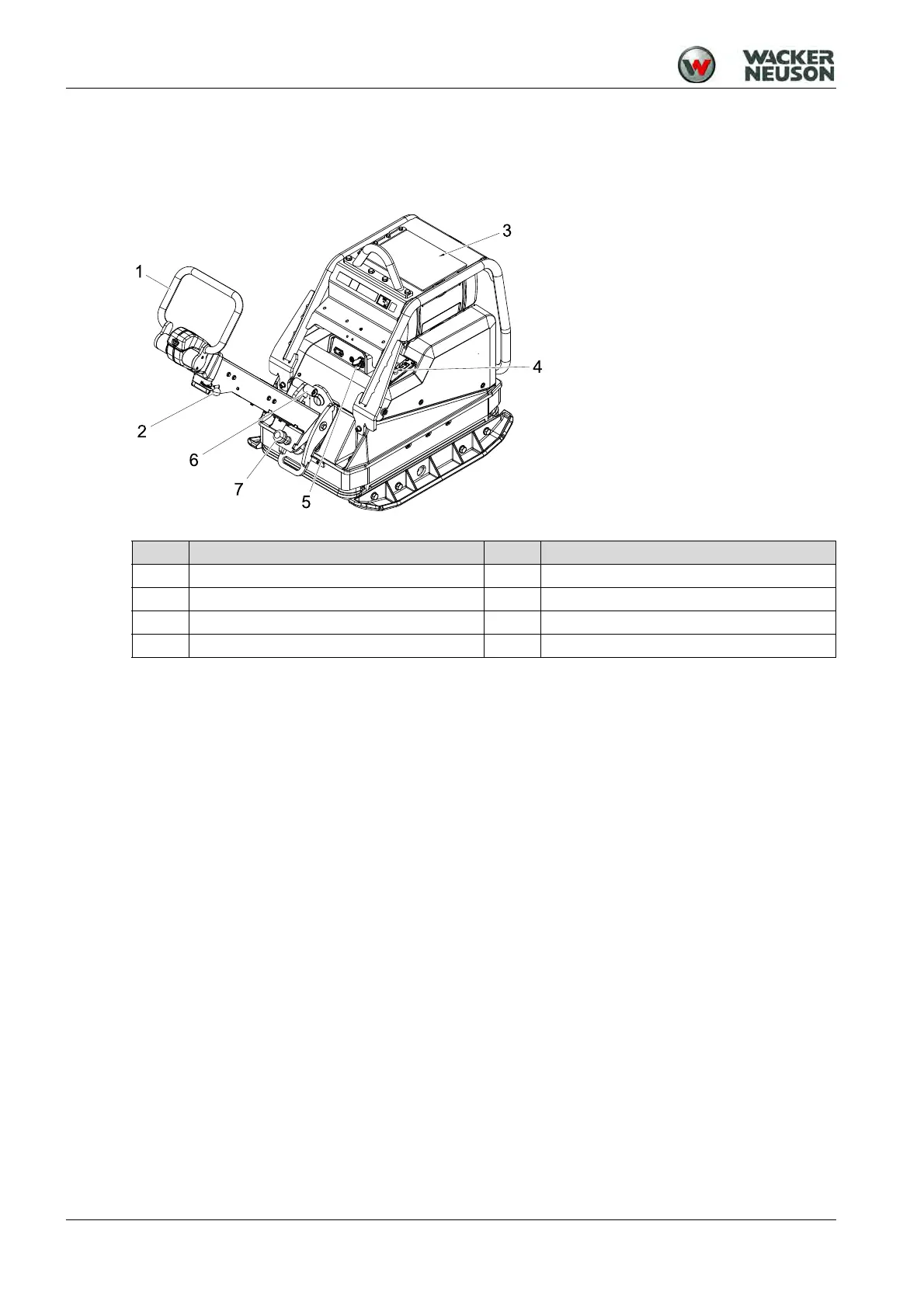

Item Designation Item Designation
1 Control handle 5 Ignition lock
2 Throttle lever 6 Handle center pole lock
3 Decompression lever 7 Threaded spindle
4 Jump start pin
