Foreword 1

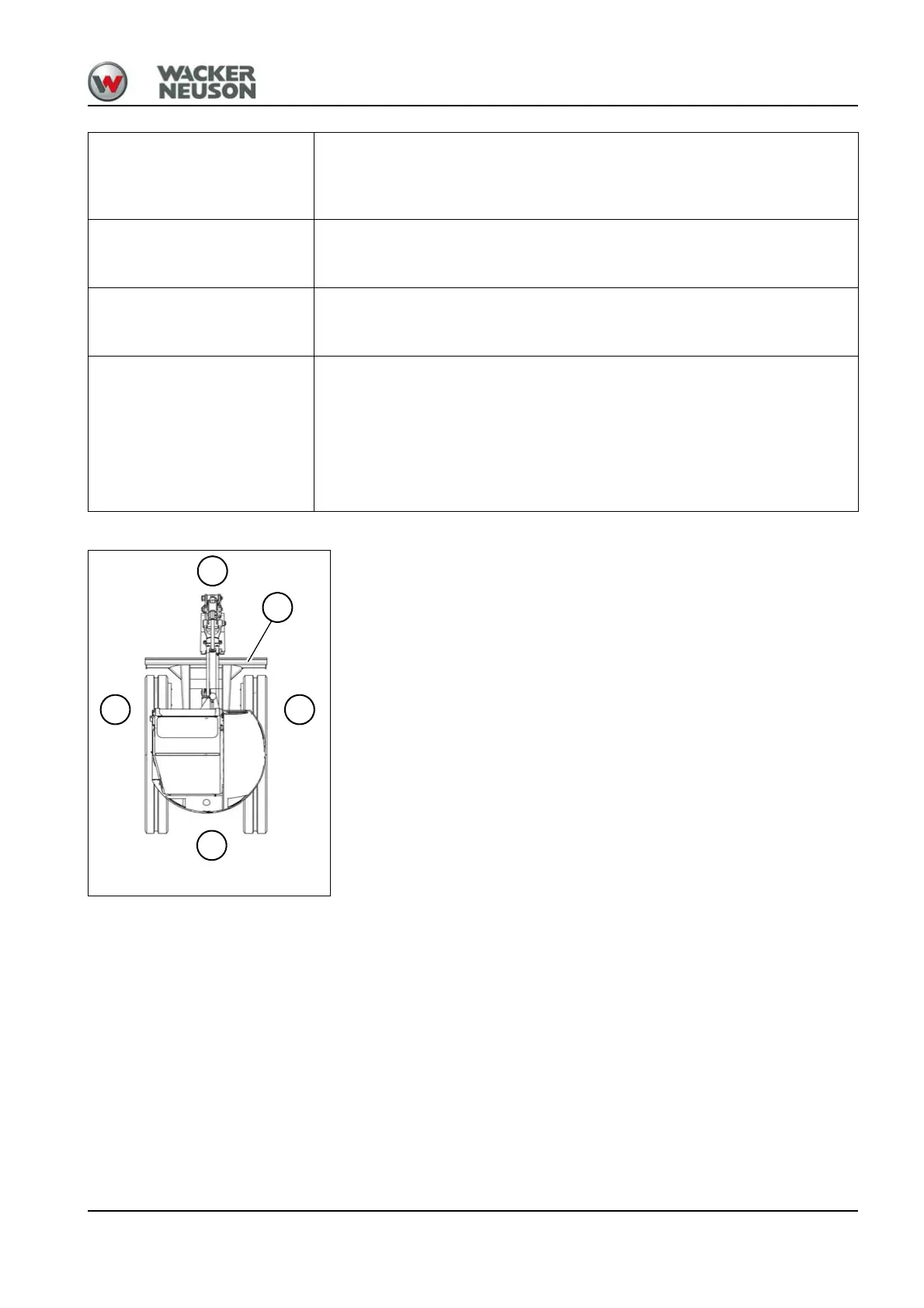

Right/left/front/rear
These terms are used from the view of an operator in the cabin if the front
of the cabin faces toward the stabilizer blade A.
• 1: left
• 2: right
• 3: front
• 4: rear
EU Stage V/Tier 4
Depending on the attachments, the vehicles can satisfy various exhaust
norms. If necessary (e.g. during operation), engine versions are described
separately. EU Stage V and Tier 4 are examples. Other exhaust norms could
also be described in the operator’s manual.
Load diagram
Specifies the maximum load at a given boom extension with which the upper
carriage may be rotated by 360° and the excavator may travel in creep gear
with the stabilizer blade raised without tipping over.
Loading weight
The actual weight of the vehicle at the beginning of transportation. This weight
refers to vehicles which are equipped exclusively with options approved by
Wacker Neuson.
Additional control circuits
Additional control circuits required for certain attachments.
• AUX I: auxiliary hydraulics (for example for hydraulic hammer or offset
bucket)
• AUX II: 3rd control circuit (for example for universal grab)
• AUX III: for example Powertilt
• AUX IV: hydraulic quickhitch (for example Easy Lock)
• AUX V: oscillating grab
