5 Operation
Machine travel on slopes
Uphill and downhill (Boom downhill side)
• Raise the boom 20-30 cm (8-12 in) off the ground and align it at the
center.
• Do not exceed the maximum angle of inclination of 30°.
Uphill traveling (Boom uphill side)
• Raise the boom 20-30 cm (8-12 in) off the ground and align it at the
center.
• Do not exceed the maximum angle of inclination of 15°.
Lateral slope travel
• Raise the boom 20-30 cm (8-12 in) off the ground and align it at the
center.
• Do not perform machine travel on slopes with a lateral angle of incli-
nation over 15°.
Operating with lateral slope
In case of a lateral slope, pile up the material to create a horizontal, firm
and level floor area.

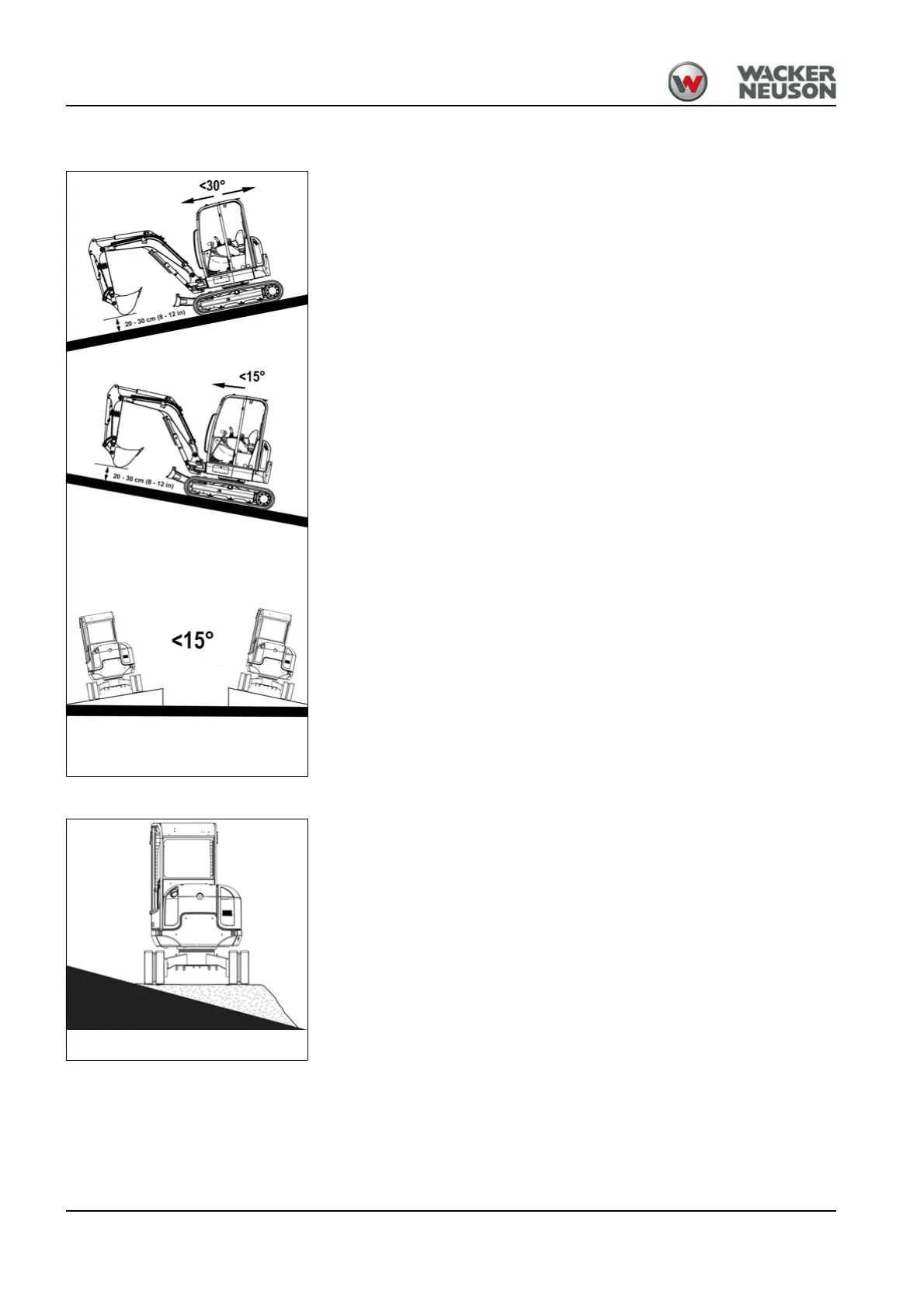

Fig. 129 (symbolic representation)
Fig. 130 (symbolic representation)
