Swiveling dozer blade
Danger of accident by an activated floating position.
The dozer blade cannot support the vehicle if the floating position is
activated. This can cause serious injury or death.
► Deactivate floating position before operating the boom.
Precise grading work can be carried out in the floating position.
Swiveling the boom
Fold the pedal cover forward.
Stabilizer blade Position
Raise Pull lever A backward
Lower Push lever A forward
Swivel left Push lever A to the left
Swivel right Push lever A to the right
Enable the floating
position
Push lever A all the way forward through the
resistance. The lever must lock into place
Disable the floating
position
Push lever A into the neutral position through
the resistance

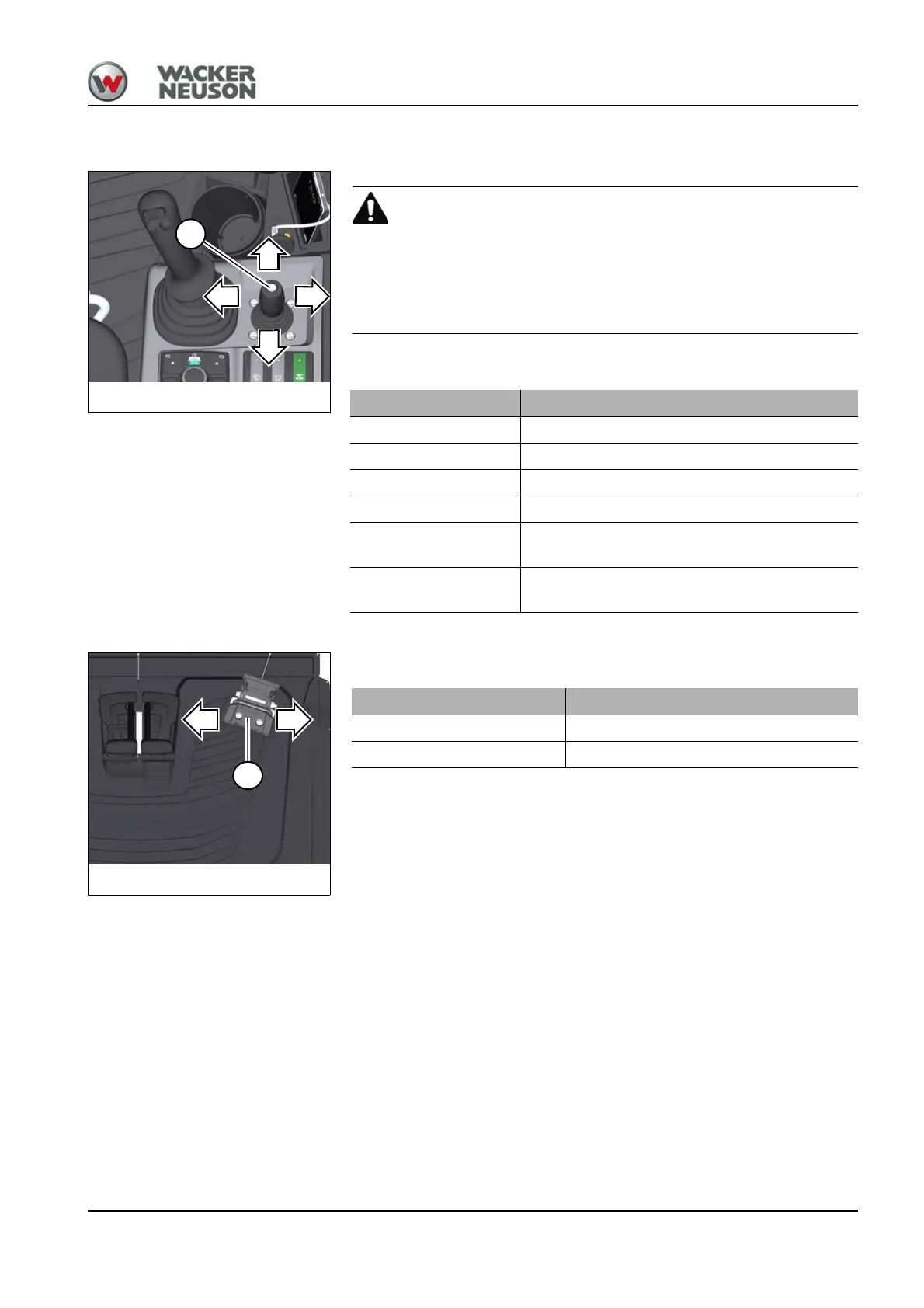

Fig. 152 Swiveling the boom
A
Boom Operation
Swivel to the left Actuate pedal A to the left
Swivel to the right Actuate pedal A to the right
