BA E19 en* 1.0 * E19_10_510.fm 5-43
Operation 5

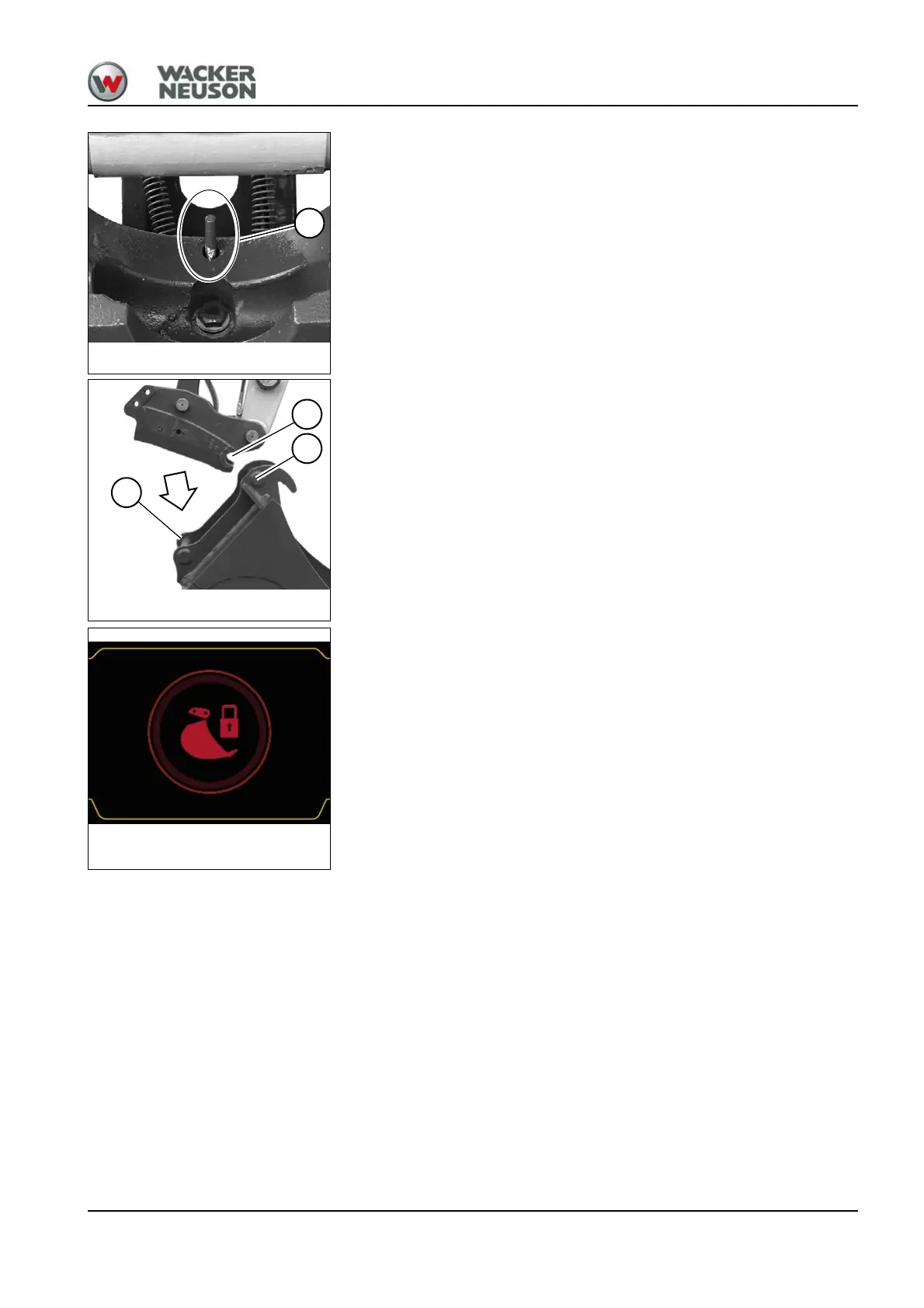

➥ Check pin D must be fully extended.
4. Hook up the quick coupler system E in bolt F of the attachment
receptacle.
5. Extend the bucket cylinder so that pin G of the attachment touches the
quickhitch.
6. Check whether the attachment touches the quick coupler system with
bolt G.
7. Move the attachment inward completely.
8. Press switch B upward.
➥ The quickhitch closes.
➥ The symbol Hydraulic quickhitch disabled appears for a few
seconds and the buzzer does not sound any more.
