Transportation 6

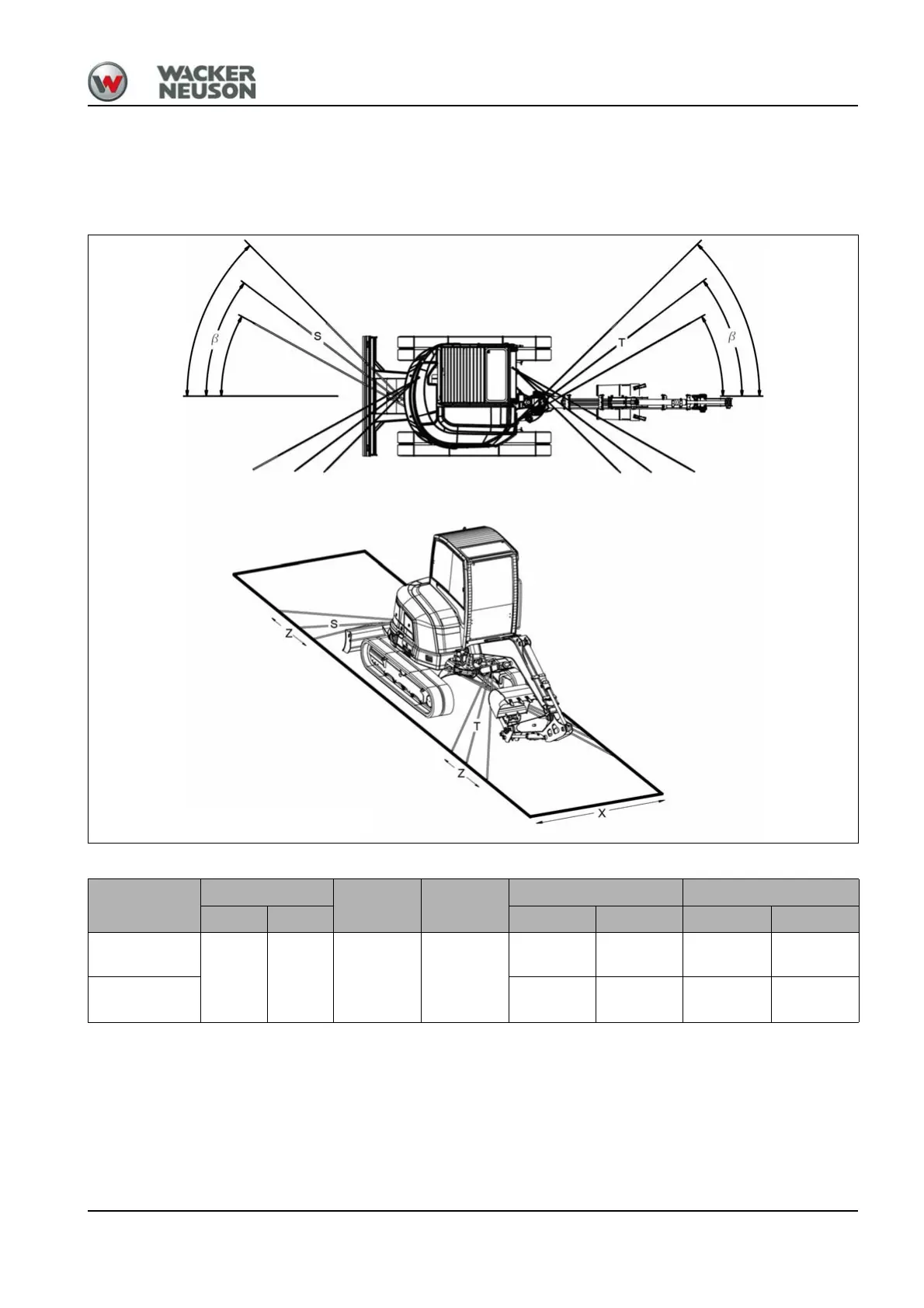

Specifications for lashing
The two lashing units S at the rear and the two lashing units T at the front
of the vehicle must cross each other. The length dimensions of the lashing
units S and T resulting from the angle b are listed in the following table.
vehicle
Angle β
1
X
2
Z
3
S T
min. max. min. max. min. max.
ET42
29° 45°
2400 mm
(95 in)
1200 mm
(47 in)
2147 mm
(85 in)
3090 mm
(10'-2'')
2395 mm
(94 in)
3340 mm
(10'-12'')
EZ50
2183 mm
(86 in)
3106 mm
(10'-2'')
2414 mm
(95 in)
3354 mm
(11'-0'')
1. Angle between the lashing unit and travel direction
2. Maximum lateral distance between the tie-down points on the loading area
3. Distance between the tie-down points on the loading area
