Introduction 3

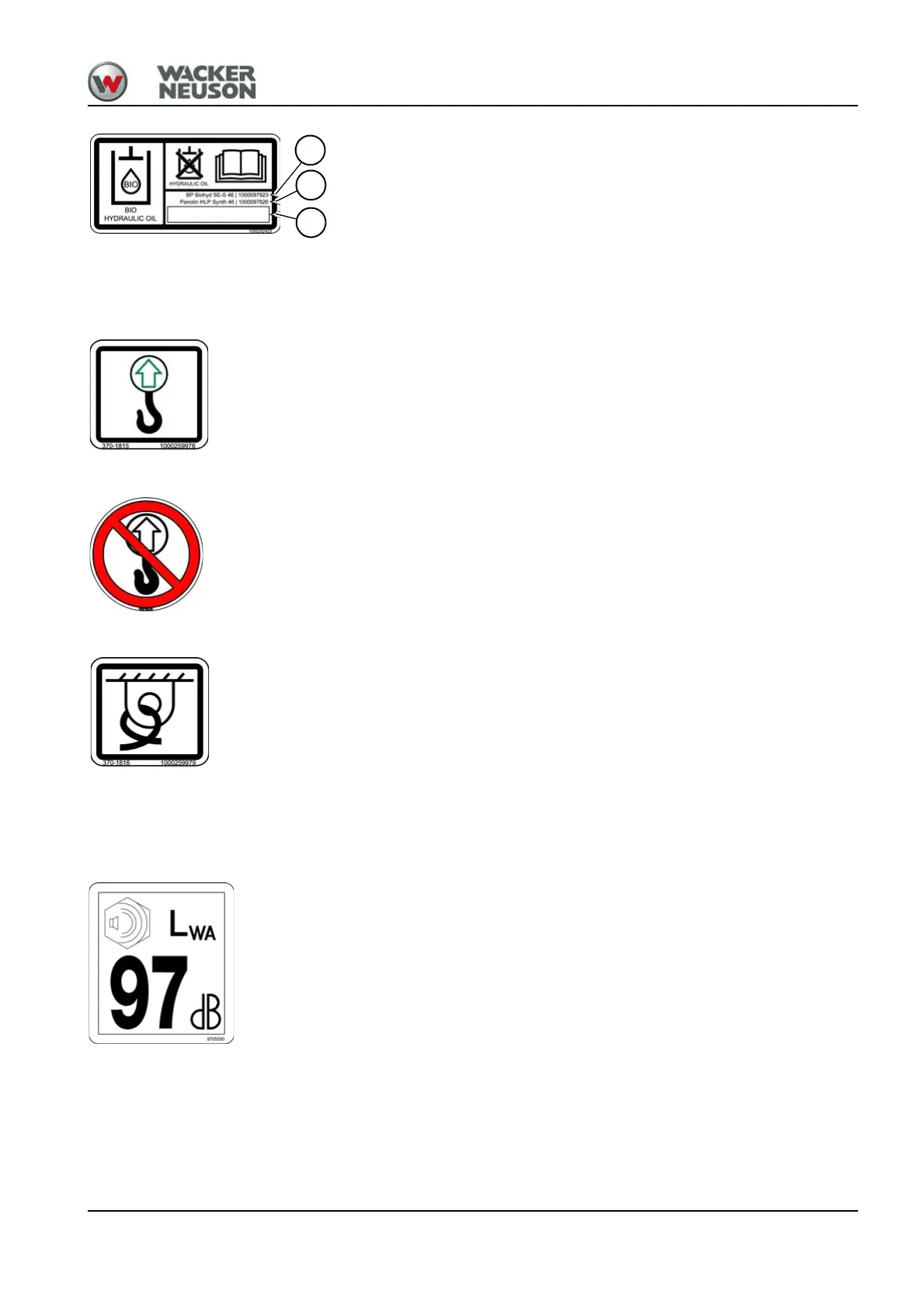

Meaning (option)
The reservoir contains biodegradable hydraulic oil.
This label is notched on the side depending on the biodegradable
hydraulic oil used.
1. BP Biohyd SE-S 46
2. Panolin HLP Synth 46
3. Other biodegradable hydraulic oil
Position
Next to the filler neck of the hydraulic oil tank
Meaning
Lifting eye
Position
On the left and right side on the lifting arm
Meaning
No lifting lug
The vehicle should not be lifted at this eyelet.
Position
At the top left and right canopy
Meaning
Tie-down point for tying down the machine
Position
Per two labels:
• Front of travel gear
• Rear of travel gear
• Inside of travel gear
• Chassis front
• Chassis rear
• Fixed dozer blade
Meaning
Indication of sound power level produced by the vehicle.
L
WA
= sound power level
Position
At the front left of the chassis
Fig. 26
1
2
3
Fig. 27
Fig. 28
Fig. 29
Fig. 30 (symbolic representation)
