4-22 BA E19 en* 1.0 * E19_10_400.fm
4 Putting into operation

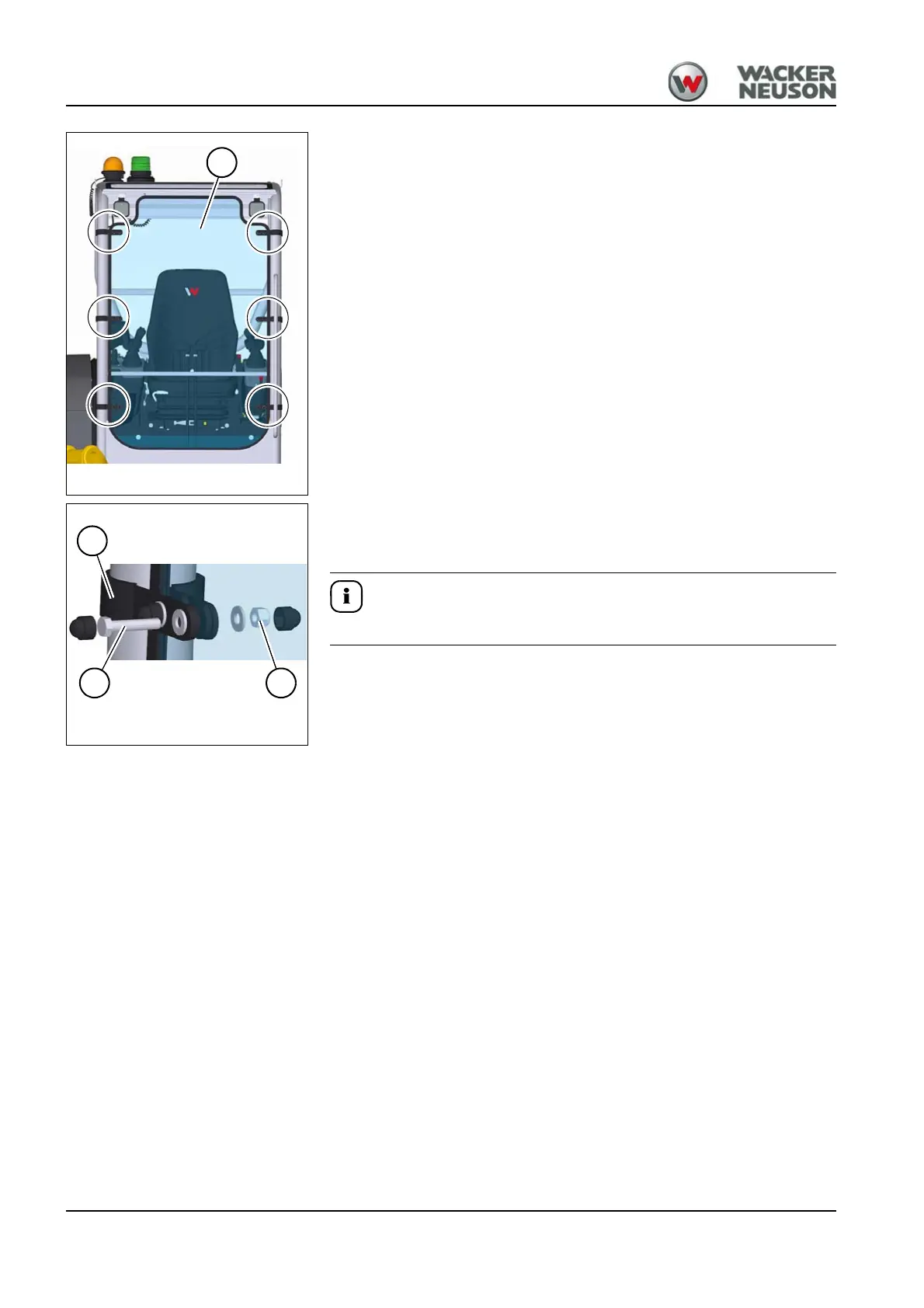

Installing the shatter protection
At least two people are required for the assembly or disassembly.
Preparations – see chapter “ Parking the machine” on page 5-11.
1. Mount shatter protection with mounting bracket A, screws B and
nuts C on the frame.
2. Put caps on all screws and nuts.
Torque for screws and nuts: 25 Nm (18 ft.lbs)
Removing the shatter protection
1. Loosen screws B and nuts C.
2. Remove shatter protection.
3. Securely store the shatter protection.
Document box
A document box behind the seat is available as an option.
