Burner Setup HI 110 / 200 / 300
40 ghi_tx001449gb.fm
6 Burner Setup
6.1 Removing the Access Panel
Requirements
Machine shut down and cooled
Machine properly positioned
Overview
Your machine is equipped with a removable access panel. The access panel must
be removed in order to maintain and repair certain machine components such as
the burner, electric motor, and fuel pump.
Procedure
Follow the procedure below to remove the access panel.
1. Shut down the machine and allow it to cool.
2. Disconnect the power cord from the power source.
3. Remove the screws that fasten the access panel (g).
Note: There are six screws to remove on the HI 110; four screws to remove on the
HI 200 and HI 300.
4. Remove the access panel and set it aside.
5. Perform the required maintenance.
6. When maintenance is complete, reinstall the access panel and fasten it with the
screws.
CAUTION
Hot surface hazard. The machine surfaces may be hot.
f Allow the machine to cool for a minimum of ten minutes before touching it.

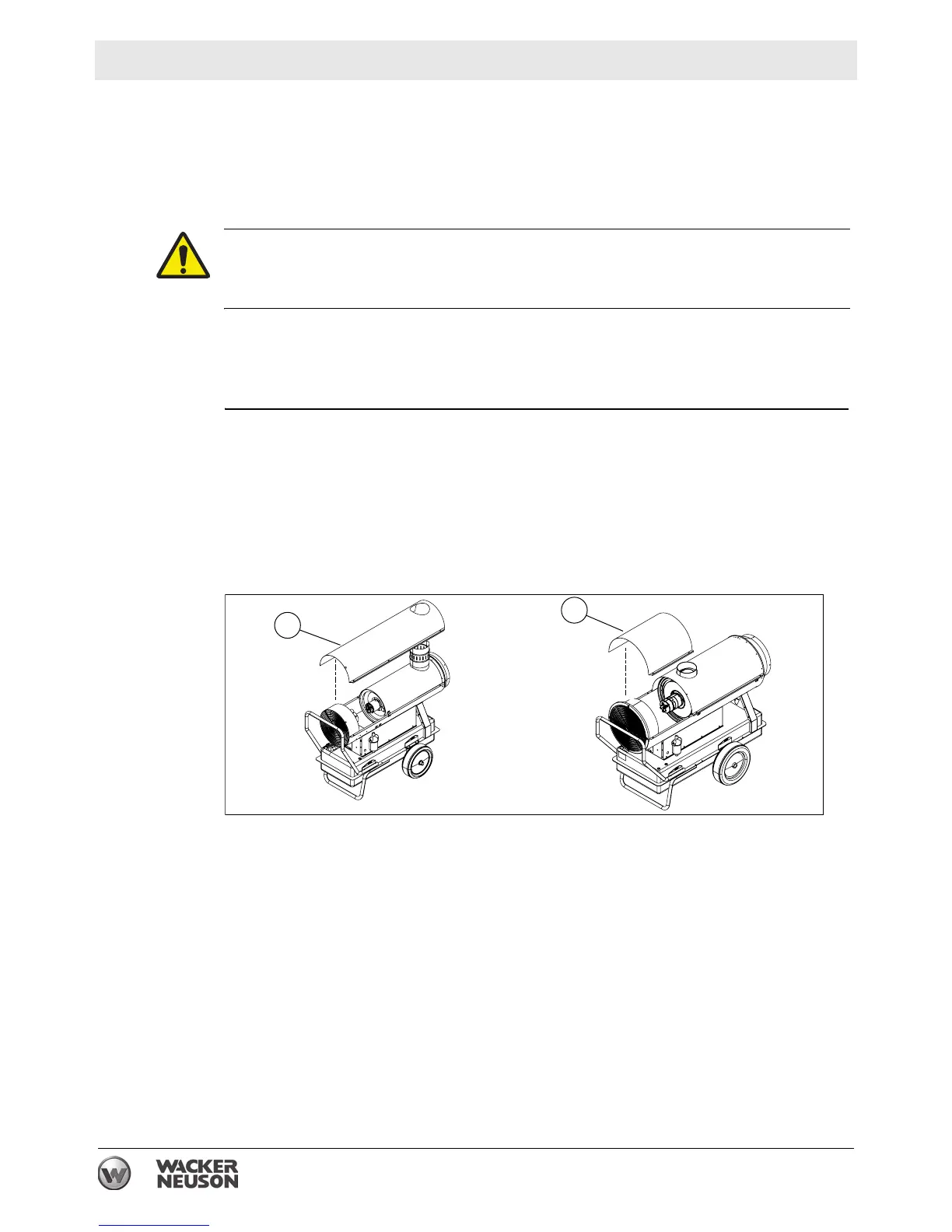

wc_gr00738
g
g
