7.5 Cleaning the Fan Blades and Motor
Prerequisites
Machine shut down and cool to the touch
Power source disconnected
When
Clean the fan blades and motor prior to the first seasonal use, every 1200 hours or
annually, or as needed.
To clean the fan blades and motor, carry out the following procedure.
1. Remove the fan guard (f). There are four screws that secure the fan guard.
2. Remove the the access panel (g). See topic Removing the Access Panel.
This procedure continues on the next page.
WARNING
Electric shock hazard. Electric power is still active at the blower even when the
machine is turned OFF.
f Remove all electric power to the machine before performing this procedure.
CAUTION
Hot surface hazard. The machine surfaces may be hot.
f Allow the machine to cool for a minimum of ten minutes before touching it.

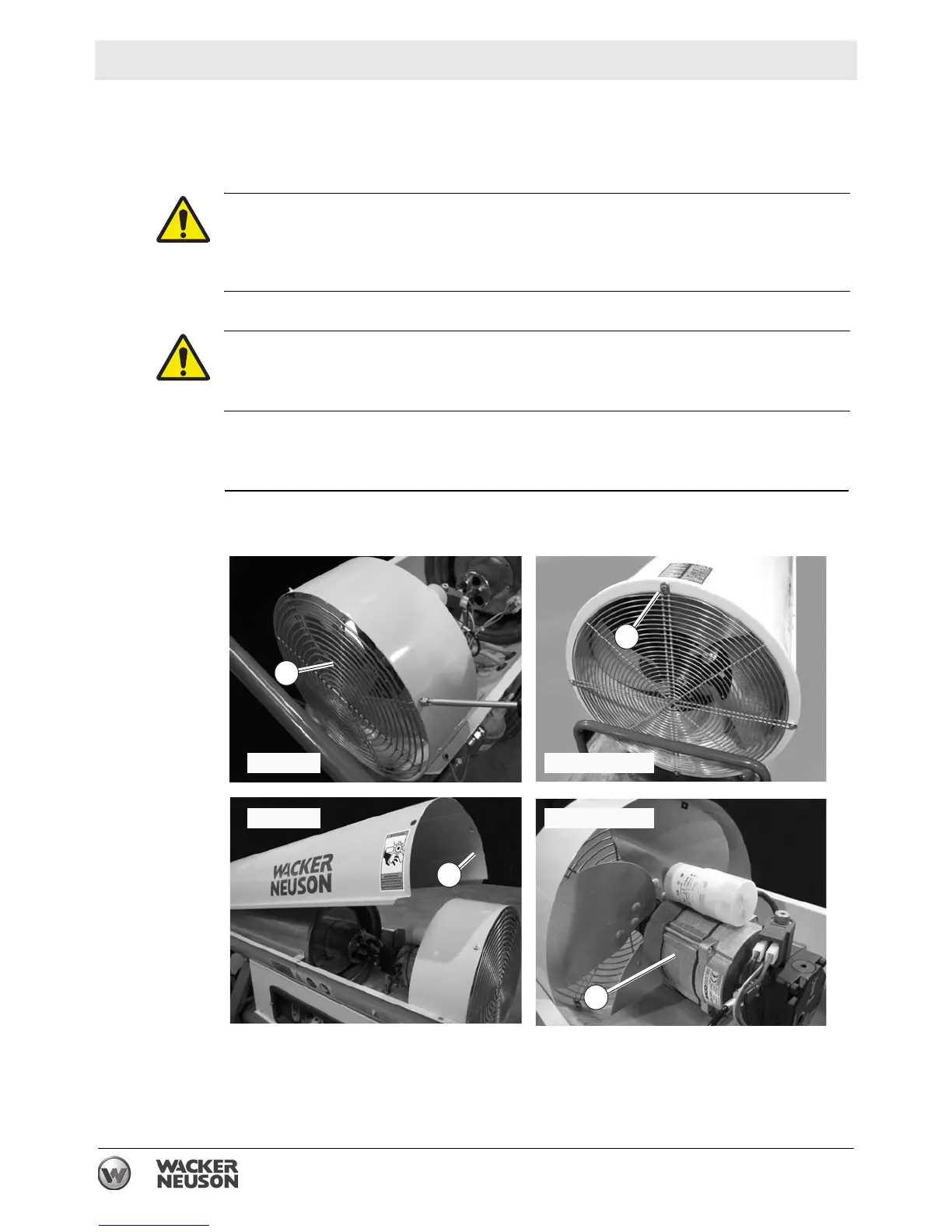

ghi_gr007380
f
g
m
f1
HI 110D
HI 110D
HI 200 / HI 300
HI 200 / HI 300
To Next Page
