HI 400HD D / HD G Operation
4 Operation
4.1 Preparing the Machine for First Use
1. Make sure all loose packaging materials have been removed from the machine.
2. Check the machine and its components for damage. If there is visible damage,
do not operate the machine! Contact your Wacker Neuson dealer immediately
for assistance.
3. Take inventory of all items included with the machine and verify that all loose
components and fasteners are accounted for.
4. Attach component parts not already attached.
5. Add fluids as needed and applicable, including fuel, engine oil, and battery acid.
6. Move the machine to its operating location.
4.2 Installing the Axle and Wheels
Overview
The axle and wheels are shipped loose with the machine and must be installed by
the customer.
Procedure
Follow the procedure below to install the axle and wheels.
1. Lift the machine using appropriate lifting gear.
2. Slide the axle (a) into the tube (b) beneath the trailer.
3. Place a wheel (c) and flat washer (d) on each end of the axle as shown.
4. Insert hitch pins (e) into the holes at each end of the axle to secure the wheels.
WARNING
Crushing hazard.
f Refer to chapter Lifting the Machine for instructions on proper lifting techniques.

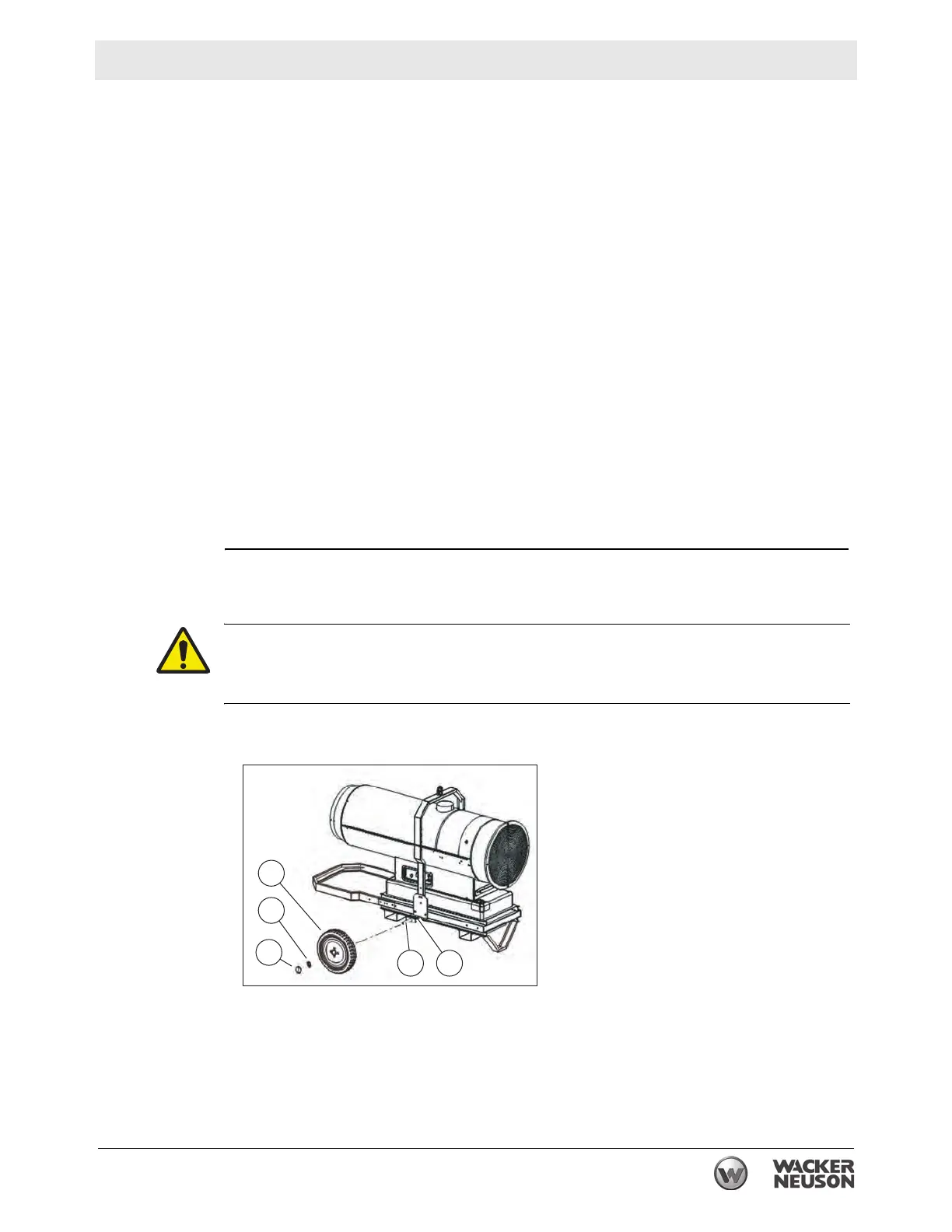

wc_gr007904
a b
e
d
c
