Setting up the Burner HI 400
62 ghi_tx001464gb.fm
6.6 Checking/Changing the Burner Nozzle (D models)
Requirements
Machine shut down and cool to the touch
Machine properly positioned
When
Replace the burner nozzle annually, or if it is damaged.
To replace the burner nozzle, carry out the following procedure.
Removing the
nozzle
1. Remove the burner. See topic Removing and Installing the Burner.

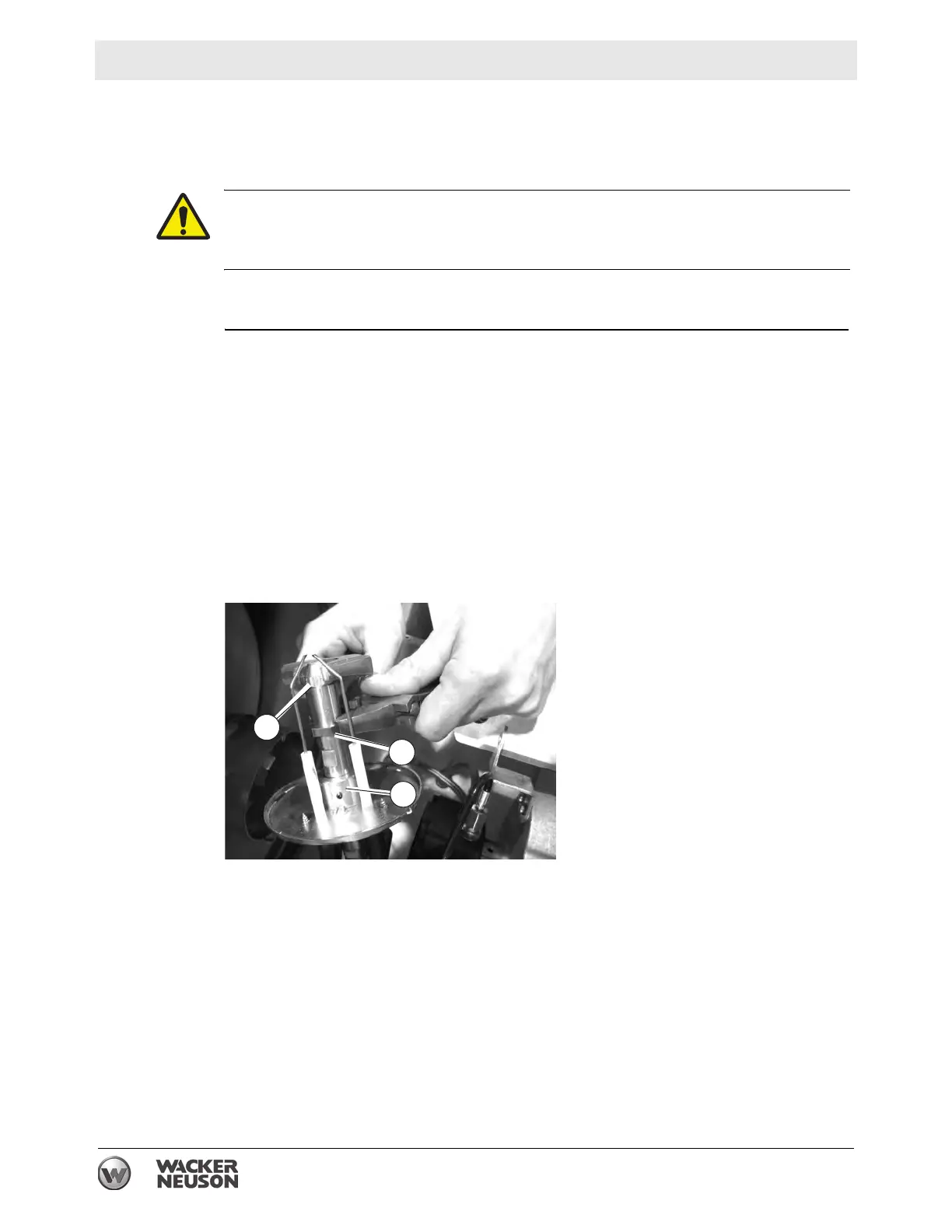

2. Place an adjustable wrench on the large fitting (a) on the nozzle base (c).
3. Place another adjustable wrench on the nozzle (b).
4. Rotate the nozzle counter-clockwise and remove it from the assembly.
Installing the
nozzle
5. Install the new nozzle (b) onto the nozzle base (c).
6. Tighten the nozzle (b) using an adjustable wrench. Rotate the wrench
clockwise.
7. Re-install the burner assembly. See topic Removing and Installing the Burner.
CAUTION
Hot surface hazard. The machine surfaces may be hot.
f Allow the machine to cool for a minimum of ten minutes before touching it.
hi
r007408
c
a
b
