wc_tx004580en.fm
34
Operation LTS

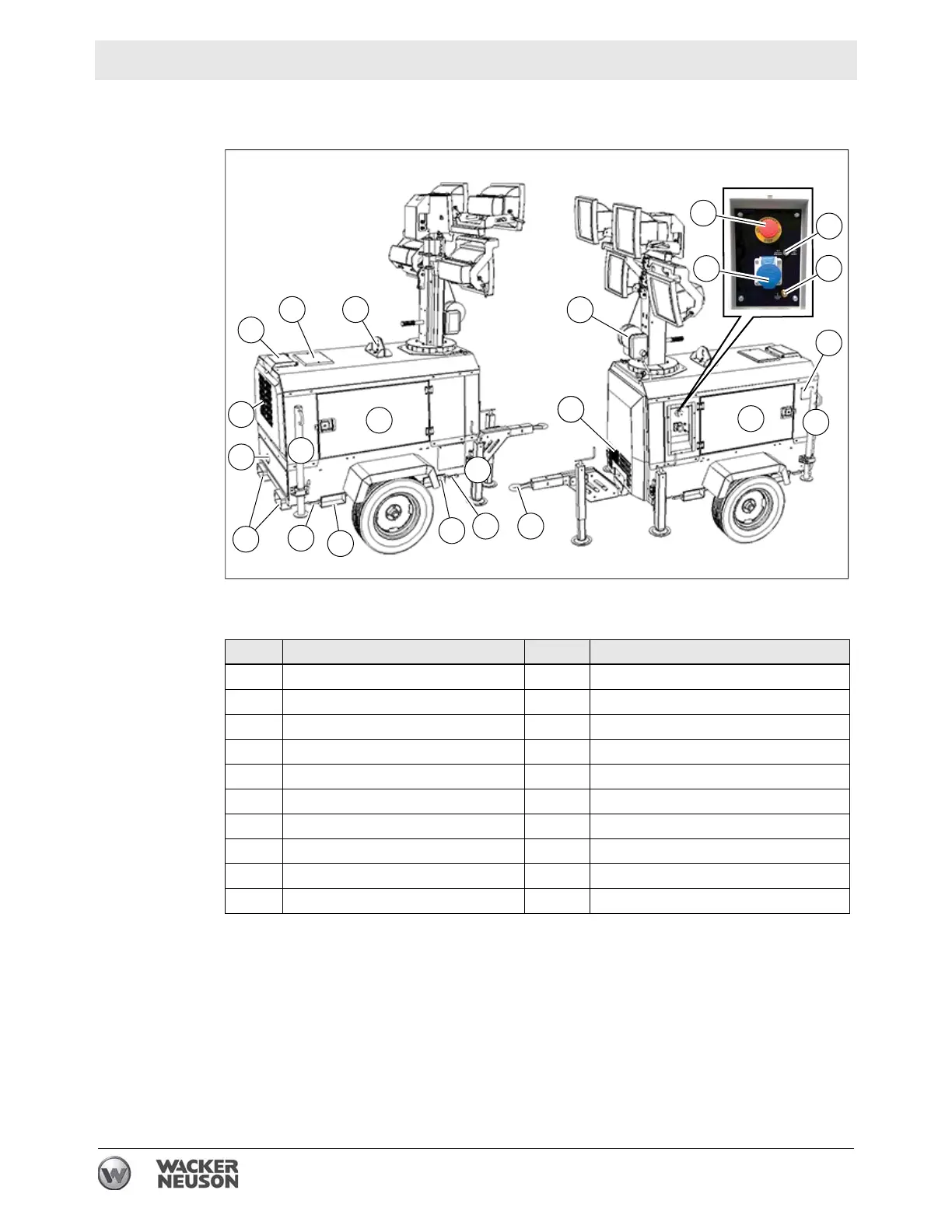

4.6 Machine Components
Item Description Item Description
1 Rear fork lift pockets 11 Extended outrigger jacks
2 Exhaust vent 12 Tow hook
3 Air output 13 Air inlet
4 Radiator cap cover 14 Winch
5 Engine oil cap cover 15 Data plate
6 Lifting eye 16 Earthing clip
7 Engine inspection doors 17 230V 50HZ EEC socket
8 Fixed outrigger jacks 18 12A circuit breaker
9 Lateral fork lift pockets 19 Emergency stop button
10 Tie down points — —
wc_gr014793
1
2
3
4
65
7
8
9
10
10
9
9
11
13
12
15
14
8
16
17
18
19
7
