RCP Accessories
45
Functionality
The workpiece must be placed between the molding piece and the die for bend-
ing.
In the forward movement the die bends the workpiece around the molding piece.
At the end of the reverse movement the die releases the workpiece.
The bending angle is dependent on the path that the die makes during the for-
ward movement.
If the die moves completely forward, the smallest possible bending angle is
made.
Any desired larger angle can be bent when the forwards movement is interrupted
by releasing the ON/OFF switch. If the pressure release lever is set in the Re-
lease/Idle position, the die returns to the original position.
Components and their function
The molding piece is permanently screwed onto the bending head. The size of
the molding piece determines the bending radius.
The die is permanently screwed onto thrust bolt of the machine and moves with
the thrust bolt.

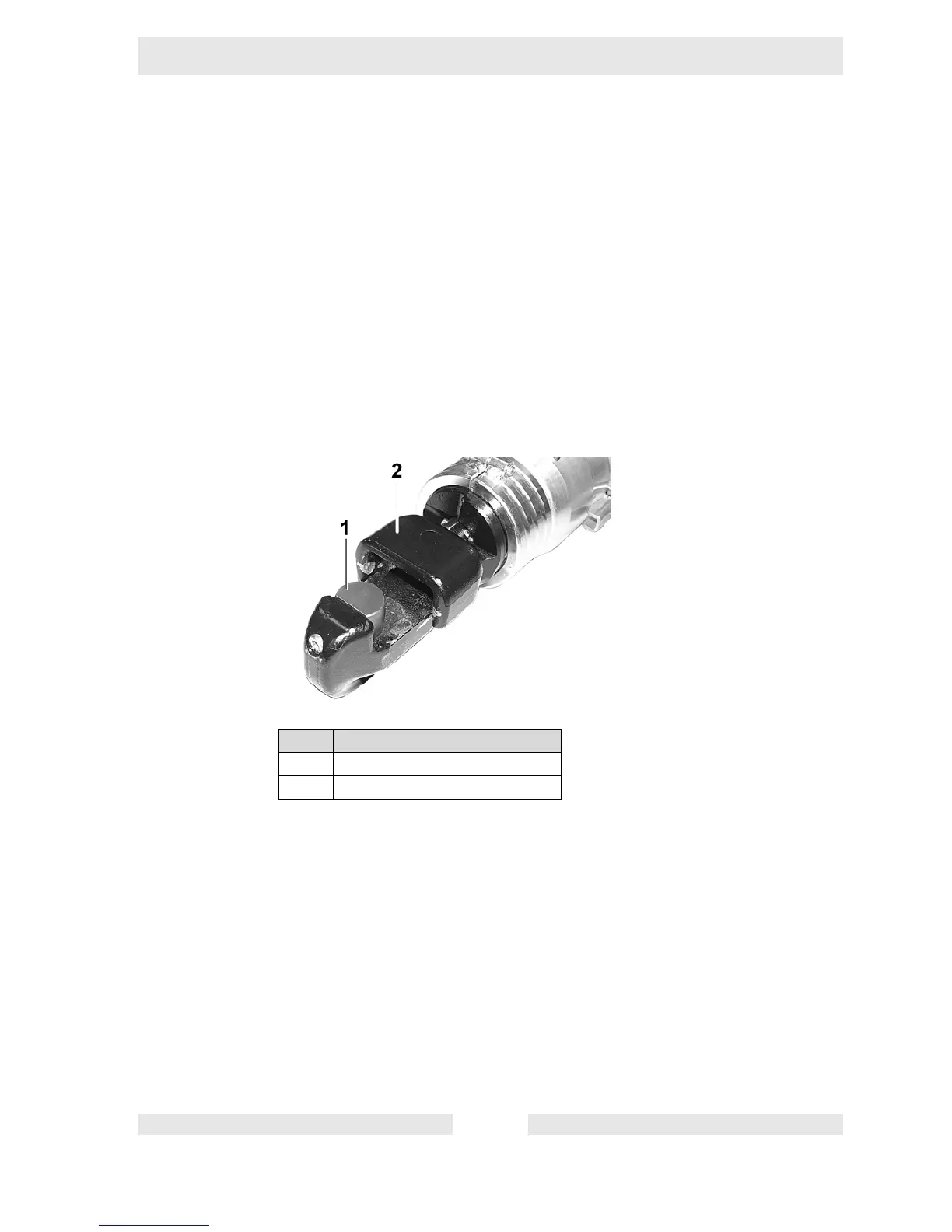

Item Designation
1 Molding piece
2 Movable die
