Maintenance RCP
8.3 Installing and removing the cutting head
Removing the cutting head
1. Unscrew both fastening screws on the movable knife and remove with the
spring washers.
2. Removing the movable knife.
3. Unscrew the fastening screw on the collar.
4. Remove collar.
5. Remove cutting head towards the front.
WARNING
Starting the machine.
Danger of injuries from uncontrolled starting of the machine.
f Remove the plug from the plug receptacle before all work on the machine.

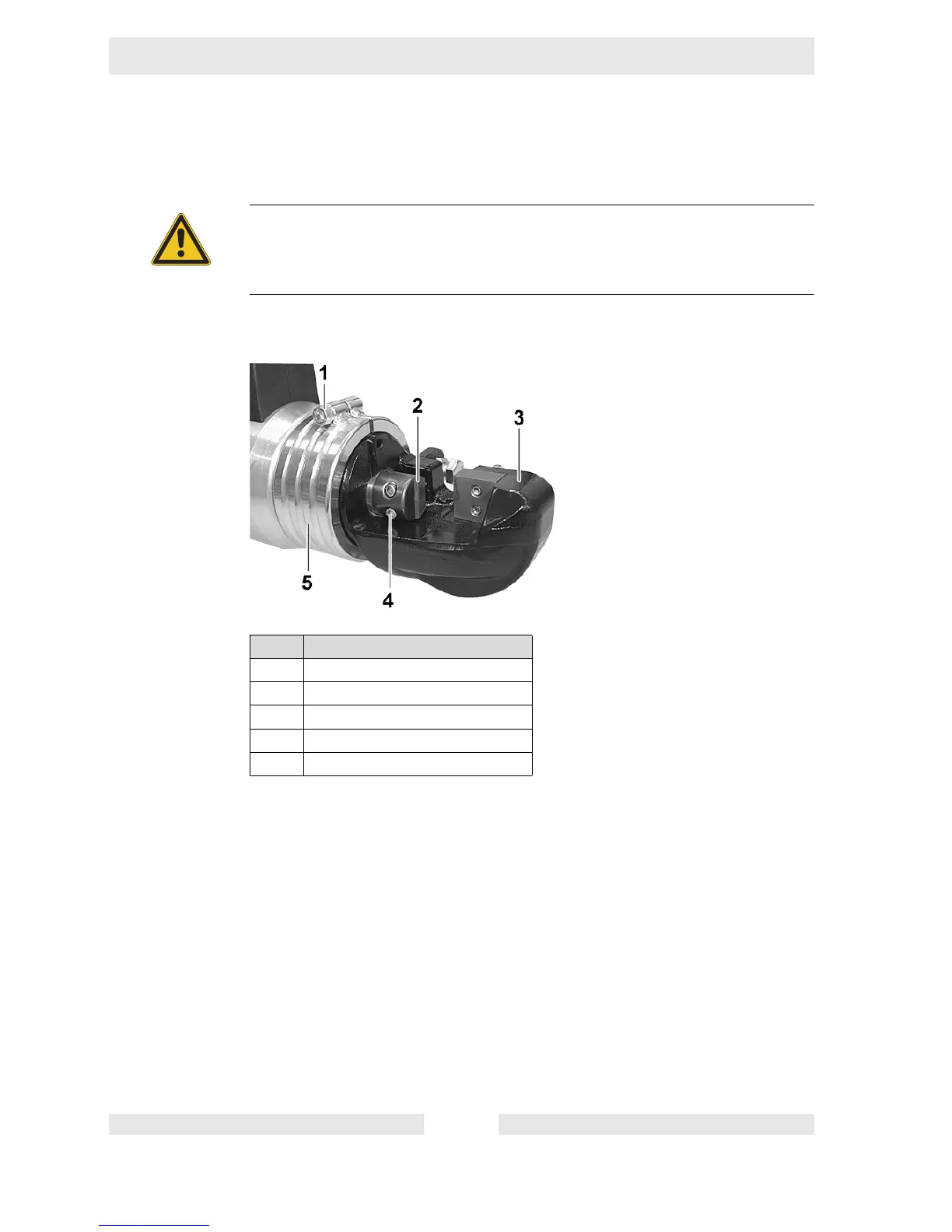

Item Designation
1 Fastening screw
2 Movable knife
3 Cutting head
4 Fastening screw (2 pieces)
5 Collar
