Hydraulic connections on loader unit
NOTICE
Damage to the hydraulic system due to dirt!
► Avoid dirt.
► Pay attention to the daily maintenance plan.
► Ensure that the hydraulic connections are clean.
Operating hydraulic connections on the loader
unit
The hydraulic connections on the loader unit are operated
with additional control lever 6.
• Move the additional control lever 6 toward L.
➥ Connection L = pressure side, connection R =
return.
• Move control lever 6 toward R.
➥ Connection L = return, connection R = pressure
side.
R
L

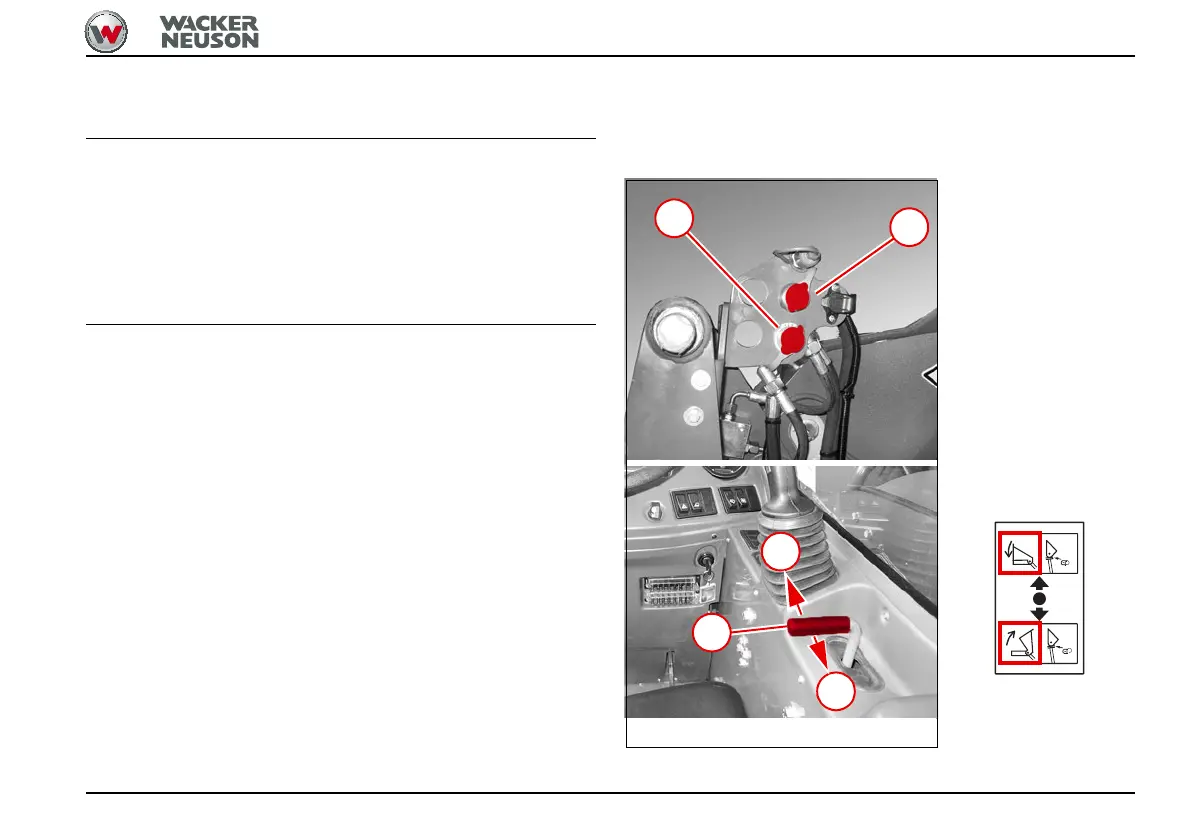

Fig. 73
6
R
L
