WM 80 repair Starting and Ignition
wc_tx000521gb.fm 33
4.4 Assembling the Starter
See Graphic: wc_gr002880 and wc_gr002881
4.4.1 Clean all the components of the starter before reassembling the
starter.
4.4.2 Note: To reduce dirt and dust from collecting between the spring
windings, avoid using grease to lubricate the tarter return spring or the
inside of the reel where the spring seats. Use a light lubricating oil such
as WD40 instead.

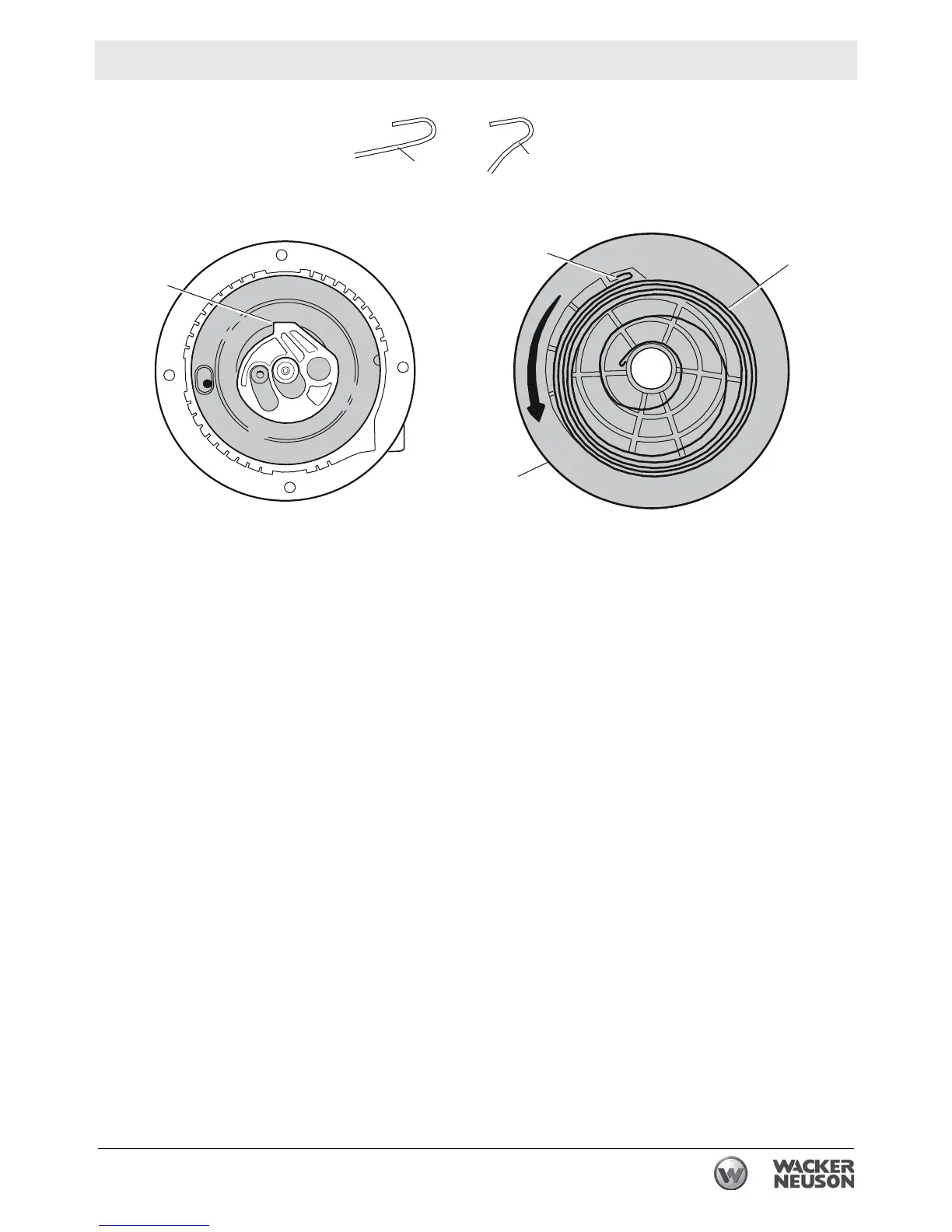

4.4.3 Install the spring (e)(5) by placing the outside end of the spring in the
slot (d) on the rope reel pulley (f) (6). Wrap the spring in a
counterclockwise direction inside the pulley until it is completely
wound. Oil the spring lightly once it is wound.
4.4.4 Lightly grease the center post of the housing and install the wear plate
(4) and the rope reel pulley. Rotate the rope reel pulley until the spring
seats in the slot at the center of the housing (13). Install the washer (7)
over the center post and seat it into the rope reel pulley.
NOTICE: Failure to replace the washer will cause the ratchet to bind
and prevent the rope reel pulley from rotating freely.
4.4.5 Add the spring (8) and the ratchet (9) to the assembly. Do not grease
the ratchet.
4.4.6 Install the cover (10) and secure it in place using the lock washer (11)
and locknut (12). Torque the locknut to 8 Nm (6 ft.lbs.). Install the rope
as described in section Starter Rope Replacement.
a
c
b
wc_gr002881
d
e
f
