Wacker Neuson WM 80 User Manual

Carburetor Replacement WM 80 Repair
74 wc_tx000522gb.fm
6.4 Tillotson with Straight-Through Adapters
See Graphic: wc_gr002898
6.4.1 Turn off the fuel valve at the tank and disconnect the spark plug lead
wire.
6.4.2 Remove the air filter pipe (loosen both clamps).
6.4.3 Disconnect the throttle cable.
6.4.4 Loosen the clamp which secures the carburetor to the adapter and
slide the carburetor off.
6.4.5 Protect the cylinder from dirt by cranking the engine until the piston is
covering the intake port.
6.5 Tillotson with Elbow Adapters
See Graphic: wc_gr002899
6.5.1 Turn off the fuel valve at the tank and disconnect the spark plug lead
wire.
6.5.2 Loosen the air filter pipe clamp and remove the carburetor adapter
nuts. Remove the assembly from the engine.
6.5.3 Disconnect the throttle cable.
6.5.4 Remove the air duct from the carburetor and the carburetor from the
adapter.
6.5.5 Protect the cylinder from dirt by cranking the engine until the piston is
covering the intake port.

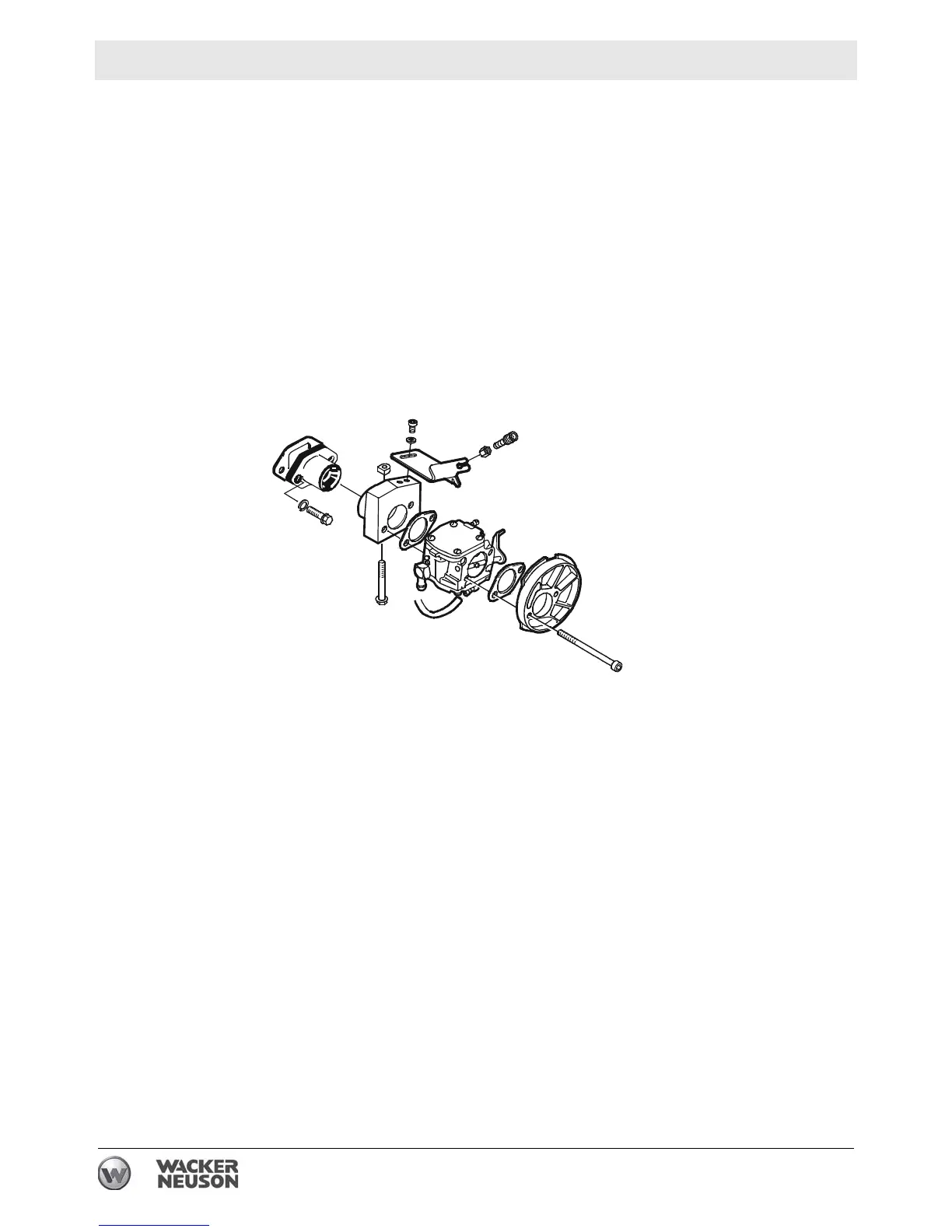

wc_gr002898
