WM 80 Repair Carburetor Overhaul
wc_tx000522gb.fm 87

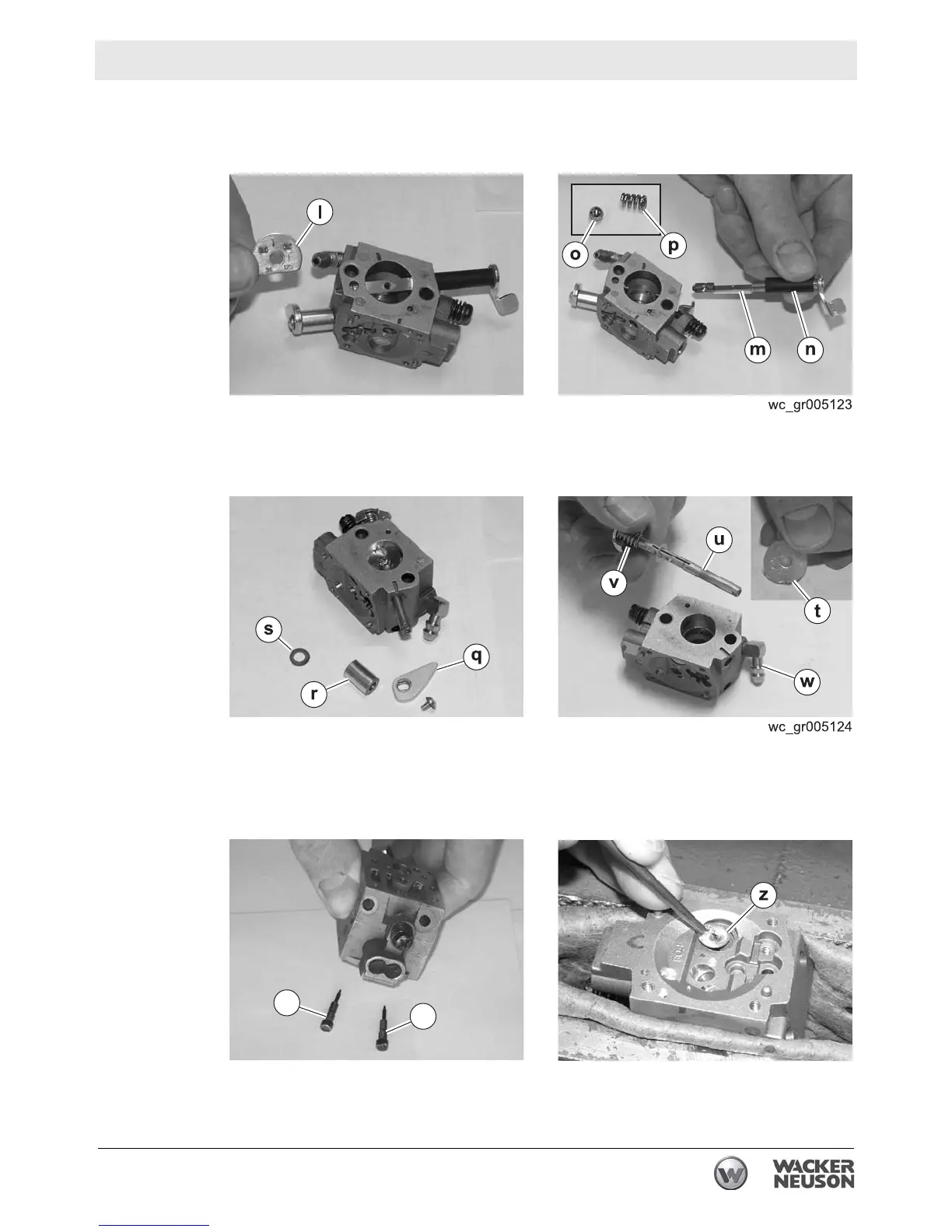

7.6.7 Remove the shutter (l) (butterfly).
7.6.8 Remove the choke shaft (m) and spacer (n). Also remove the ball (o)
and the spring (p) from the carburetor body.
7.6.9 Remove the throttle lever (q), spacer (r), and washer (s).
7.6.10 Remove the shutter (t) (butterfly), then pull the throttle shaft (u) from
the carburetor body. Remove the spring
(v) and nipple (w).
7.6.11 Non-EPA regulated countries only. Remove the high- and low-speed
needle valves (x and y).
7.6.12 Using a punch, remove the Welch plug (z).
x
y
wc_gr005125
