Continued from the previous page.

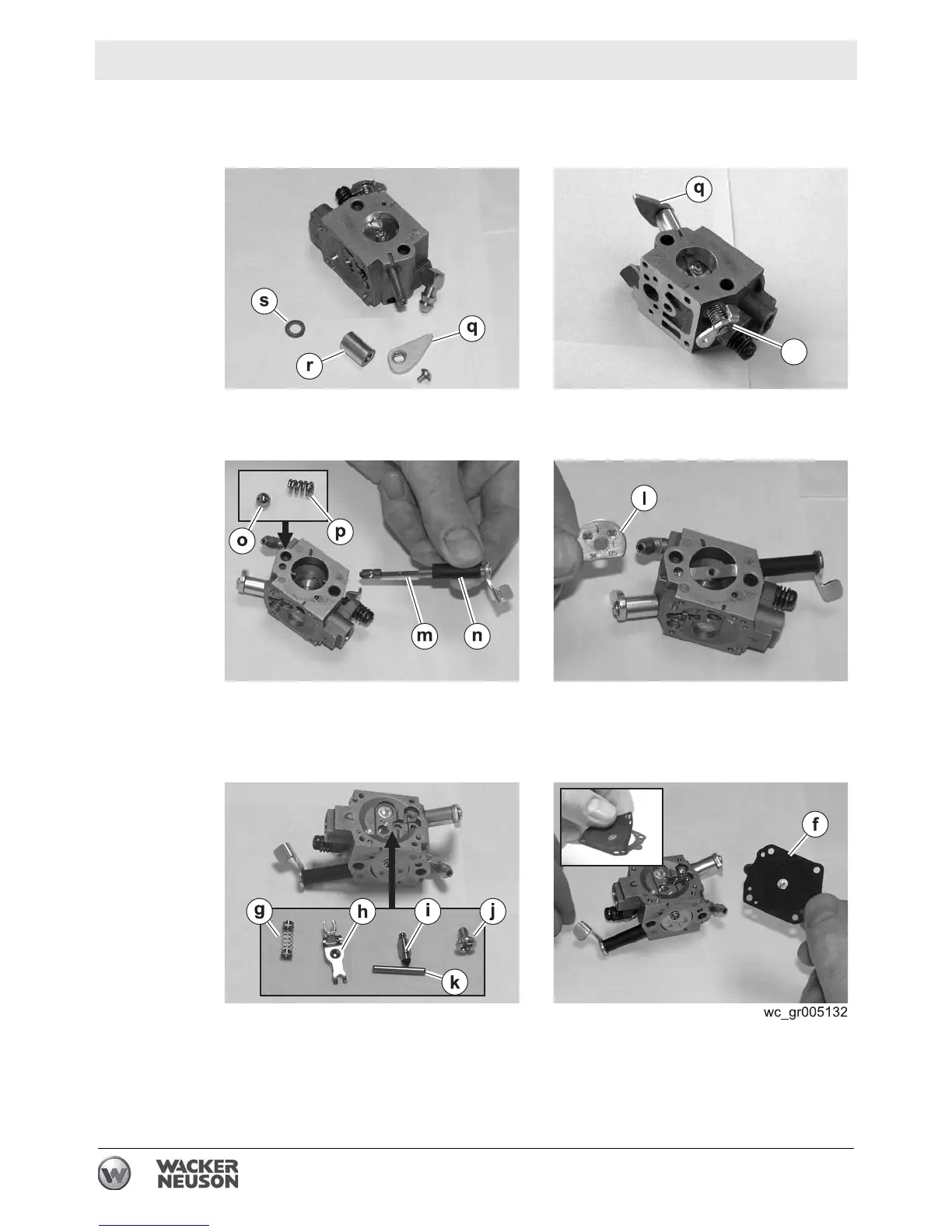

7.6.5 Install the washer (s), spacer (r), and the throttle lever (q). Note the
positioning of the throttle lever (q) compared to the throttle shaft (u).
7.6.6 Install the spring (p) and ball (o). Install the spacer (n) and choke shaft
(m).
7.6.7 Install the shutter (l) (butterfly).
7.6.8 Install the inlet needle (i), spring (g), pin (k), and metering lever (h)
with the screw
(j).
7.6.9 Install the new diaphragm (f) and the new gasket. Be sure the
diaphragm hooks into the metering lever.
This procedure continues on the next page.
