CLEANUP CONTINUED

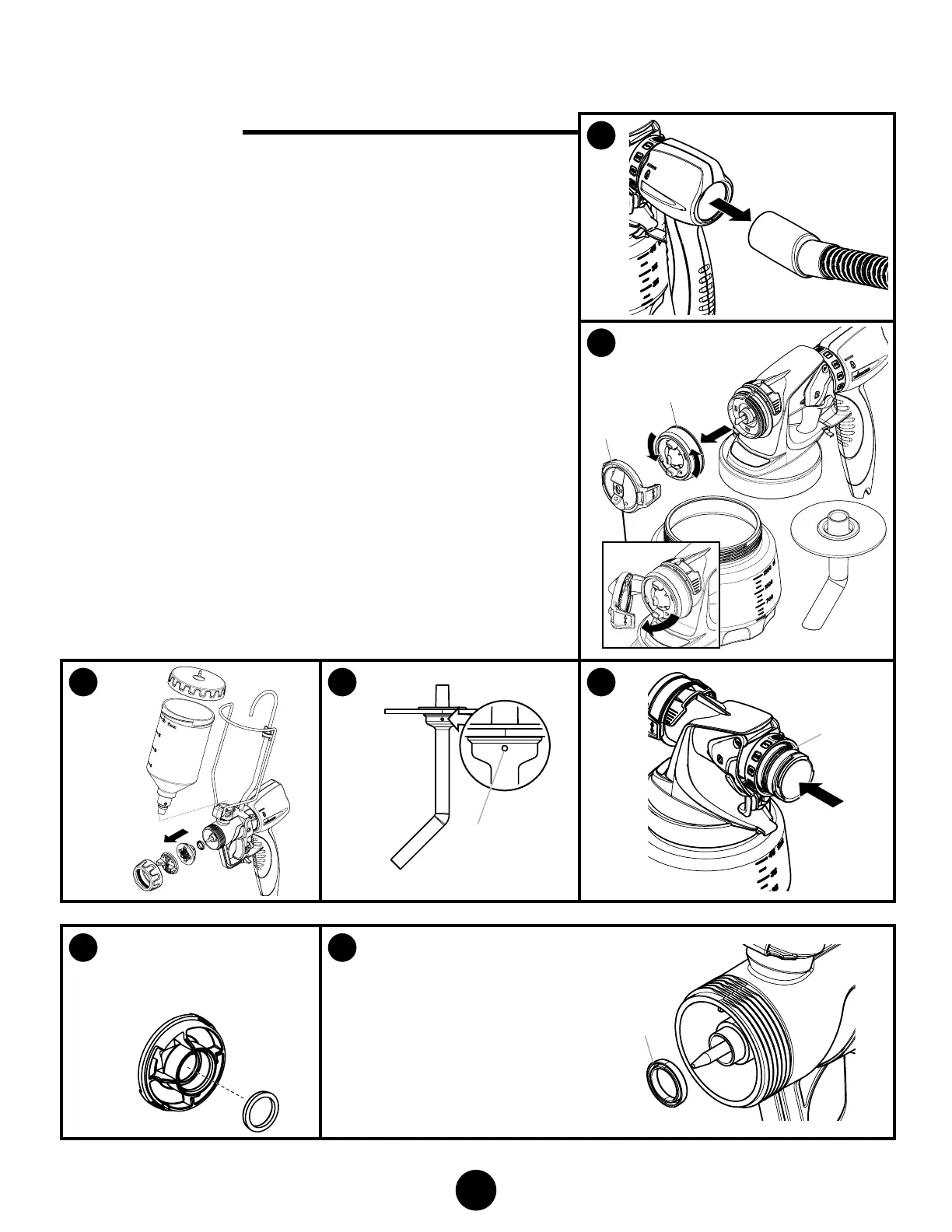

CLEANING THE NOZZLE
1. Make sure power cord is unplugged.
Remove the air hose from the rear of the spray gun handle.
2. iSpray Nozzle only -
a. Remove the air cap (a) by prying it o the connecting nut
(inset). Loosen the connecting nut (b).
b. Remove the parts as shown. Clean all parts with a cleaning
brush and the appropriate cleaning solution.
Reassemble all parts when clean.
3. Gravity Feed Nozzle only -
a. Unscrew the nut and remove the air cap and nozzle.
Remove the parts as shown(*). Clean all parts with a cleaning
brush and the appropriate cleaning solution.
Reassemble all parts when clean(**).
4. iSpray only - Clean the air vent (c) on the suction tube with a
soft bristled cleaning brush or a bent paper clip.
5. Clean the rear of the nozzle (d) with the appropriate cleaning
solution. Use a thin layer of petroleum jelly to lubricate the
O-ring (e).
1
2
(b)
3 4
(c)
5
(d)
(e)
*
(*) The nozzle seal may become
stuck inside the Gravity Feed nozzle
when the nozzle is removed. If this
occurs, make sure to pull it out.
**
(**) It is important that the nozzle
seal inside the nozzle be re-installed
properly. Make sure the cup side of
the seal (the side with the groove) is
facing out towards the front of the
nozzle. Improper installation will
cause leakage and damage to the
turbine.
