6.6.2 AIR TESTS
Connect test or air hose to the spray gun and switch on mains pressure 0.8 MPa; 8 bar;
116 psi max.
Checking the air valve
The air valve must switch on and off cleanly.
Test up to approx. 0.8 MPa; 8 bar; 116 psi.
Air tightness

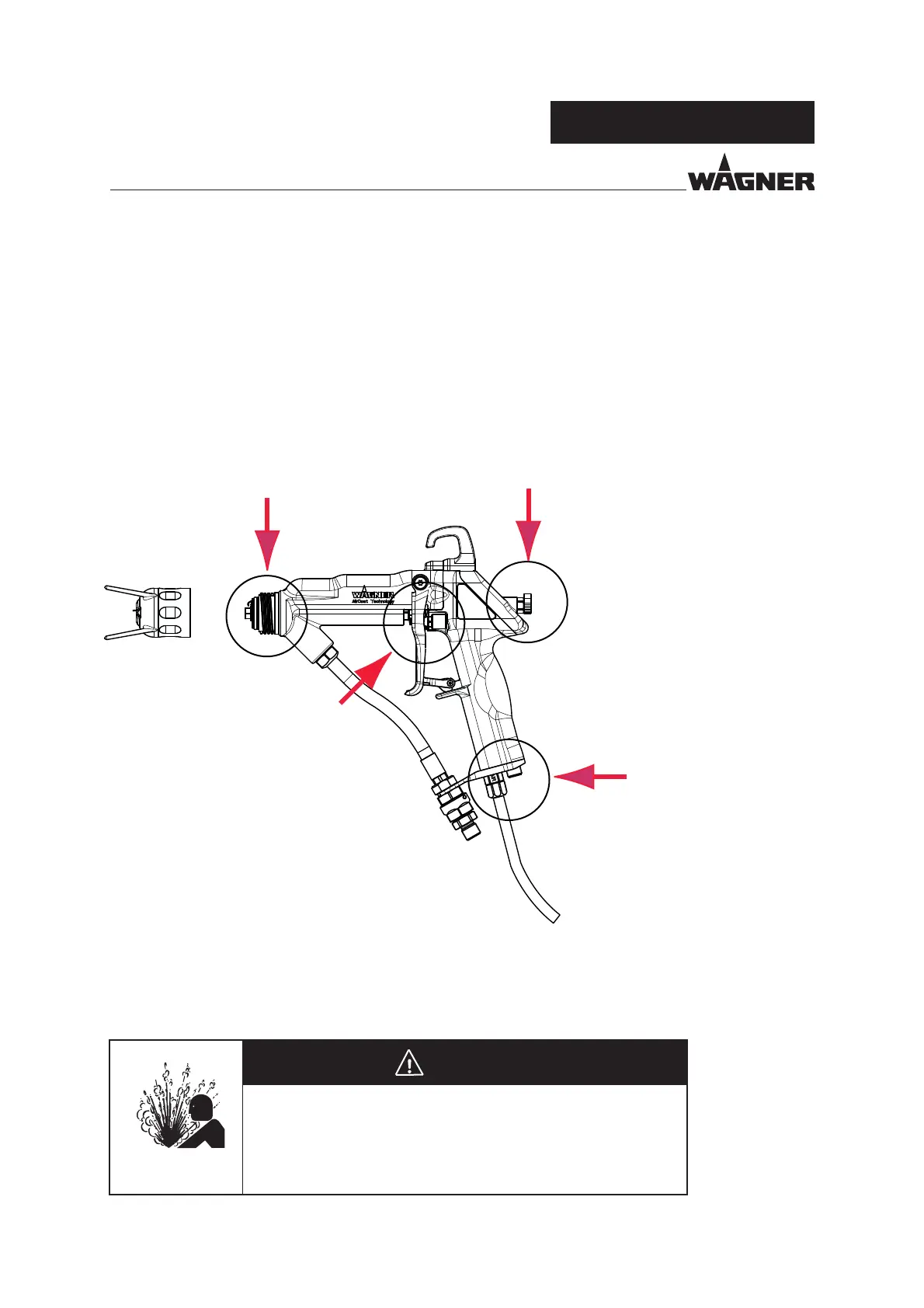

With the trigger guard unactuated, test for air tightness at the points marked in the
illustration:
6.6.3 MATERIAL PRESSURE TEST
Connect high pressure hose to the spray gun.
Test the spray gun for tightness with solvent or spray oil (e.g. Macrol 52) and a max.
pressure of 25 MPa; 250 bar; 3626 psi.
Observe the following gun components:
Material connection, nozzle body, material valve (no after-spraying).
DANGER
Exploding gas/ air mixture!
Danger to life from flying parts and burns
Never spray into a closed container.
Earth the container.
