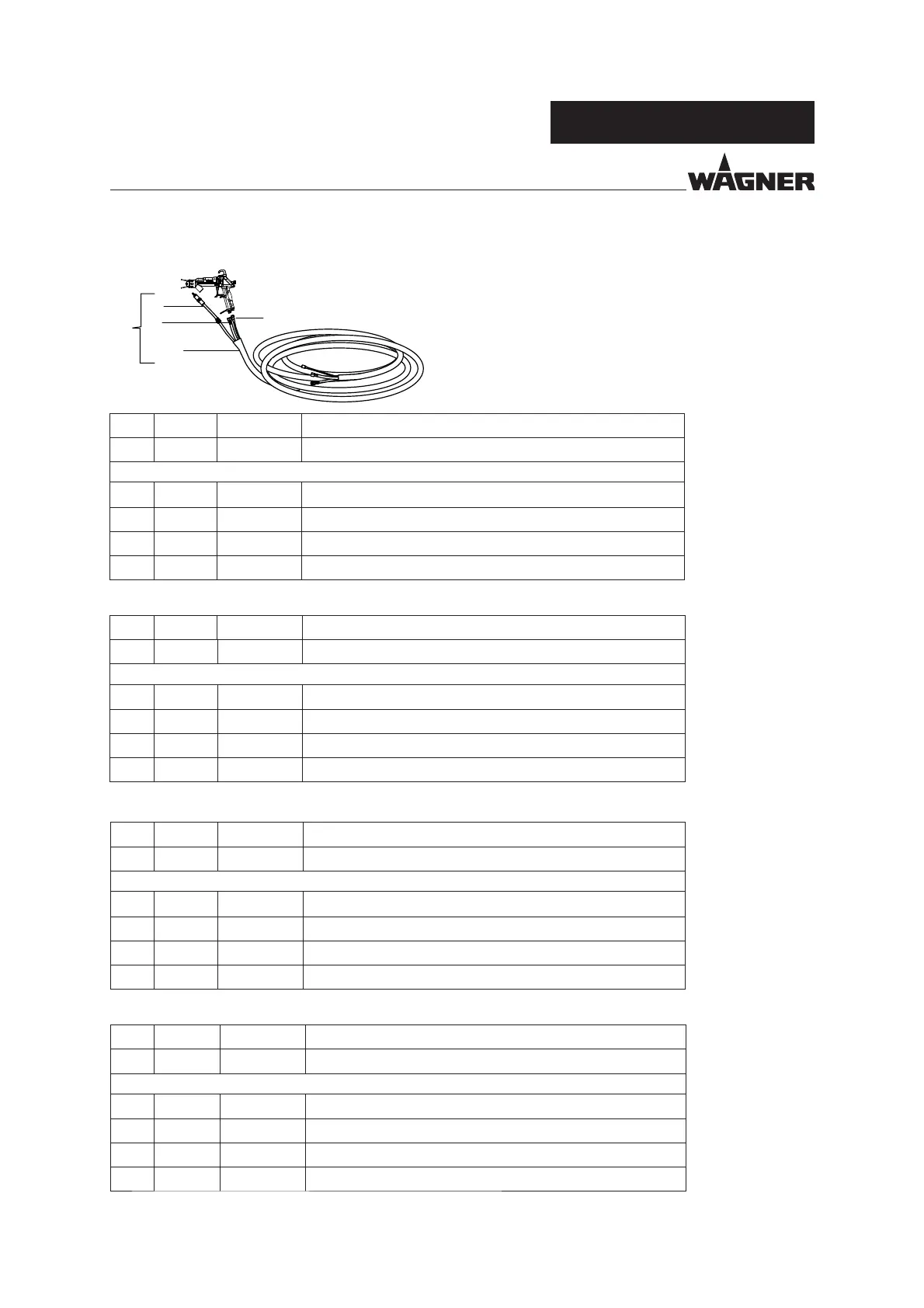

9.5.2 HOSE SETS FOR LOW IMPEDANCE MATERIALS
Item Qty Part No. Description
1 1 2309951 GM 5000EAC hose set (7.5 m), Low R
Consisting of:
2 1 2310468 EAC high pressure paint hose, compl. (7.5 m) LowR
3 1 2312060 Air hose compl. (8.0 m)
4 1 2307293 GM 5000E gun cable (10.0 m)
5 7m 3676437 PP30 protective hose mesh (7.0 m)
Item Qty Part No. Description
1 1 2309952 GM 5000EAC hose set 10.0 m), Low R
Consisting of:
2 1 2310469 EAC high pressure paint hose, compl. (10.0 m) LowR
3 1 2312061 Air hose compl. (10.5 m)
4 1 2309474 GM 5000E gun cable (15.0 m)
5 9.5 m 3676437 PP30 protective hose mesh (9.5 m)
Item Qty Part No. Description
1 1 2309953 GM 5000EAC hose set (15.0 m), Low R
Consisting of:
2 1 2310470 EAC high pressure paint hose, compl. (15.0 m) LowR
3 1 2312062 Air hose compl. (15.5 m)
4 1 2309475 GM 5000E gun cable (20.0 m)
5 14.5 m 3676437 PP30 protective hose mesh (14.5 m)
Item Qty Part No. Description
1 1 2309954 GM 5000EAC hose set (20.0 m), Low R
Consisting of:
2 1 2310471 EAC high pressure paint hose, compl. (20.0 m) LowR
3 1 2312063 Air hose compl. (20.5 m)
4 1 2309476 GM 5000E gun cable (25.0 m)
5 19.5 m 3676437 PP30 protective hose mesh (19.5 m)
Note to the material hose:
- nominal pressure 250 bar
- inlet diameter 4 mm
- inside hose material FEP
