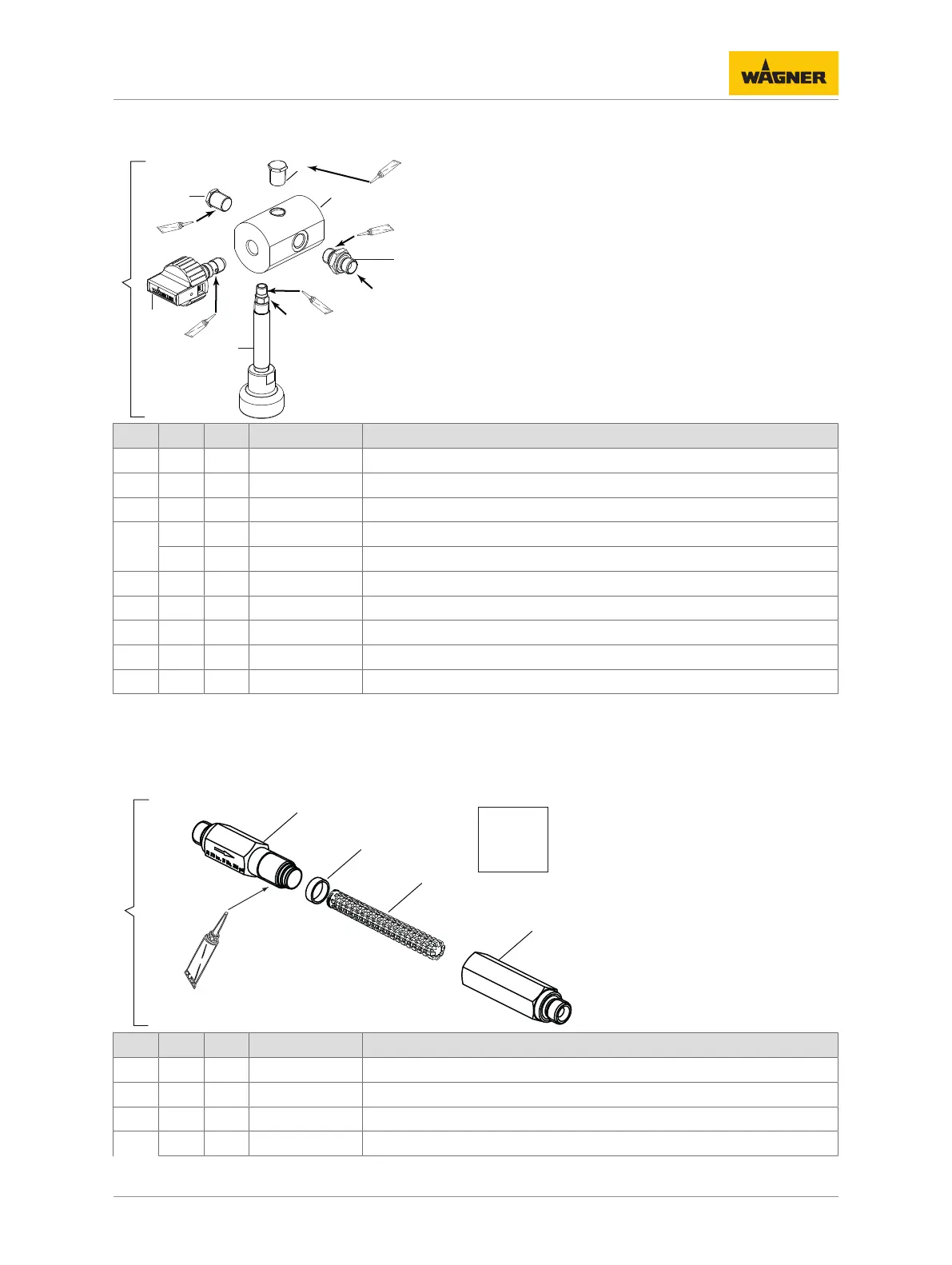

14.8 RELIEF COMBINATION, 270 BAR
B_04068
1
2
4
6
3
5
3
7
8
8
100 Nm
74 lbft
7
9
17 Nm
12.5 lbft
Pos K Stk Order no. Designation
1 1 2329023 Relief combination, 270 bar
2 1 2324549 Relief housing
3 2 2323718 Hexagon plug
4 ♦ 1 169248 Relief valve, complete
● 1 2356467 Ball valve set (option)
5 1 2349761 Relex set, cpl, 1/8"
6 1 3204611 Fitting, DF-MM-G1/4"-G1/4"-PN530-SSt
7 1 9992831 Loctite® 542, 50ml; 50cc
8 1 9992616 Molykote® DX grease
9 1 9992609 Anti-seize paste tube
♦ = wearing parts
● = not part of the standard equipment but available as a special accessory
14.9 STRAIGHT INLINE FILTER, 270 BAR
B_04070
3
2
4
5
1
6
27 MPa
270 bar
3916 psi
Pos K Stk Order no. Designation
1 1 2324558 Inline filter DN6-PN270-G1/4"-SSt
2 1 2324550 Filter inlet housing
3 ♦ 1 128389 Gasket
4 ♦ ● 1 2315723 * Filter insert, red (fine), 200 mesh per inch – 10 pieces
