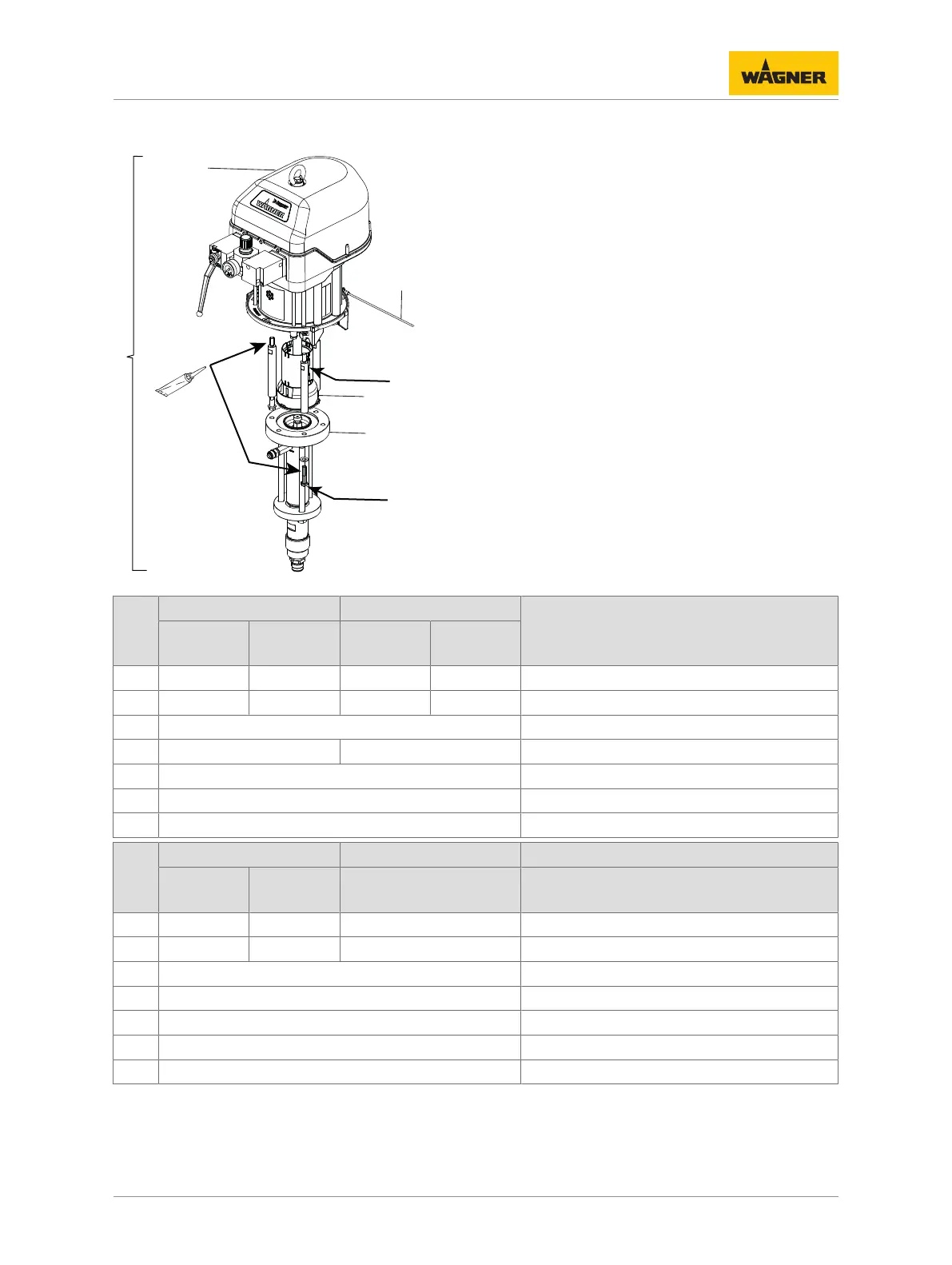

14.3 OVERVIEW OF THE COMPONENTS
B_05261
3
2
10
9
1
4
A
A
Wildcat 10-70, Wildcat 18-40
Pos Wildcat 10-70 Wildcat 18-40 Designation
PE/TG
Order no.
PE/T
Order no.
PE/TG
Order no.
PE/T
Order no.
1 2329460 2329462 2329456 2329458 Piston pump
2 2329645 2329647 2329641 2329643 Fluid section
3 2329613 Air motor 3/75
4 2350030 2350028 Connection set for air motor - fluid section
9 236219 Grounding cable, complete
10 9992616 Molykote® DX grease
A 25 Nm; 18 lbft Tightening torque for air motor/fluid section
Pos Wildcat 10-70 TC Wildcat 10-70 TC 1.4404
PE/TG
Order no.
PE/T
Order no.
PE/TG
Order no.
Designation
1 2337529 2337530 2366704 Piston pump
2 2329645 2329647 2366710 Fluid section
3 2334375 Air motor 3 Wildcat-M
4 2350030 Connection set for air motor - fluid section
9 236219 Grounding cable, complete
10 9992616 Molykote® DX grease
A 25 Nm; 18 lbft Tightening torque for air motor/fluid section
