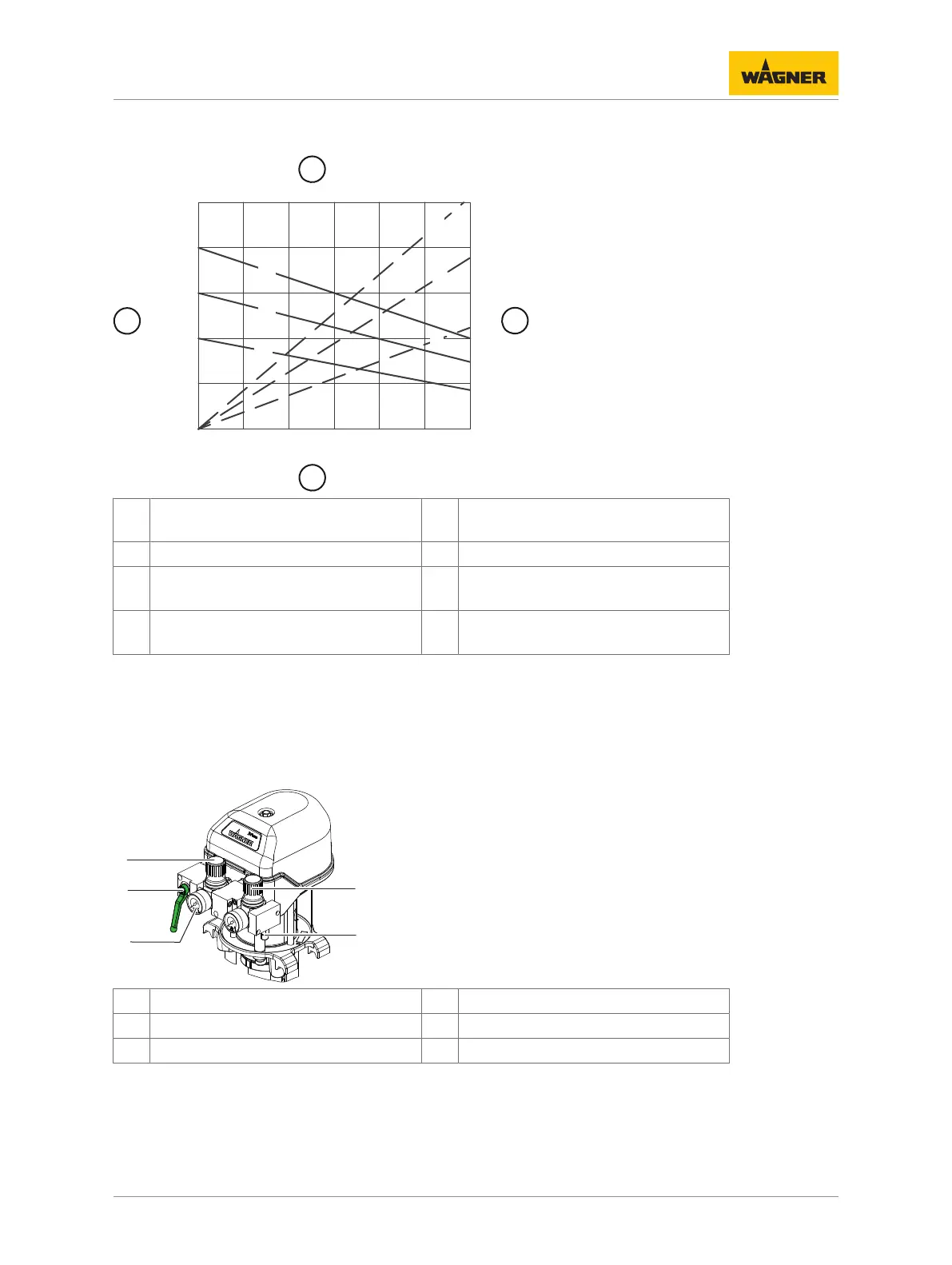

WAGNER Leopard 35-150 - Operating Elements

Operating manual Piston pump IceBreaker 40-200 ccm (Finishing)
5 Description
36 Order number 2333538 | Edition 03/2021
Leopard 26-200
0
250 (25)
<3625>
200 (20)
<2900>
150 (15)
<2175>
100 (10)
<1450>
50 (5)
<725>
0
10 20 30 40 50 60
1500
<53>
1200
<43>
900
<32>
600
<21>
300
<11>
0
12
<3.2>
10
<2.7>
8
<2.1>
6
<1.6>
4
<1.1>
2
<0.5>
0
A
B
C
bar (MPa)
<psi>
nl/min
<scfm>
l/min
<gpm>
A
B
C
B_07925
1
2
3
4
1 Product pressure in bar; (MPa); <psi> A Characteristic curve for air pressure 7.7
bar; 0.77 MPa; 111 psi
2 Stroke frequency in DH/min. -- --
3 Air consumption in nl/min.; <scfm> B Characteristic curve for air pressure 6
bar; 0.6 MPa; 87 psi
4 Flow rate of water in l/min.; <gpm> C Characteristic curve for air pressure 4
bar; 0.4 MPa; 58 psi
5.6 OPERATING ELEMENTS
5.6.1 Pressure Regulator Unit
Designation
Example: Puma 28-40 AirCoat pneumatic pump
B_03909
3
4
5
1
2
1 Pressure regulator 4 Compressed air input
2 Ball valve 5 AirCoat regulator (option)
3 Pressure gauge
Positions of the ball valve
Example: Puma 28-40 Airless pneumatic pump
