WAGNER Leopard 35-150 - Angled Inline Filter, 530 Bar

Operating manual Piston pump IceBreaker 40-200 ccm (Finishing)
14 Spare Parts
110 Order number 2333538 | Edition 03/2021
Pos K Stk Order no. Designation
♦ ● 1 2315724 * Filter insert, blue (middle), 150 mesh per inch – 10 pieces
♦ ● 1 2315725 * Filter insert, yellow (middle), 100 mesh per inch – 10 pieces
♦ ● 1 2365429 * Filter insert, green (coarse), 30 mesh per inch – 10 pieces
♦ ● 1 2315726 * Filter insert, white (coarse), 50 mesh per inch – 10 pieces
5 1 2324551 Filter outlet housing
6 1 9992609 Anti-seize paste tube
♦ = wearing parts
● = not part of the standard equipment but available as a special accessory

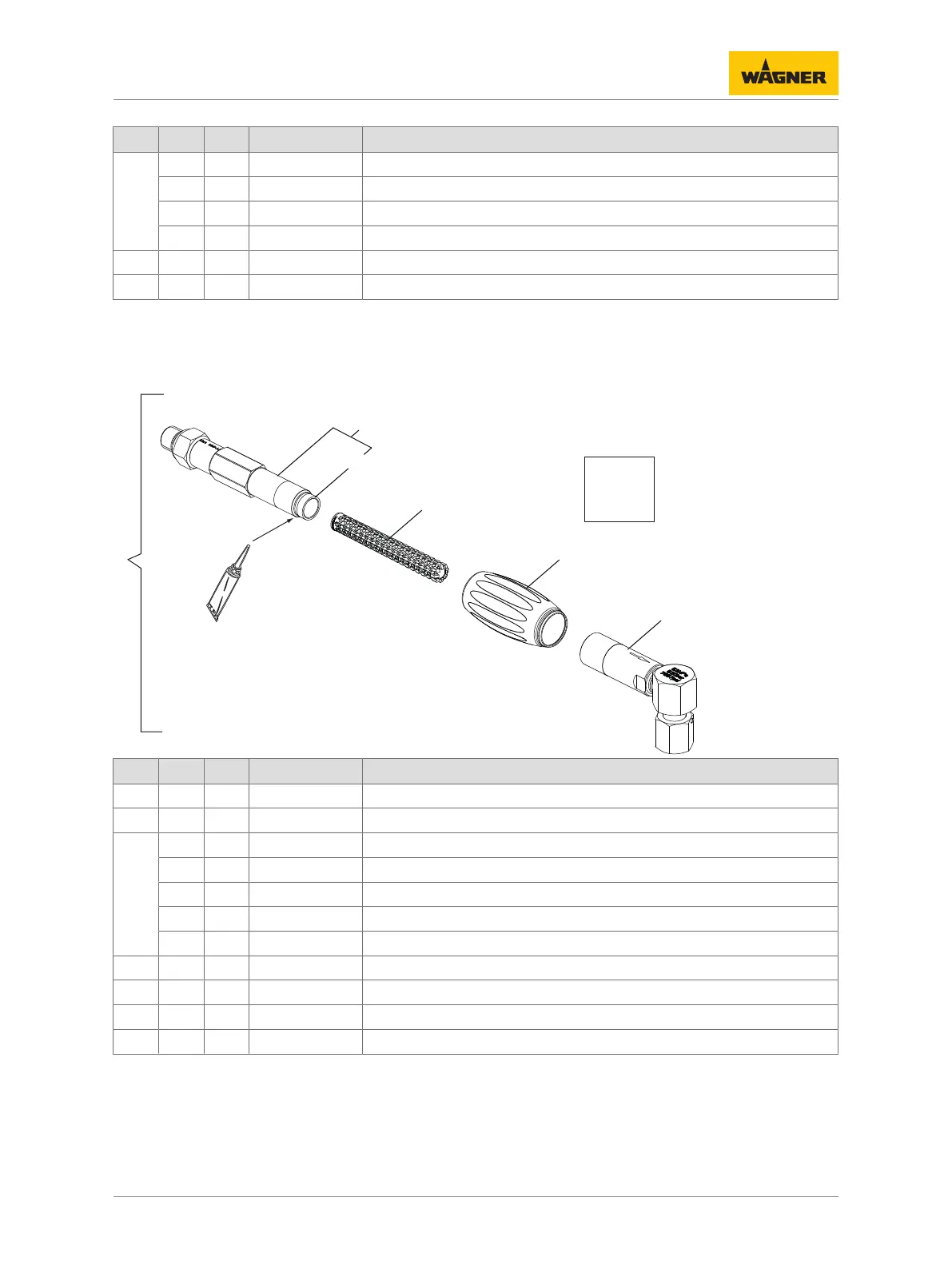

14.10 ANGLED INLINE FILTER, 530 BAR
B_04071
3
2
4
5
1
6
7
53 MPa
530 bar
7687 psi
Pos K Stk Order no. Designation
1 1 2329026 Inline filter HL DN6-PN530-G1/4"-SSt
2 1 2326045 Filter inlet housing, pre-assembled
3 ♦ ● 1 2315723 * Filter insert, red (fine), 200 mesh per inch – 10 pieces
♦ ● 1 2315724 * Filter insert, blue (middle), 150 mesh per inch – 10 pieces
♦ ● 1 2315725 * Filter insert, yellow (middle), 100 mesh per inch – 10 pieces
♦ ● 1 2365429 * Filter insert, green (coarse), 30 mesh per inch – 10 pieces
♦ ● 1 2315726 * Filter insert, white (coarse), 50 mesh per inch – 10 pieces
4 1 2311491 Turning handle
5 1 2325950 Filter outlet housing 90°, pre-assembled
6 1 9992609 Anti-seize paste tube
7 ♦ 1 128389 Gasket
♦ = wearing parts
● = not part of the standard equipment but available as a special accessory
