Operating manual Piston pump IceBreaker 40-200 ccm (Finishing)
5 Description
Order number 2333538 | Edition 03/2021 29

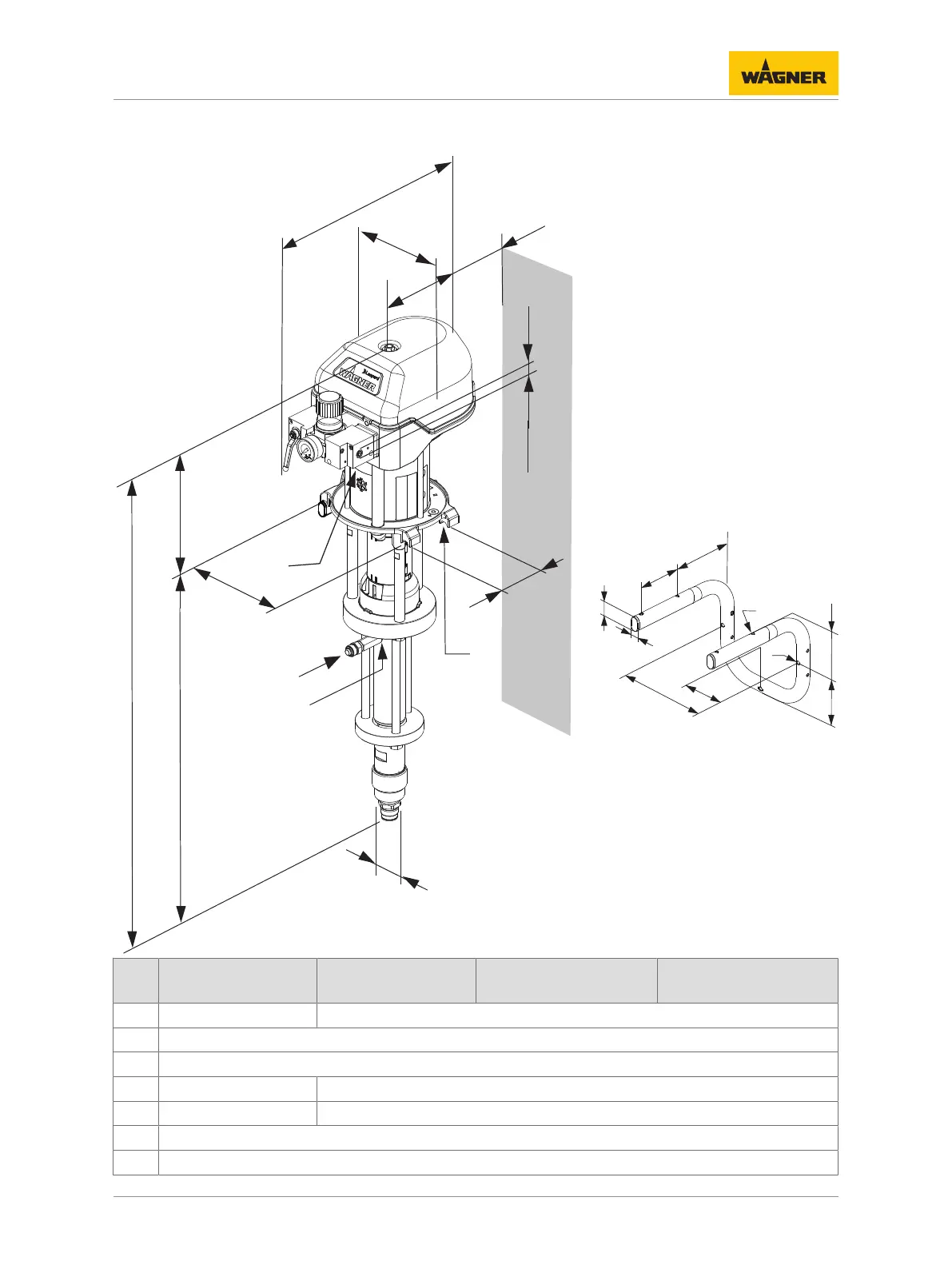

5.5.7 Measurements and Connections for Leopard
J
C
F
T
H
N
D
(E)
A
G
K
B
B_03903
M
L1
L2
R
S
H
O
P
G
G
/2
Q
I (IbxIh) Ib
Ih
Leopard
Pos Leopard 35-70
mm; inch
Leopard 48-110
mm; inch
Leopard 35-150
mm; inch
Leopard 26-200
mm; inch
A 799; 31.5 1080; 42.5
B 240; 9.4
C ≈ 434; 17.1
D 305; 12 380; 15
E 490; 19.3 705; 27.6
F 192; 7.6
G 230; 9.1
