Operating manual Piston pump IceBreaker 40-200 ccm (Finishing)
8 Cleaning and Maintenance
60 Order number 2333538 | Edition 03/2021
8.2.9.3 High-pressure filter
12
11
10
7
2
3
5
B_05271
1
21
80
81
82
53 MPa
530 bar
7687 psi
27 MPa
270 bar
3916 psi
A
B

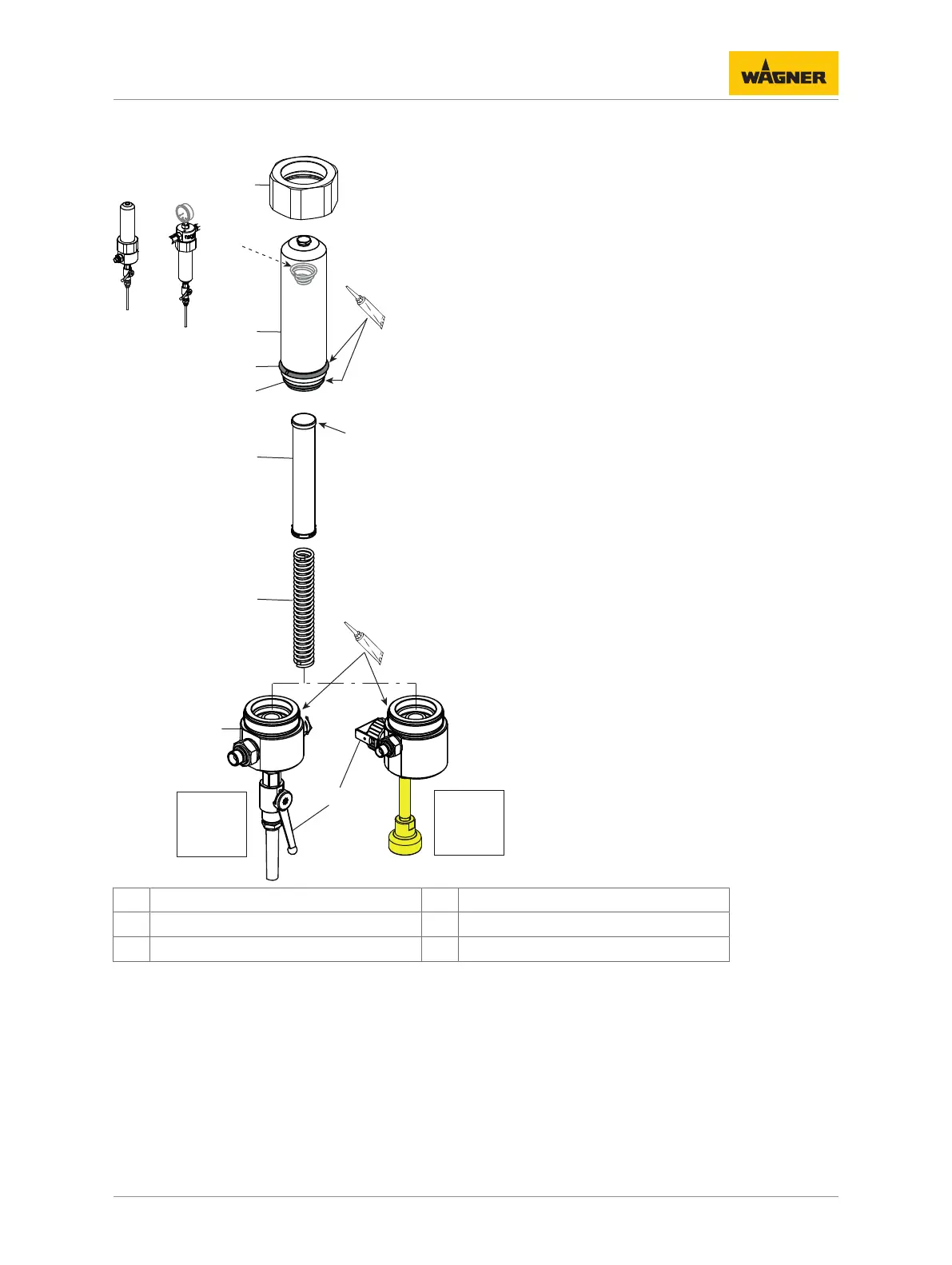

A Preferred filter installation position B Reversed filter installation position
80 Mobilux EP2** 82 Anti-seize paste**
81 Filter identification
1. Flush the pump and HP filter in accordance with Chapter Basic Flushing [850], and
while doing so:
4 At the preferred filter installation position: Flush via the return valve (1). This
produces a large flow. As a result, the flushing agent also flows through the upper
part of the filter cartridge (11). Pressure regulator approx. 0.15MPa; 1.5bar; 22psi.
4 With a reversed filter installation position: Flush using the spray gun. This is
required in the case of a reversed installation position so that the flushing agent
flows through the filter cartridge (11). Maximize the flow (remove the nozzle, open
the dosing valve if necessary).
