Operating manual Piston pump IceBreaker 40-200 ccm (Finishing)

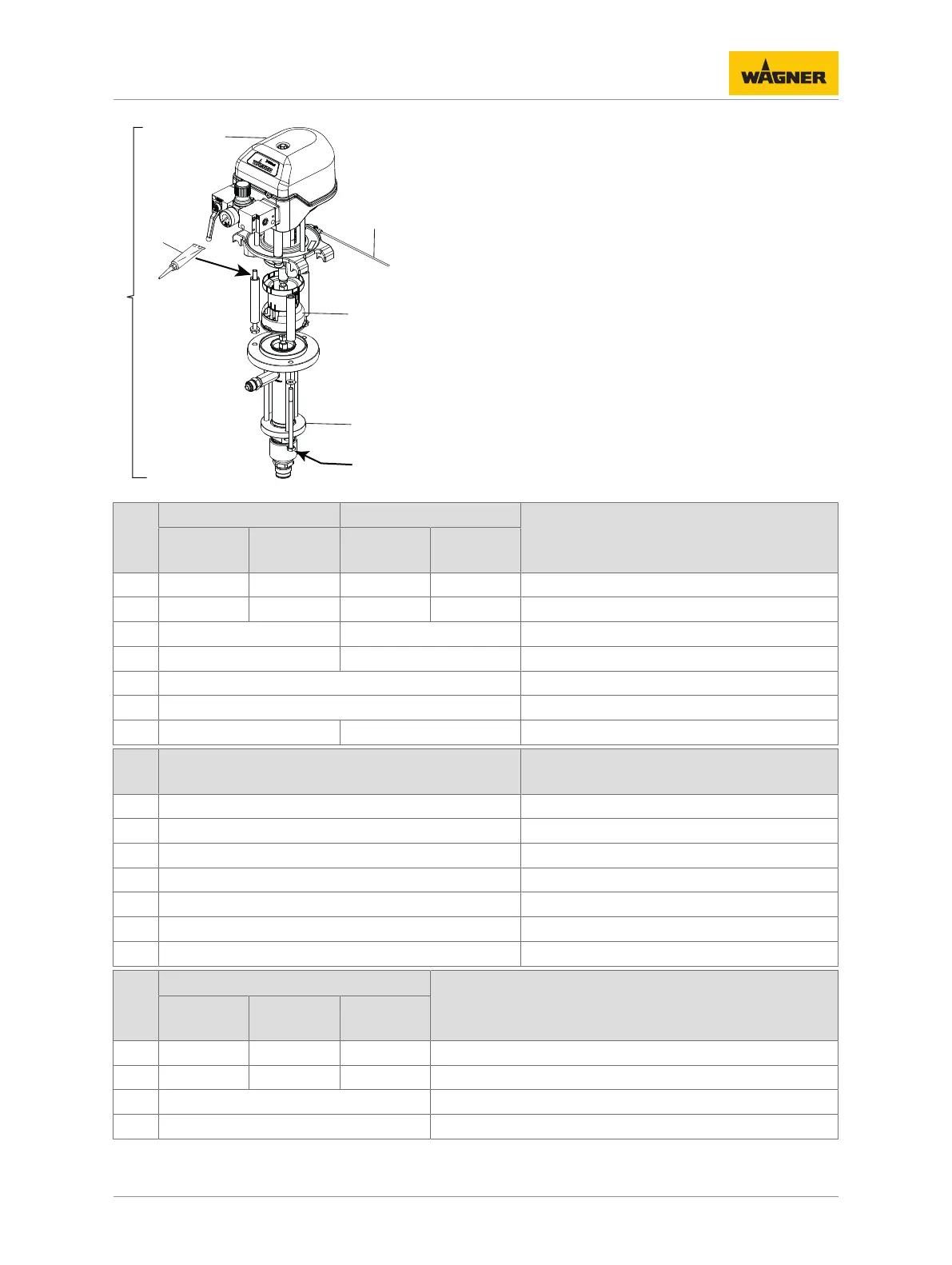

14 Spare Parts
Order number 2333538 | Edition 03/2021 83
B_05154
3
2
10
9
1
4
A
Leopard 35-70
Pos Leopard 35-70 Leopard 35-150 Designation
PE/TG
Order no.
PE/T
Order no.
PE/TG
Order no.
PE/T
Order no.
1 2329479 2329481 2329484 2329486 Piston pump
2 2329645 2329647 2329650 2329652 Fluid section
3 2329621 2329623 Air motor 6/75 and 6/150
4 2350032 2350033 Connection set for air motor - fluid section
9 236219 Grounding cable, complete
10 9992616 Molykote® DX grease
A 25 Nm; 18 lbft 50 Nm; 37 lbft Tightening torque for air motor/fluid section
Pos Leopard 35-70 PE/TG TC 1.4404
Order no.
Designation
1 2366702 Piston pump
2 2366710 Fluid section
3 2329621 Air motor 6/75
4 2350032 Connection set for air motor - fluid section
9 236219 Grounding cable, complete
10 9992616 Molykote® DX grease
A 25 Nm; 18 lbft Tightening torque for air motor/fluid section
Pos Leopard 48-110 Designation
PE/TG
Order no.
PE/T
Order no.
PE/L
Order no.
1 2329490 2329493 2329495 Piston pump
2 2329654 2329656 2329658 Fluid section
3 2329623 Air motor 6/150
4 2350033 Connection set for air motor - fluid section
