Operating manual Piston pump IceBreaker 40-200 ccm (Finishing)
14 Spare Parts
92 Order number 2333538 | Edition 03/2021

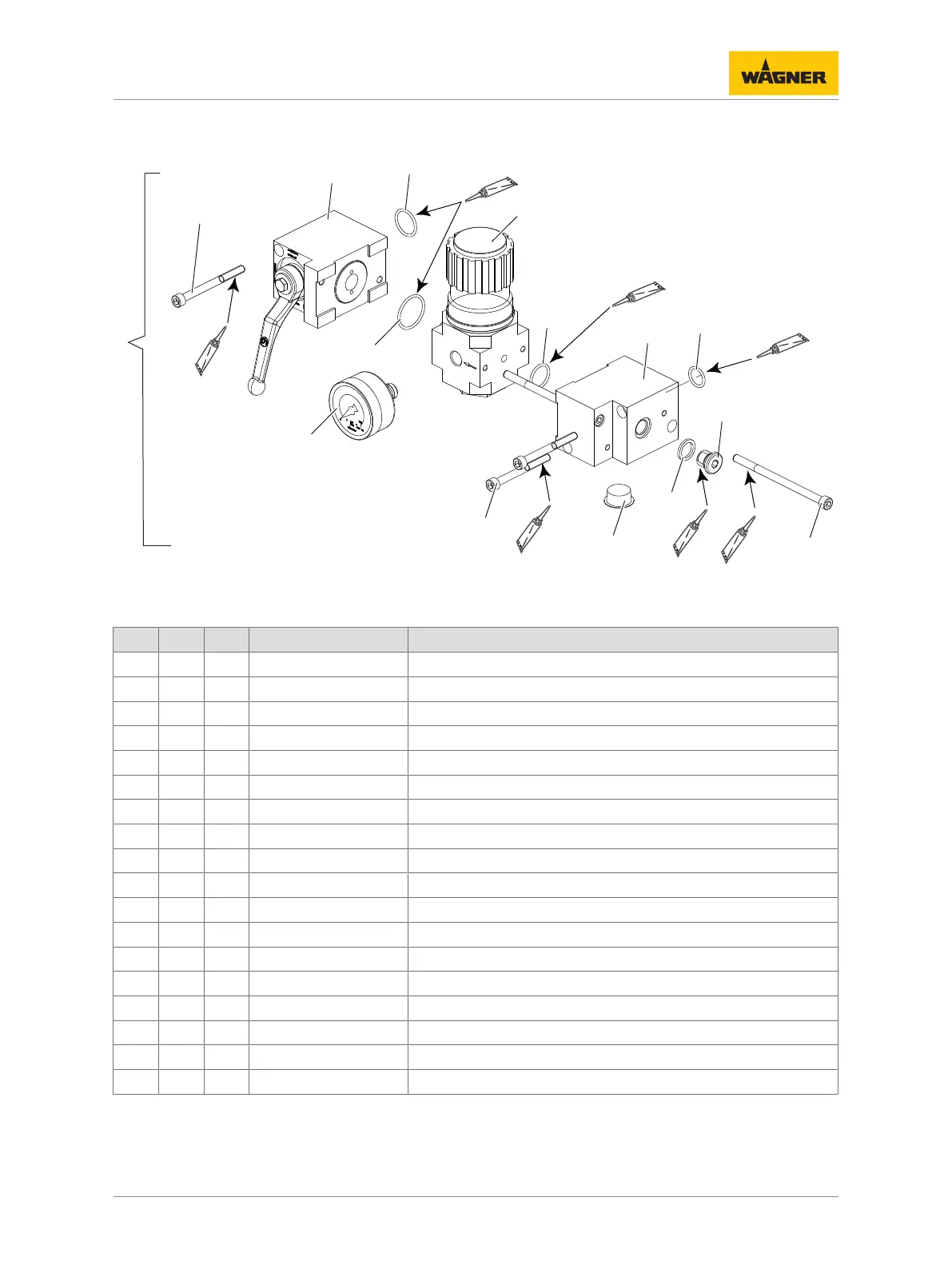

14.4.4 Leopard Air Motor Regulator
B_06963
1
13
17
17
18
18
18
16
17
7
12
11
10
2
9
4
8
5
6
3
15
14
Pos 3: Screw in the pressure gauge until the white sealing ring is completely in the filter
control valve. Thereafter continue turning the pressure gauge only to align the display scale.
Pos K Stk Order no. Designation
1 1 2328607 Pressure regulator unit 6", complete
2 ♦ 1 2309973 Pressure regulator valve 6"
3 ♦ 1 9998725 Pressure gauge 0-10 bar (d50)
4 1 2309783 Distribution piece, 6"
5 2 3050699 Hexagon socket head cap screw
6 2 9907024 Hexagon socket head cap screw
7 2 9906020 Hexagon socket head cap screw
8 ♦ 1 9974166 O-ring
9 ♦ 1 9971018 O-ring
10 ♦ 1 3105540 O-ring
11 ♦ 1 9971137 O-ring
12 ♦ 1 2370107 Edge ball valve, 6“
13 1 9904307 Screw plug
14 1 9990506 Cone plug, GPN 600
15 1 9970154 Sealing ring
16 1 9992831 Loctite® 542
17 1 9992616 Molykote® DX grease
18 1 9998808 Mobilux® EP 2 grease
♦ = wearing parts
