Operating manual Piston pump IceBreaker 40-200 ccm (Finishing)
14 Spare Parts
94 Order number 2333538 | Edition 03/2021

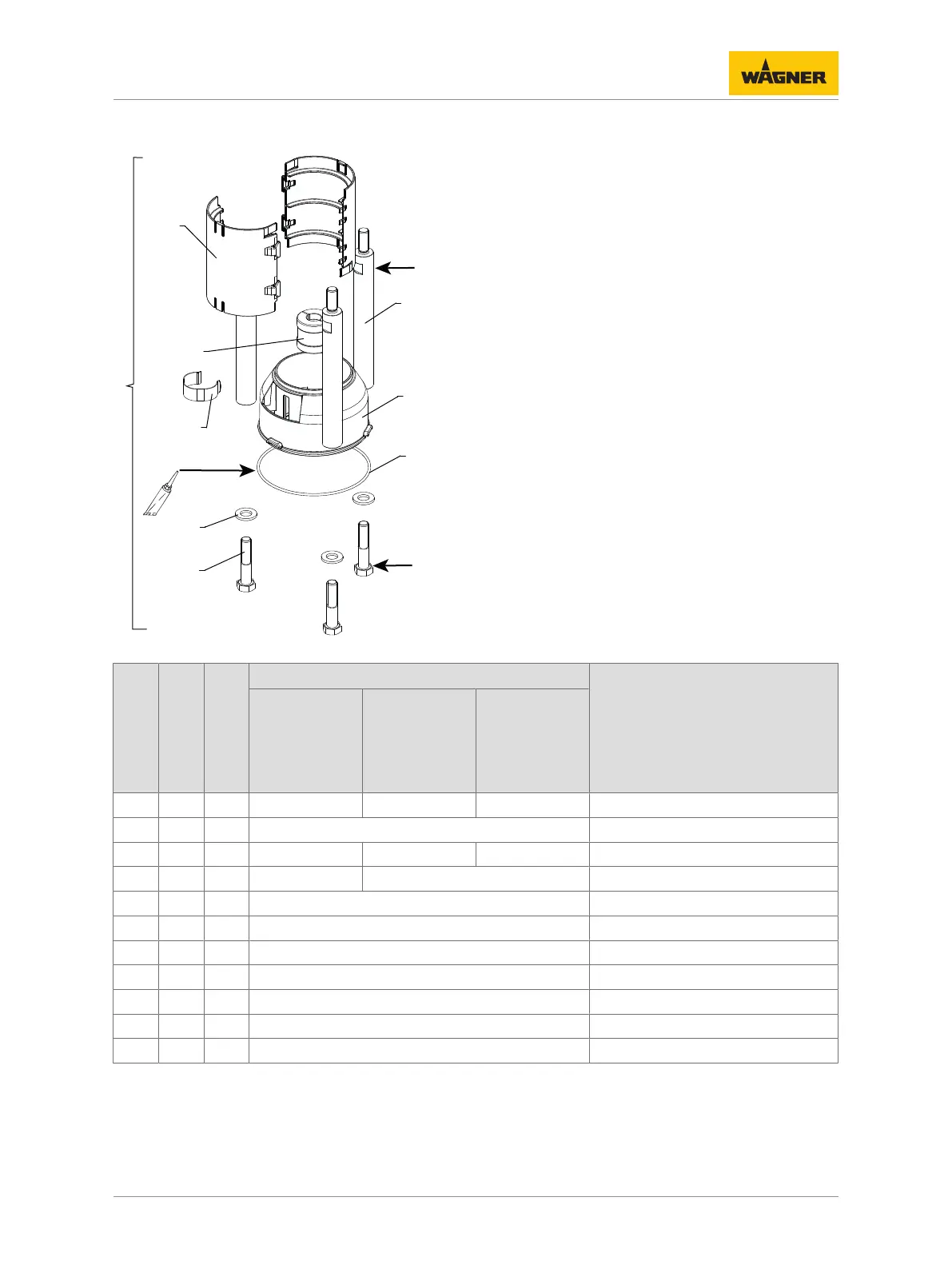

14.5.2 Connection Sets for 110-200 ccm
B_05263
3
2
1
4
5
6
7
8
9
10
A
A
Assembly with air motor and fluid section: see Chapter Overview of the Components [881]
Pos K Stk Order no. Designation
LM-FS 3
Puma 21-110
LM-FS 5
Leopard
35-150
Leopard
48-110
LM-FS 8
Leopard
26-200
1 1 2350031 2350033 2350036 Connection set LM-FS …
2 2 368532 Coupling cover stroke 150
3 1 367579 368529 2337924 Coupling
4 1 367530 368530 Spring
5 3 9920107 Washer, A12, DIN 125-1
6 3 9900157 Hexagon screws
7 ♦ ⋆ 1 9974116 O-ring
8 1 368531 Separating agent cup, stroke 150
9 3 368533 Threaded bolt
10 1 9998808 Mobilux® EP 2 grease
A 50 Nm; 37 lbft Tightening torque for pos. 6 and 9
♦ = wearing parts
⋆ = Included in the service set of the fluid section PE/TG or PE/T or PE/L (see chapter Fluid
Sections [895]).
