WAGNER PEM-X1 CG - Preparing and Connecting the Gun

Operating manual Powder Cup Gun PEM-X1 CG
6 Assembly and Commissioning
24 Order number 2326960 | Edition 10/2022

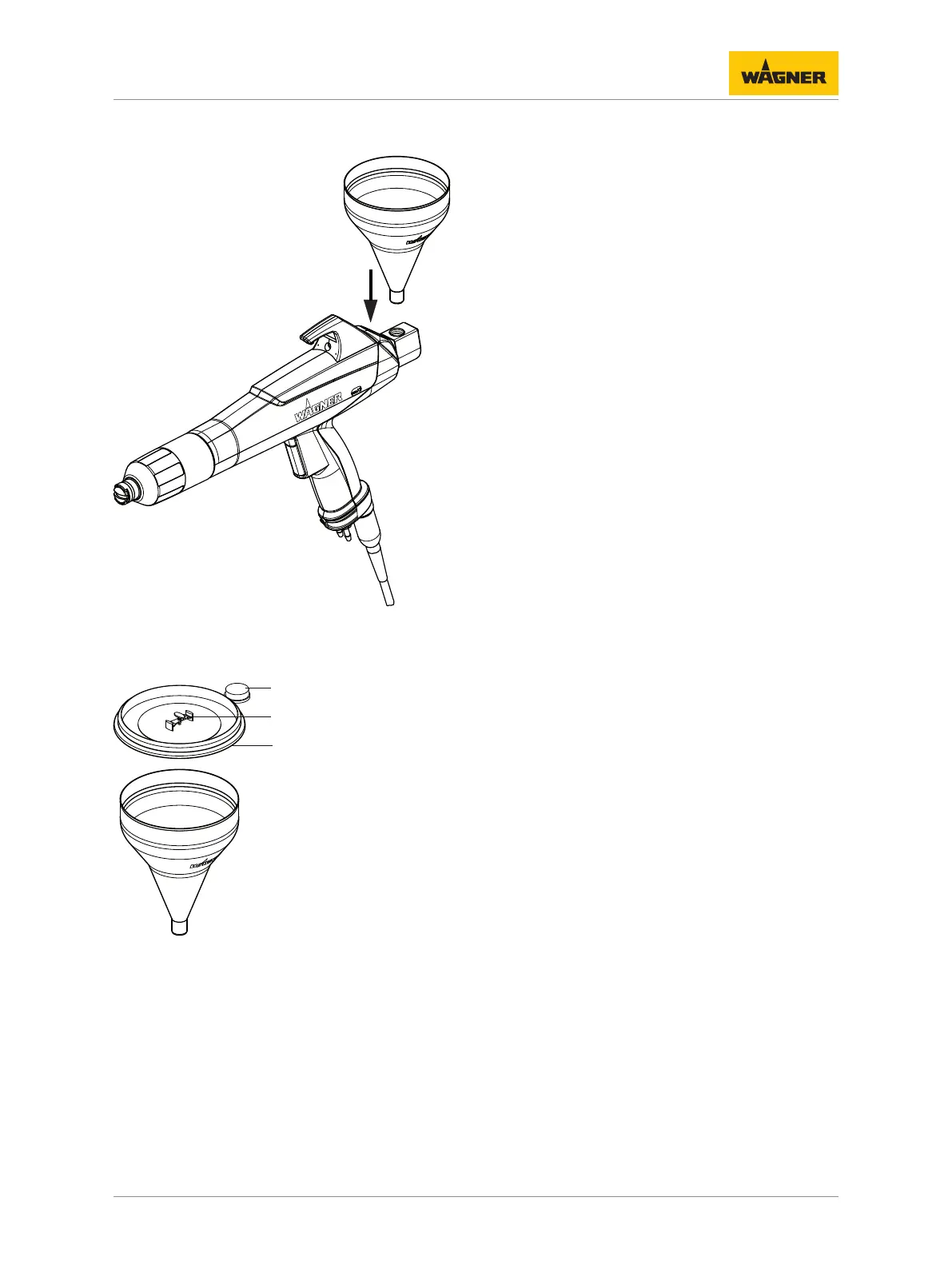

6.6 ASSEMBLING THE POWDER CUP
P_01727
4 Insert powder cup in opening up to stop.
6.7 HOW TO USE THE POWDER CUP
P_05500
2
1
3
Cover 1 is only needed on the gun if the gun is angled such that powder escapes from the
tank.
During coating, the flip-flop latch 2 must be open. It is opened by pulling up the toggle.
For storage purposes, the tank must be closed by fitting cover 1, closing flip flop latch 2 and
attaching small cover 3 at the bottom of the tank.
